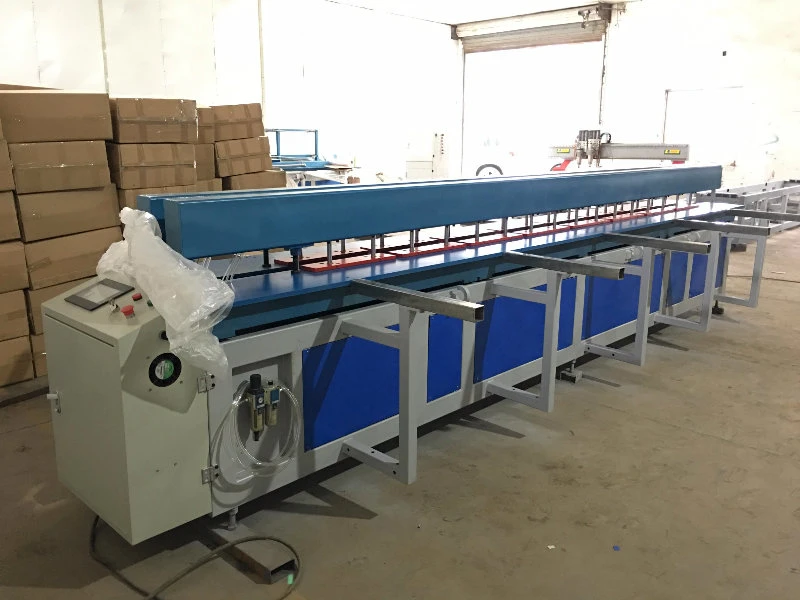

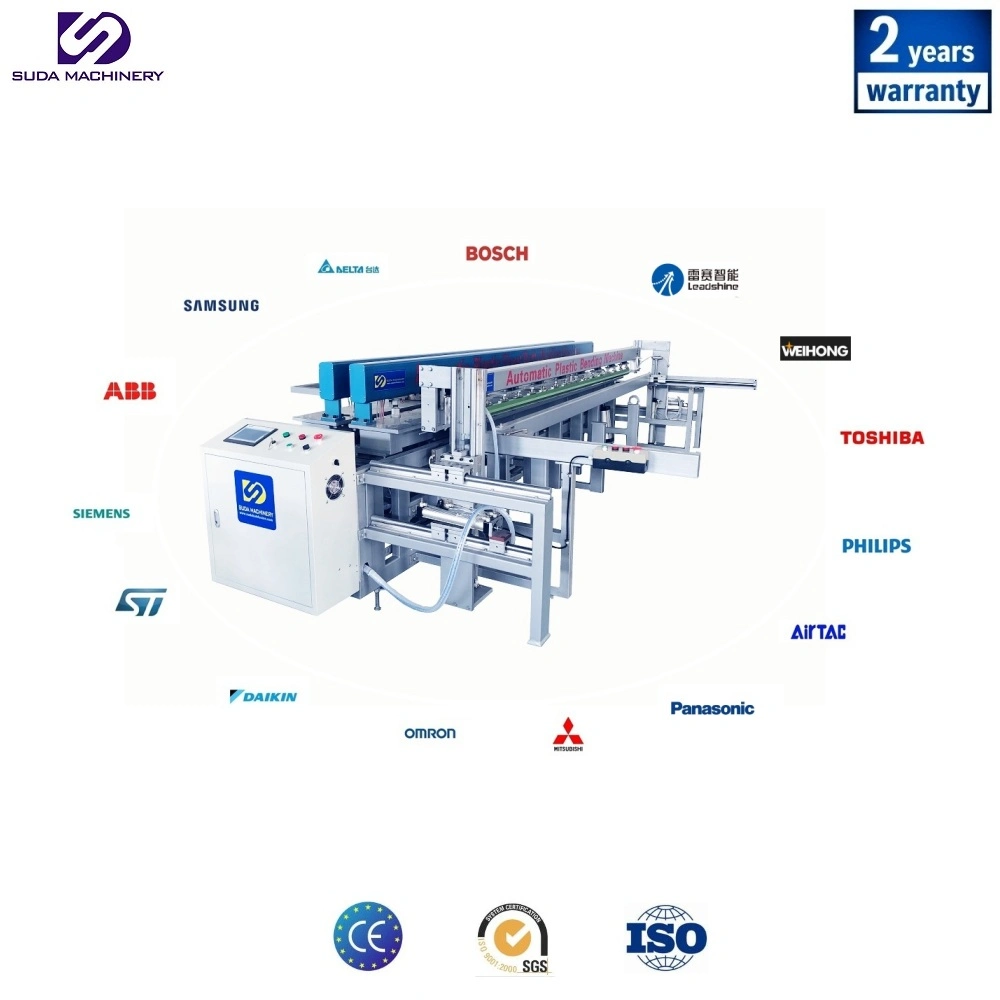

ZW5000 Automatic Plastic sheet bending machine
We can provide you all detail photos of the machine if you are interested.
Some features:
1. PLC touch-panel control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing.
2. Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
3. Sectional heating for models of 3 meter and larger, enabling large models to have the advantage of energy conservation, as same as the small models do, while processing two small workpieces.
4. Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by.
5. Components imported from Japan for control system, with stable properties, lasting and endurable.
Specifications:
| Model | ZW5000 |
| Processing Thickness(mm) | 3-30 |
| Processing Length(mm) | 5000 |
| Range of Bending | 0-145° |
| Pressure of Air Supply(kg.f/cm²) | 6-8 |
| Rated Voltage(v) | 380 |
| Heating Power(KW) | 10 |
| Dimension(mm) | 5600×2320×1800 |
| Applicable Material | PP HDPE PVC PVDF PPH PPN |
The products our machine can make
Our Services
1. Payment terms:
The buyers pay the total amount payment before delivery by T/T
2. Indication of customs tariff No: 851529000
3. Delivery time
The delivery time shall be in 30days after the seller receivesthe payment
4. Packing condition:
To be informed after final packing finished
5. Warranty:
The warranty period is Twelve months after testing successfully in customer's factory, but not exceeds fourteen months after delivery.
FAQ
1.Why choose us?
1)Genuine products with excellent quality and competitive price.
2) Cooperating with the customers all over the world and knowing the markets very well.
3)After-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
2.Why our price very stable and competitive?
1) Our factory have ourselves meltshop, most parts of the body machines from ourselves factory, save the cost.
2) We have some big customers from Southeast Asia Market and Russia Market, every month have the stable machines export, keep our value exports
