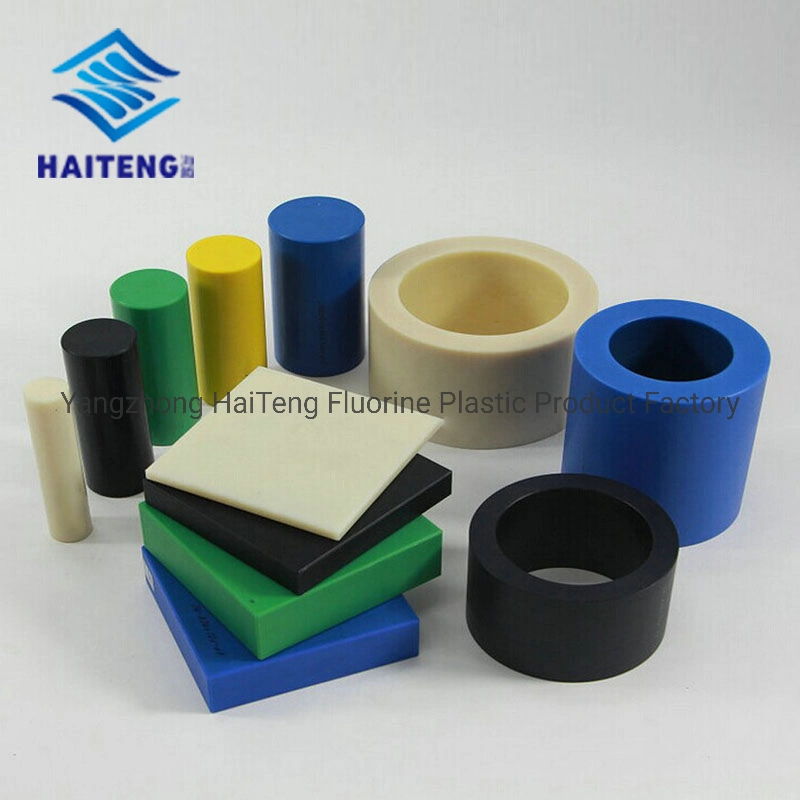

Yellow ploymide sheets mc nylon board casting nylon sheets Solid PA6 Blocks
Mc nylon means monomer casting nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.
Characteristics
-Excellent wear resistance
-Good sliding properties
-High strength and toughness
-Self-lubricating
-Resistant to oil, weak acid and alkali
-Shock absorption
-Noise absorption
-Good electrical properties
Technical Data Sheet
Images
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/54511125cf4e6fee2ba2c2108f48bde5.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/b896bc42b9a835da75ecde28ac5ce49e.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/9f5ac5c05263d663fc9501396123b77a.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/a962b846f4a2c996f38c08b5ce2627ae.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/5bde5bc20e1e94490b8f1f07aea7db8d.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/1e7faed41d0e2546e2f30072501447a1.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/144e82c24ddfeb9b08d6192621a44ae0.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/3e3259e1bad7a6a931e51e1ed31258ac.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/9668bf66e8abfa089db50b2c3634d742.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/f002c998483fdc726e2d1d34ac6a9820.webp)
Industry Applications
Gear/worm/cam
bearing
wheel/pulley/sheave/collar
sleeve/screws/nuts
washer/bushing
High pressure pipeline
storage containers
Oil Tank
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/145e285d951d00d5f4287d9d40a464a1.webp)
Mc nylon means monomer casting nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.
Nylon Rods specifications
Diameter (mm) | 40-500mm |
Length (mm) | 500mm,1000mm, 2000mm |
Name: MC Nylon Polyamide
Colors include: Natural white, black, blue, green, yellow and other colors
Othe Types: rod,tubes,sheets&machine parts
Characteristics
-Excellent wear resistance
-Good sliding properties
-High strength and toughness
-Self-lubricating
-Resistant to oil, weak acid and alkali
-Shock absorption
-Noise absorption
-Good electrical properties
Technical Data Sheet
PROPERTIES | Unit | Value |
I.Physical Properties | ||
Density | g/cm3 | 1.15~1.3 |
Water absorption 24hrs | % | 2.5 |
II.Thermal Properties | ||
Heat deflection temperature - HDT/A | ºC | 95 |
Min. service temperature | ºC | -30 |
Max. service temperature | ºC | 105 |
Thermal conductivity at 23 ºC | W/(K*m) | 0.23 |
Coefficient of linear thermal expansion | 10-4*K-1 | 0.8 |
Flammability Rating(6mm thickness) | - | HB |
III.Mechanical Properties at 23ºC | ||
Tensile strength at yield | MPa | 80 |
Tensile strength at break | Mpa | - |
Elongation at break | % | 3 |
Modulus of elasticity after tensile test | MPa | 3,300 |
Modulus of elasticity after flexural test | MPa | - |
Hardness - Shore D | 84 | |
Charpy impact strength | kJ/m2 | N. B. |
Friction coefficient | 0.36 | |
IV.Electrical Properties at 23ºC | ||
Dielectric constant at 1 MHz | 106Hz | 3.70 |
Dielectric loss factor at 1 MHz | 106Hz | 0.03 |
Volume resistively | Ohm (Ω) * cm | ≥1015 |
Surface resisively | Ohm (Ω) | ≥1013 |
Dielectric strength | kV/mm | 50 |
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m |
Images
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/54511125cf4e6fee2ba2c2108f48bde5.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/b896bc42b9a835da75ecde28ac5ce49e.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/9f5ac5c05263d663fc9501396123b77a.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/a962b846f4a2c996f38c08b5ce2627ae.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/5bde5bc20e1e94490b8f1f07aea7db8d.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/1e7faed41d0e2546e2f30072501447a1.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/144e82c24ddfeb9b08d6192621a44ae0.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/3e3259e1bad7a6a931e51e1ed31258ac.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/9668bf66e8abfa089db50b2c3634d742.webp)
![Yellow Ploymide Sheets Mc Nylon Board Casting Nylon Sheets Solid PA6 Blocks](https://img3.grofrom.com/boyu/f002c998483fdc726e2d1d34ac6a9820.webp)
Industry Applications
Gear/worm/cam
bearing
wheel/pulley/sheave/collar
sleeve/screws/nuts
washer/bushing
High pressure pipeline
storage containers
Oil Tank
