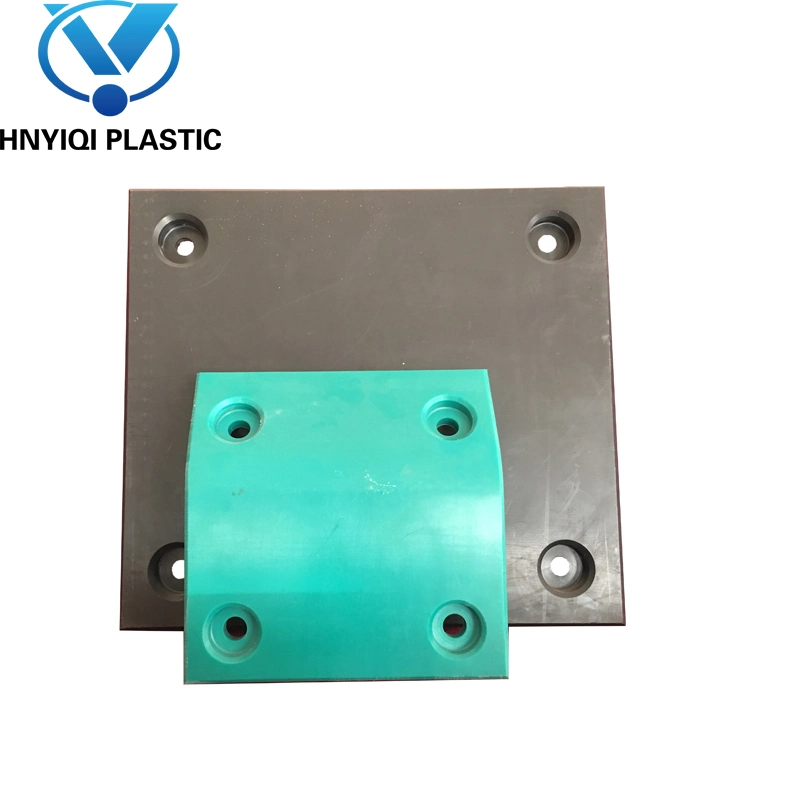

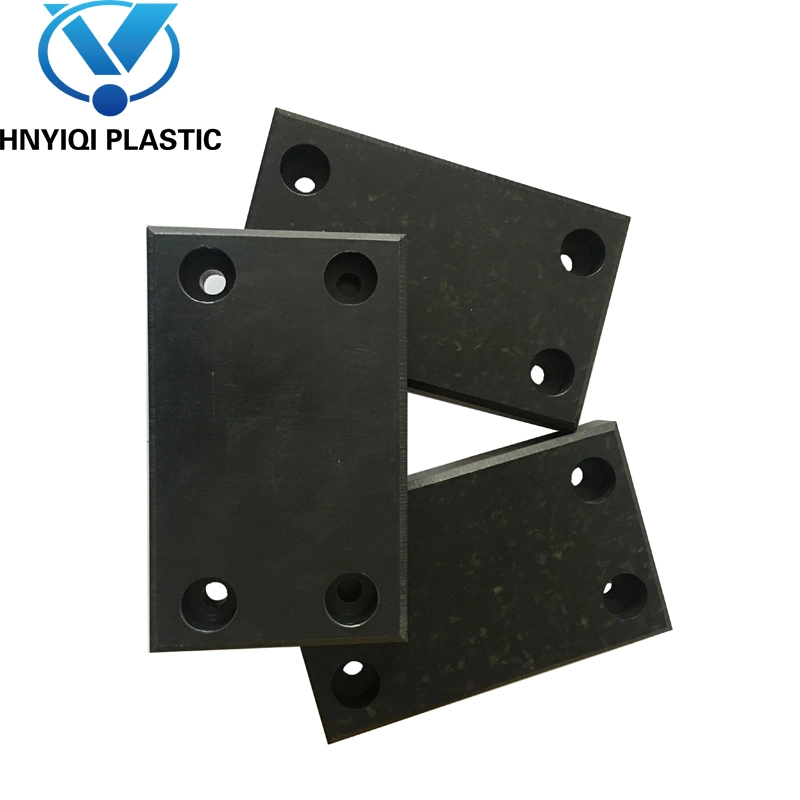

Wear resistant uhmwpe plastic sheet marine fender face pad
HDPE Fender Facing Pad has wide application in waterway, harbor or dock. HDPE Fender Facing Pad does not rot as the wood,or rust as the steel so that it perform much better.
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/e685eb0519b180e589e73b0ef3883c05.webp)
Main Characters of Marine Fender Facing Pad
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption& Vibration-absorption
Main Performances of HDPE Fender Facing Pad
UV resistance, suit to use in outside
High impact resistance, protect the harbor and dock
Excellent abrasion resistance
Low friction coefficient
Waterproof, durable
Working temperature rang from -40ºC to 85ºC
Cheaper than UHMWPE fender facing pad
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/7d6ea0397e4157859321771a6fa1f2d1.webp)
UHMWPE Fender Facing Board
UHMWPE(Ultra-high Molecular Weight Polythene) fender facing board is harder than HDPE Fender Facing Board. If the port handling capacity is huge, we recommend to choose UHMWPE fender facing board. Compared with HDPE fender facing board, UHMWPE fender facing board is much more stiff and its working temperature rang from -269ºC to 85ºC.
Advantages of UHMWPE Fender Facing Board
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption & Vibration-absorption
Company Profile of Henan Yiqi Plastic
Quality-oriented, Customer supreme & Service Paramount.
Henan Yiqi Plastic is engaged in manufacturing and selling plastic items over 15 years even nearly 20 years. Our main products are HDPE sheet, PE sheet, PP sheet, UHMWPE sheet, plastic cutting board, fender facing pad, synthetic ice rink, temporary road mat and other plastic parts. Manufacturing technique includes extrusion, injection and mould pressing, also undertaking welding, CNC carving such post processing and so on.
Henan Yiqi Plastic Products Co., Ltd's new office is located in Zhengzhou, the capital of Henan province. Technology R&D team keeps pursuing innovation and enriching product performance, greatly enlarging the application of our products.
Henan Yiqi Plastic's products have been exported to Europ, Australia, North America, Southeast Asia, South America and other regions. Henan Yiqi Plastic look forward to going farther with you together.
Certificate of UHMWPE fender pad
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/7be6a1a3e26986970ad97a1690a375b7.webp)
Package of UHMWPE fender pad
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/d252452308b1216336d560204e822927.webp)
HDPE Fender Facing Pad has wide application in waterway, harbor or dock. HDPE Fender Facing Pad does not rot as the wood,or rust as the steel so that it perform much better.
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/e685eb0519b180e589e73b0ef3883c05.webp)
Main Characters of Marine Fender Facing Pad
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption& Vibration-absorption
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 38 |
Shore D hardness | -- | 63-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.2 |
Kinetic Friction Coefficient | -- | ≤0.15 |
Water Absorption | -- | <0.01 |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melting Temperature | °C | 130-140 |
Wear Resistance of marine fender facing pad | |||||||
Materials | UHMWPE | PA6 | PA66 | PTFE | POM | HDPE | Brass |
Index No. For slurry abrasion | 1 | 4 | 5 | 5 | 6 | 10 | 27 |
Impact Absorption of marine fender facing pad | ||||||
Materials | UHMWPE | HDPE | PC | ABS | PA66 | POM |
Impact | ≥140 | 27 | 60~100 | 20~60 | 60~90 | 20 |
Self-lubricating of marine fender facing pad | |||
Materials | Dynamic Friction Coefficient | ||
Lubrication Free | Water Lubrication | Oil Lubrication | |
UHMWPE | 0.07~0.22 | 0.05~0.10 | 0.05~0.08 |
PA66 | 0.15~0.40 | 0.14~0.19 | 0.06~0.11 |
POM | 0.15~0.35 | 0.10~0.20 | 0.05~0.10 |
PTFE | 0.04~0.25 | 0.04~0.08 | 0.04~0.08 |
Main Performances of HDPE Fender Facing Pad
UV resistance, suit to use in outside
High impact resistance, protect the harbor and dock
Excellent abrasion resistance
Low friction coefficient
Waterproof, durable
Working temperature rang from -40ºC to 85ºC
Cheaper than UHMWPE fender facing pad
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/7d6ea0397e4157859321771a6fa1f2d1.webp)
UHMWPE Fender Facing Board
UHMWPE(Ultra-high Molecular Weight Polythene) fender facing board is harder than HDPE Fender Facing Board. If the port handling capacity is huge, we recommend to choose UHMWPE fender facing board. Compared with HDPE fender facing board, UHMWPE fender facing board is much more stiff and its working temperature rang from -269ºC to 85ºC.
Advantages of UHMWPE Fender Facing Board
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good Corrosion & Chemical resistance
Noise-absorption & Vibration-absorption
Company Profile of Henan Yiqi Plastic
Quality-oriented, Customer supreme & Service Paramount.
Henan Yiqi Plastic is engaged in manufacturing and selling plastic items over 15 years even nearly 20 years. Our main products are HDPE sheet, PE sheet, PP sheet, UHMWPE sheet, plastic cutting board, fender facing pad, synthetic ice rink, temporary road mat and other plastic parts. Manufacturing technique includes extrusion, injection and mould pressing, also undertaking welding, CNC carving such post processing and so on.
Henan Yiqi Plastic Products Co., Ltd's new office is located in Zhengzhou, the capital of Henan province. Technology R&D team keeps pursuing innovation and enriching product performance, greatly enlarging the application of our products.
Henan Yiqi Plastic's products have been exported to Europ, Australia, North America, Southeast Asia, South America and other regions. Henan Yiqi Plastic look forward to going farther with you together.
Certificate of UHMWPE fender pad
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/7be6a1a3e26986970ad97a1690a375b7.webp)
Package of UHMWPE fender pad
![Wear Resistant UHMWPE Plastic Sheet Marine Fender Face Pad](https://img3.grofrom.com/boyu/d252452308b1216336d560204e822927.webp)
