3300W/2200W Cutting Machine For Cutting 12mm SS Sheet/22mm CS Sheet
Description :

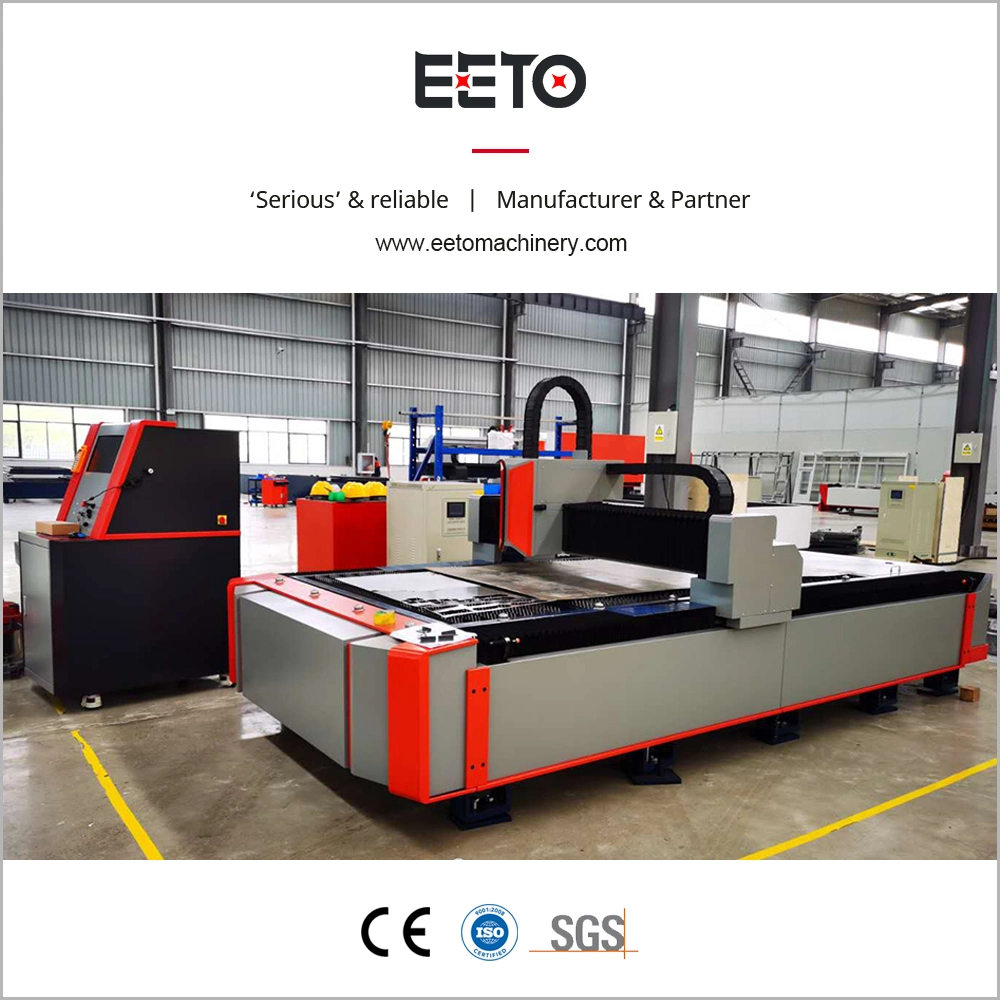

EETO-FLS3015 Series has two version,intergrated and seperated machines. Intergrated version is more saving space than seperated version.
EETO-FLS3015 Series intergrated and seperated machines adopted the same equipments, famous brand IPG and Raycus laser generator, a high quality light beam. Opened gantry structure, convenient to monitoring and loader/unloader matellica sheets. Carbon steel cast iron bed, 1.2 Ton capable of bearing a structural load. Japanese and Switzerland famous brand Yaskawa AC Servo Motor and Raytools laser head, guaranteed a high cutting accuracy and a fast cutting speed, cutting tolerance in 0.01mm.
Main Parts :
Techinical Configurations :
Application :
EETO-FLS3015 Series is applicated in large of cutting processing industries, mainly used in cutting matellic sheets, like cs sheet, ss sheet, alu plate, galvanized sheet,etc. Thickness range from 0.5mm to 24mm.
Cutting Samples :
Packing :
After-Sale Services :
1), Warranty : 2 years for laser source, 1 year whole machine
2), Technical Traning : 2 weeks free training class : vedio technical training, face to face techinicasl training
3), Installation : local free installation
4), 24 hours online support, 2 working hours respons
Delivery :
FAQ :
Q: What's working area of our fiber laser cutting machine?
A: Our standard size: 3000*1500mm, also there are 4000*1500mm, 4000*2000mm, and 6000*2000mm for option.
Q: What's the laser power of your fiber laser cutting machine?
A: We have laser power from 300-4000w, able to different metals with varied thickness
1. Low power 300W, 500W, 700W, 750W, 1000W, which cut metals lower than 10mm
2. Medium power 1500W, 2000W, able to cut steels up to 16mm
3. High power 3000W and 4000W, extending cutting capability to 25mm
Q: What materials can we cut? What's cutting thickness of fiber laser cutting machine?
A: Fiber laser cutting machine can cut metal materials, including carbon steel/stainless steel/aluminum/galvanized sheet, but high reflective materials are restricted to be cut with fiber fiber, like brass/silver/bronze, if you have such material to cut, please connect us for professional advice
B: Cutting thickness from 0.5mm to 25mm according to different laser power.
Q: In case that machine has problem when customer use it, how to do after-sales service?
A: Two years warranty are guaranteed(Consumables are excluded) . Any problem occurs during warranty, you can connect us ASAP, we provide 24 hour on-line service, professional engineers are available at your service, if parts are needed for replacement, they will be sent out free-of-charge by express to ensure highest efficiency
Q: What are consumables of fiber laser cutting machine?
A: 1. Protection lens 2. cutting nozzle inexpensive and just a few parts, which makes maintenance very simple(nearly zero maintenance) with extremely low maintenance cost.
Description :
EETO-FLS3015 Series has two version,intergrated and seperated machines. Intergrated version is more saving space than seperated version.
EETO-FLS3015 Series intergrated and seperated machines adopted the same equipments, famous brand IPG and Raycus laser generator, a high quality light beam. Opened gantry structure, convenient to monitoring and loader/unloader matellica sheets. Carbon steel cast iron bed, 1.2 Ton capable of bearing a structural load. Japanese and Switzerland famous brand Yaskawa AC Servo Motor and Raytools laser head, guaranteed a high cutting accuracy and a fast cutting speed, cutting tolerance in 0.01mm.
Main Parts :
Techinical Configurations :
| Art | Content | Brand |
| MODEL | FLS3015 Series | EETO,China |
| STRUCTURE | Gantry | |
| LASER POWER | 3300W | Raycus, China |
| CUTTING AREA | 3000*1500mm | |
| LASER HEAD | BHM111 | Raytools, Switzerland |
| MAX CUTTING THICKNESS | 22mm CS, 10mm SS, 6mm Alu, 6mm Brass, 3mm Red Copper | |
| HEIGHT CONTROLL | BCS110 | Bochu, China |
| CNC SOFTWARE | Cypcut | |
| SERVO AND MOTOR | AC Servo and Motor | Yaskawa, Japan |
| WATER CHILLER | Standard | Tongfei, China |
| INDUSTRIAL COMPUTER | Win 7/ 32 Bit | Bochu, China |
| VOLTAGE REGULATOR | 60 KVA | Fato, China |
Application :
EETO-FLS3015 Series is applicated in large of cutting processing industries, mainly used in cutting matellic sheets, like cs sheet, ss sheet, alu plate, galvanized sheet,etc. Thickness range from 0.5mm to 24mm.
Cutting Samples :
Packing :
After-Sale Services :
1), Warranty : 2 years for laser source, 1 year whole machine
2), Technical Traning : 2 weeks free training class : vedio technical training, face to face techinicasl training
3), Installation : local free installation
4), 24 hours online support, 2 working hours respons
Delivery :
FAQ :
Q: What's working area of our fiber laser cutting machine?
A: Our standard size: 3000*1500mm, also there are 4000*1500mm, 4000*2000mm, and 6000*2000mm for option.
Q: What's the laser power of your fiber laser cutting machine?
A: We have laser power from 300-4000w, able to different metals with varied thickness
1. Low power 300W, 500W, 700W, 750W, 1000W, which cut metals lower than 10mm
2. Medium power 1500W, 2000W, able to cut steels up to 16mm
3. High power 3000W and 4000W, extending cutting capability to 25mm
Q: What materials can we cut? What's cutting thickness of fiber laser cutting machine?
A: Fiber laser cutting machine can cut metal materials, including carbon steel/stainless steel/aluminum/galvanized sheet, but high reflective materials are restricted to be cut with fiber fiber, like brass/silver/bronze, if you have such material to cut, please connect us for professional advice
B: Cutting thickness from 0.5mm to 25mm according to different laser power.
Q: In case that machine has problem when customer use it, how to do after-sales service?
A: Two years warranty are guaranteed(Consumables are excluded) . Any problem occurs during warranty, you can connect us ASAP, we provide 24 hour on-line service, professional engineers are available at your service, if parts are needed for replacement, they will be sent out free-of-charge by express to ensure highest efficiency
Q: What are consumables of fiber laser cutting machine?
A: 1. Protection lens 2. cutting nozzle inexpensive and just a few parts, which makes maintenance very simple(nearly zero maintenance) with extremely low maintenance cost.
