Brief Introduction

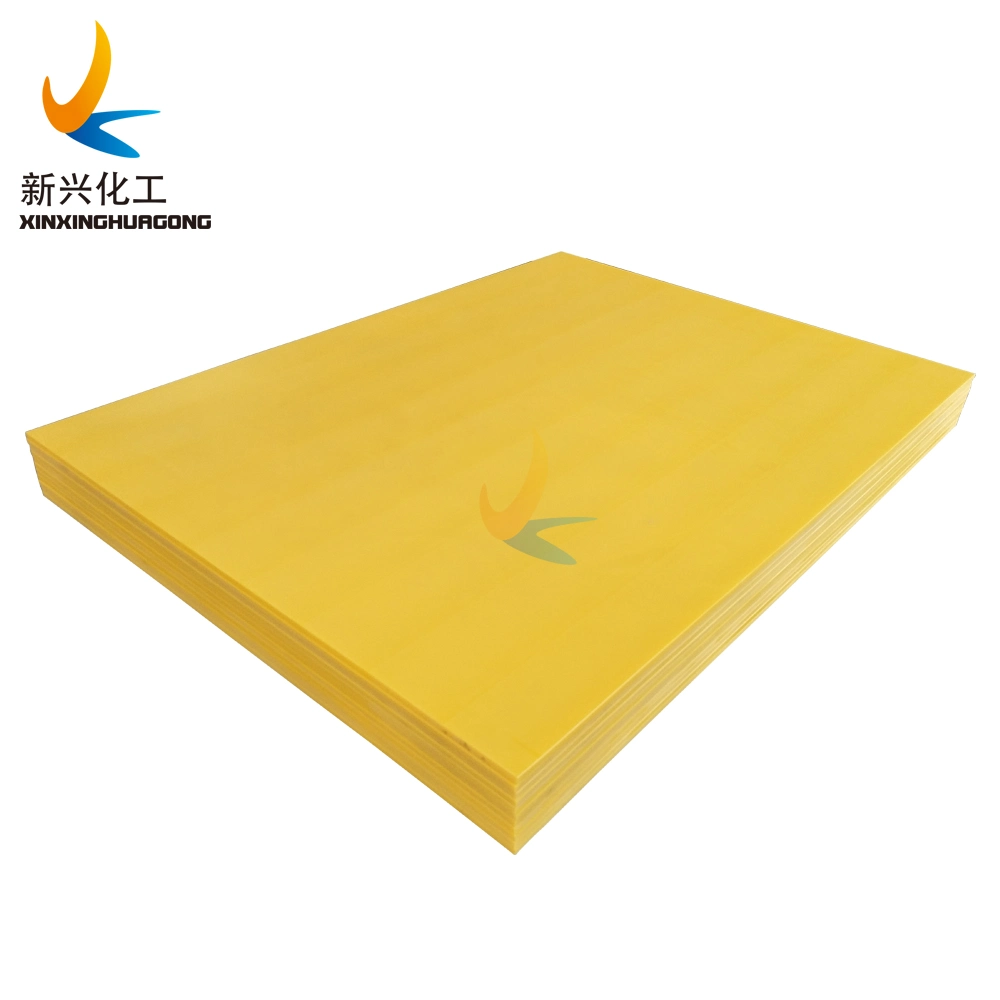

UHMWPE sheet has outstanding abrasion resistance and an extremely low coefficient of friction.
In especial, the impact strength is extremely high and chemical resistance is excellent.
Since its excellent properties in both physical and chemical, it has been used widely in many industrial applications.
Ultra High Molecular Weight Polyethylene is an extremely high abrasion resistant material.
UHMWPE(Ultrahigh molecular weight polyethylene) is a thermoplastic engineering material with high molecular weight and excellent performance.
On the whole, it almost focused on the advantages of all kinds of plastic, which has incomparable wear resistance, impact resistance, self-lubrication, corrosion resistance, low temperature resistance, sanitary nontaxicity, extremely high smoothness and low water absorption.
In fact, there is no single polymer material has so many excellent properties like UHMWPE material.
HDPE, the full name is high density polyethylene. The higher density improves its tensile strength ,surface hardness and heat deflection temperature.
High Density Molecular Weight HDPE Sheet is widely used because of its good impact resistance, nice chemical resistance, low water absorption and good resistance to UV.
Merits and Properties
*High-wear resistance, seven times wear resistance than steel, four times than PTFE
*High anti-impact resistance, two times impact resistance than PC, five times than ABS.
*Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
*Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
*High-inadhesion resistance, the surface of product hardly affixes other materials.
*High-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
*Good low temperature resistance, in liquefied nitrogen (- 196ºC), it still has the prolongation. In fact, few other materials can reach to this performance.
*Non-toxic and clean property, UHMW-PE material that made by Shandong Xinxing Chemical Company, which meets the FDA (Food and Drug Administration) and ASDA (United States Department of Agriculture) permit to apply in food and medicine fields.
Applications:
UHMWPE/HDPE Sheet for Chute, Hopper and Truck Bed Liners
UHMWPE/HDPE Sheet for Wear Strips and Guide Rails
UHMWPE/HDPE Sheet for Star Wheels, Sprockets and Conveyor Tracks
UHMWPE/HDPE Sheet for Bumpers and Marine Dock Fenders
UHMWPE/HDPE Sheet for Bushings, Bearings and Rollers
UHMWPE/HDPE Sheet for Jig Stock
Specification
Virgin Chemical Resistant PE 1000 UHMWPE Plastic Sheets Properties
Item | Test method | Unit | UHMWPE 1000-V | UHMWPE 1000-DS |
| Density | ISO1183-1 | g/cm3 | 0.93-0.95 | 0.95-0.96 |
| Yield Strength | ASTM D-638 | N/mm2 | 15-22 | 15-22 |
| Breaking Elongation | ISO527 | % | >200% | >100% |
| Impact strength | ISO179 | Kj/m2 | 130-170 | 90-130 |
| Abrasion | ISO15527 | Steel=100 | 80-110 | 110-130 |
| Shore Hardness | ISO 868 | Shore D | 63-64 | 63-67 |
| Friction Coefficient (Static state) | ASTM D-1894 | Unitless | <0.2 | <0.2 |
| Operating temperature | - | ºC | -80 to +80 | -80 to +80 |
| SIZES |
| 2000x1000x(6-300)mm | 3050x3050x(6-300)mm |
| 5040x1330x(6-300)mm | 4730x1230x(6-300)mm |
| 3050x1220x(6-300)mm | 6050x1820x(6-300)mm |
| 3030x1550x(6-300)mm | 4520x2000x(6-300)mm |
Any size within the standard size is available.
About Shandong Ningjin Xinxing Chemical Co.,Ltd.
With the excellent experience of many years in manufacturing engineering plastics, Xinxing was established in 1989. Now, it becomes the largest and most professional manufacturer of Engineer plastics such as UHMWPE Sheets, ground protection mats, crane outrigger pads, UHMWPE fender pads, wear-resisting liners, HDPE Sheets and parts, PP sheets and parts and other engineer plastics.
Our factory covers an area of 36000 square meters which has 7 big workshops for different products and application. Xinxing is the only manufacturer that produces both extruded and pressed plastic products in China and represents the most advanced productive forces and highest quality.
Our products are widely exported to many countries all over the world such as Indonesia, Malaysia, Korea, Japan, Russia, Germany, India, England, Italy, South America, Canada, Chile, etc.
Our management creed is "Quality first, Customer first, Keeping improving". We are willing to establish a wide and continuous cooperation with enterprises home and abroad. We sincerely hope to establish business relations with you.
We sincerely look forward to establishing business relationship with you. Please contact me if you have any other questions. I would like to help you in time.
