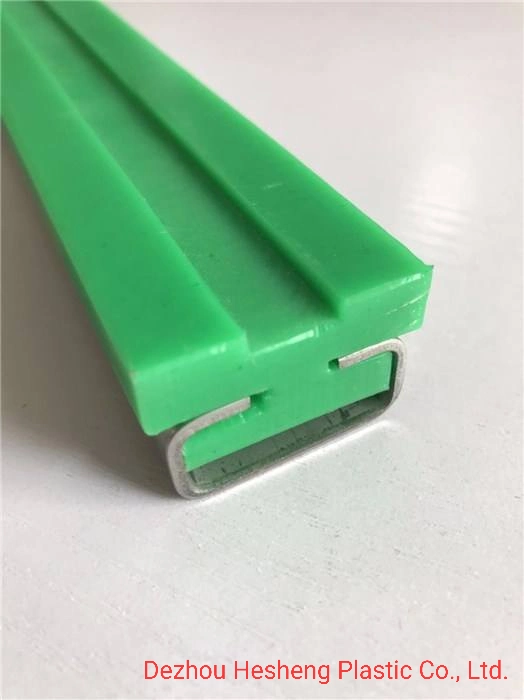

ROLLER CHAIN GUIDE
Since the invention of ANSI and ISO roller chains in the early 19th century the industrial power transmission community have been using chain guides to extend the life and performance of their chains. The earliest type of guides were called roller chain guide strips or roller chain guide rail, these were just simply strips of plastic put in place for the chain to run on. Though the terms have stayed relatively the same, since then roller chain guides have been perfected for each chain size and material type. HeSheng Roller Chain offers a complete line of high-quality roller chain guides and guide rails. Using a roller chain guide is recommended in applications where the chain is dragging or conveying across a surface. All of our roller chain guides are manufactured using high quality UHMW material and are precision machined for easier installation.
ROLLER CHAIN GUIDE IMPORTANCE
Why is having a good roller chain guide so important? Well it mainly depends on chain wear. Did you know that if a roller chains side plates get worn down by just 5% you have lost a great deal of chain strength and integrity! Using the proper chain guide will prevent this from happening thus keeping you up and running safely for a longer period of time. Downtime is a major factor when calculating a cost saving analysis or cost benefit analysis report, so using a roller chain guide often more than pays for its self not only with extending the chain life but with reducing down-time.
Product Advantages
Self-lubricating.
Good Abrasion&wear resistance (15 times more resistant to abrasion than carbon steel).
Corrosion & impact resistant.
low temperature resistant.
Non-water absorption
Easy to install
property: | Test Method (Standard) | Ticona GUI4152 | Ticona GUI4150,4120 | Unit |
Molecular weight |
| 1.5million-4million | 1.5million-8million |
|
Density | ISO 1183-1:2012/DIN53479 | 0.92-0.98 | 0.93-0.98 | g/cm³ |
Compression strength | ISO 604:2002 | ≥30 | ≥32 | Mpa |
Tensile strength | ISO527-2:2012 | ≥20 | ≥22 | Mpa |
Elongation at break | ISO527-2:2012 | ≥280 | ≥300 | % |
Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 |
|
Notched impact strength (Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | ≥100 | kJ/m2 |
Abrasion wear index | ES-X60210-2008 | ≤30 | ≤30 | mg |
Vicat softing point | ISO306:2004 | ≥80 | ≥80 | °C |
Hardness shore-D | ISO 868:2003 | 60-65 | 61-66 | D |
