Company Information
Tianjin Beyond Technology Developing Co., Ltd is a comprehensive enterprise which focus on production, development and sale of engineering plastics, rubber and multiply non-metallic products since 2015
We have established a good reputation and built long-term& stable cooperation relationship with many domestic companies and gradually step out to cooperate with abroad companies in southeast Asia, the Middle East, North America, South America, Europe and other regions.
Our main products: Ultra high molecular weight polyethylene, MC nylon, PA6, POM, HDPE, PP,PU, PC, PVC, ABS, ACRYLIC,PTFE, PEEK, PPS,PVDF.

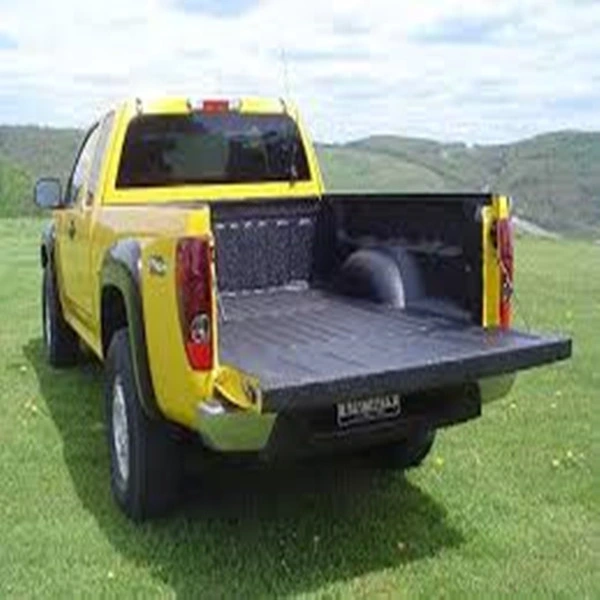

Truck bed UHMWPE liner
It have excellent wear resistance, low temperature impact resistance, selflubricating, nontoxic, water resistance, chemical resistance, and heat resistant, they are superior to general PE. It can be widely used to impact resistance, wearresistant, corrosionresistant, nonsticking, reduce noise, and high hygiene requirements of industrial mining field. It can greatly reduce operatingcosts of the equipment and maintenance, at the same time improve overall economic benefits.
UHMWPE Regular Size
1000mm * 1000mm * (1-300)mm
1220mm * 1220mm * (1-300)mm
2000mm * 1000mm * (1-300)mm
2440mm * 1220mm * (1-300)mm
1240mm * 4040mm * (1-300)mm
2020mm * 3030mm * (1-300)mm
UHMWPE Product Show
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/68120b878d2f83abb975b4ee87de7ea6.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/e0e4b95ec014f58ea70b319de0c7210a.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/342c7ed1e35217c7b12ea7e3d3f89edc.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/6e0ea5f97076c798381c95b426f641d1.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/7be62052637fe452bb395de379bb1340.webp)
UHMWPE Property Test
UHMWPE Advantages
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Cost efficient; Resulting in low energy consumption
UHMWPE liner sheet Application
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
FAQ
1.Q: Are you trading company or manufacturer ?
A:We have our own factory.
2. Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock,
3.Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Q:What is your terms of payment ?
A:Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance ,70% T/T before shippment.
5.Q: What about the MOQ?
A:MOQ is 500 KG
Tianjin Beyond Technology Developing Co., Ltd is a comprehensive enterprise which focus on production, development and sale of engineering plastics, rubber and multiply non-metallic products since 2015
We have established a good reputation and built long-term& stable cooperation relationship with many domestic companies and gradually step out to cooperate with abroad companies in southeast Asia, the Middle East, North America, South America, Europe and other regions.
Our main products: Ultra high molecular weight polyethylene, MC nylon, PA6, POM, HDPE, PP,PU, PC, PVC, ABS, ACRYLIC,PTFE, PEEK, PPS,PVDF.
Truck bed UHMWPE liner
It have excellent wear resistance, low temperature impact resistance, selflubricating, nontoxic, water resistance, chemical resistance, and heat resistant, they are superior to general PE. It can be widely used to impact resistance, wearresistant, corrosionresistant, nonsticking, reduce noise, and high hygiene requirements of industrial mining field. It can greatly reduce operatingcosts of the equipment and maintenance, at the same time improve overall economic benefits.
UHMWPE Regular Size
1000mm * 1000mm * (1-300)mm
1220mm * 1220mm * (1-300)mm
2000mm * 1000mm * (1-300)mm
2440mm * 1220mm * (1-300)mm
1240mm * 4040mm * (1-300)mm
2020mm * 3030mm * (1-300)mm
UHMWPE Product Show
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/68120b878d2f83abb975b4ee87de7ea6.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/e0e4b95ec014f58ea70b319de0c7210a.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/342c7ed1e35217c7b12ea7e3d3f89edc.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/6e0ea5f97076c798381c95b426f641d1.webp)
![UHMWPE Coal Liner Truck Liner HDPE Material Sheet](https://img3.grofrom.com/boyu/7be62052637fe452bb395de379bb1340.webp)
UHMWPE Property Test
No. | test item | Test Method | Test Rusult | Units | Item conclusion |
UPES-1 | Denisty | ASTM D-792 | 0.98 | kg/ m2 | qualified |
UPES-1 | Yield strength | ASTM D-638 | 22 | MPa | qualified |
UPES-1 | Ultimate strength | ASTM D-638 | 45 | MPa | qualified |
UPES-1 | Tensil elongation breake | ASTM D-638 | 290 | % | qualified |
UPES-1 | Strength | ASTM D-4020 | 720 | KJ/mm2 | qualified |
UPES-1 | Wear-resisting | ASTM G-65 | 90 | Steel=100 | qualified |
UPES-1 | Hardness | ASTM D-2240 | 75 | Type D | qualified |
UPES-1 | Friction coefficient (static) | ASTM D-1894 | <0.15 | Unitless | qualified |
UPES-1 | Coefficient of thermal expansion | ASTM D-696 | 0. 02 | 0C | qualified |
UPES-1 | Melting point | ASTM D-3417 | 135 | 0C | qualified |
UPES-1 | Water absorption rate | ASTM D-570 | <0.01 | % | qualified |
UHMWPE Advantages
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Cost efficient; Resulting in low energy consumption
UHMWPE liner sheet Application
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
FAQ
1.Q: Are you trading company or manufacturer ?
A:We have our own factory.
2. Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock,
3.Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Q:What is your terms of payment ?
A:Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance ,70% T/T before shippment.
5.Q: What about the MOQ?
A:MOQ is 500 KG
