HDPE is used in a variety of applications and industries where excellent impact resistance, high tensile strength, low moisture absorption and chemical and corrosion resistance properties are required. And PE has good insulation properties and is easy to weld. The operating temperature of HDPE is from -50ºC to +90ºC.
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/ae2a5903de4ff7f4c37b7574ddd0e1d0.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/0255e65c11d9e1256ca9b5d5a007f12b.webp)

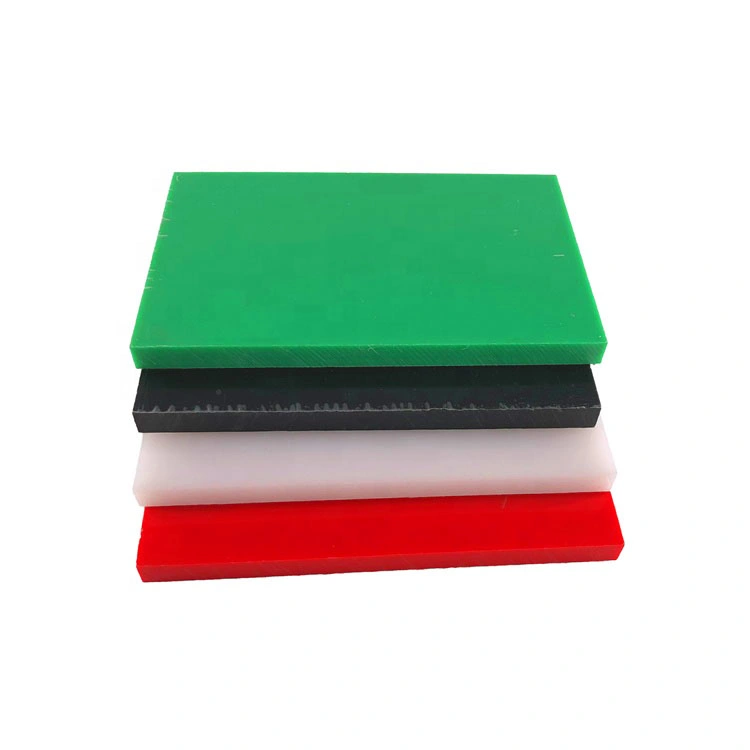

Product Name | HDPE (High Density Polyethylene ) Sheet |
Material | 100% new virgin |
Color | white I black I yellow I blue I green |
Standard Size | 1240*4040mm I 2030*3030mm |
Thickness | 1----200mm |
Density | 0.96 g/cm3 |
Type | extruded,moulded |
Sample | Free |
Heat Resistance | 90----110ºC |
Melting Point | 120ºC |
Tensile modulus of elasticity | 900 MPa |
Rockwell hardess | 62 |
Food contact | yes |
Acid resistance | yes |
Alkali resistance | yes |
Transportation machinery | Guide rail, convey belt, convey device slide block seat |
Food processing machinery | Planet wheel, bottle, convey, gear, counting bolt, filler bearing, bottle holder parts |
Paper making machinery | water suction tank cover, bearing, skew guide wheels |
Port machinery ship machinery | Ship parts, suspension bridge side roller, friction block. |
Ordinary machinery | All types of gear, bushing, liner, sliding plate, clutch, guiding unit, brake |
Other | Cooling machine, nuclear power plant shield, electric galvanized parts, and ultra-low temperature machine parts |
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/60841fb8dc805f443459fa397c39579f.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/7733d9086eb41273d4c46ea6b445981c.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/91b017e4487861f0badc9855b8740477.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/6daa07709a679e48293c8c231cbad9be.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/faaa8985b51e179194d353d680cd37af.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/8796e49c95e281db526d2c1032a4ea86.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/21733f960a83e418faf6fcd74a759b8c.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/346c43279058fe5b3b81d1f54afa8b0b.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/4a009226b24bc40b772e71b6c114dcf3.webp)
![Top Quality Food Grade Plastic UHMWPE HDPE Sheet Conveyor Plastic Wear Sheet](https://img3.grofrom.com/boyu/191f82cc0ceb29d63d45523169c066e3.webp)
No. | Item | Unit | Test Standard | Result |
1 | Density | g/cm3 | GB/T1033-1966 | 0.91-0.96 |
2 | Molding shrinkage % | ASTMD6474 | 1.0-1.5 | |
3 | Elongation at break | % | GB/T1040-1992 | 238 |
4 | Tensile strength | Mpa | GB/T1040-1992 | 45.3 |
5 | Ball indentation hardness test 30g | Mpa | DINISO 2039-1 | 38 |
6 | Rockwell hardness | R | ISO868 | 57 |
7 | bending strength | Mpa | GB/T9341-2000 | 23 |
8 | Compression strength | Mpa | GB/T1041-1992 | 24 |
9 | Static softening temp. | ENISO3146 | 132 | |
10 | Specific heat | KJ(Kg.K) | 2.05 | |
11 | Impact strength | KJ/M3 | D-256 | 100-160 |
12 | heat conductivity | %(m/m) | ISO11358 | 0.16-0.14 |
13 | sliding properties and friction coefficient | PLASTIC/STEEL(WET) | 0.19 | |
14 | sliding properties and friction coefficient | PLASTIC/STEEL(DRY) | 0.14 | |
15 | Shore hardness D | 64 | ||
16 | Charpy Notched Impact Strength | mJ/mm2 | No break | |
17 | Water absorption | Slight | ||
18 | Heat deflection temperature | °C | 85 |
1: Are you trading company or uhmwpe hdpe sheet/board/block manufacturer ?
A: We are factory.
2: How long is your uhmwpe hdpe sheet/board/block delivery time?
A: Generally it is 5-10 days if the uhmwpe hdpe sheet/board/block goods are in stock. or it is about 20 days if the uhmwpe hdpe sheet/board/block goods are not in stock, it is according to quantity.
3: Do you provide uhmwpe hdpe sheet/board/block samples ? is it free or extra ?
A: Yes, we could offer the 100*100mm uhmwpe hdpe sheet/board/block sample for free charge but pay the cost of freight.
4: What is your terms of payment ?
A:Payment term is flexible.we accept T/T,Paypal and the other terms.Open to discuss.
5. Is there any warranty on the quality of your uhmwpe hdpe sheet/board/block products ?
A: Please don't worry about that, we have 10 years of experience in producing uhmwpe hdpe sheet/board/block products, our products widely used in Europe, the America and other countries.
6. What about the uhmwpe hdpe sheet/board/block after-sales service?
A: We have years of guaranteed life, if our uhmwpe hdpe sheet/board/block products have any problems, you can ask the feedback of our product termly, we will fix it for you.
7. Do you inspect the uhmwpe hdpe anti-uv liner sheet/board/block product?
A: Yes, each step of uhmwpe hdpe sheet/board/block production and finished products will be carried out inspection by QC before shipping.
8. Is the uhmwpe hdpe sheet/board/block size fixed?
A: No. we can meet your needs according to your acquirement. That is to say, we accept uhmwpe hdpe sheet/board/block customized.
9. Can you produce according to uhmwpe hdpe liner sheet/board/block samples?
A: Yes, we can produce uhmwpe hdpe liner sheet/board/block by your uhmwpe hdpe sheet/board/block samples or technical drawings.
10: How do you keep our long-term business relationship?
A: we keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
