Product Description:

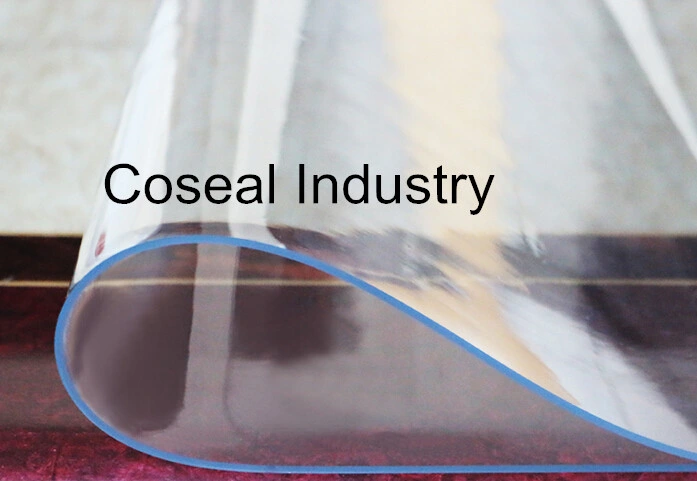

Flexible PVC Sheet is the ideal product which can instead of traditional glass.
It can be used for window, table cloth or table cover.
Advantages:
•Reduces heat or cold air loss by 45%.
•Restricts movement of smoke, fumes and dust.
•Admits lights to pass through.
•saves time and keep working safety.
•Reduces machinery noise.
•Restricts birds and flying insects.
•Strong and durable
Popular Product Size:
Test Report
The certificate we got:
ROHS / REACH / EN-71
Flexible PVC Sheet is the ideal product which can instead of traditional glass.
It can be used for window, table cloth or table cover.
Advantages:
•Reduces heat or cold air loss by 45%.
•Restricts movement of smoke, fumes and dust.
•Admits lights to pass through.
•saves time and keep working safety.
•Reduces machinery noise.
•Restricts birds and flying insects.
•Strong and durable
Popular Product Size:
| Featured product | Popular Size | |
| Super Clear Flexible PVC Sheet Welding Flexible PVC Sheet Anti-Insect Flexible PVC Sheet Gery/Black/Yellow/Red/Green Flexible PVC Sheet | Thickness: 0.1mm to 10mm Width:500mm to 2000mm Length: 20M | |
Test Report
Specifications of Soft PVC Sheet | ||||
| Roll Sizes | ||||
| Thickness | 0.5mm to 8.0mm | |||
| Width | 100mm to 1850mm | |||
| Length | 10m to 100m | |||
| Material Description | ||||
| Finish | Smooth or Double Ribbed | |||
| Colors | Clear,Blue ,Yellow,Dark Bronze, Green, UV Red, Orange | |||
| Physical Properties | ||||
| Property | ASTM | Unit | Result | |
| Light transmittance | ASTM D1003 | % | 85 | |
| Shore A hardness | EN ISO868 | Sh A | 80 | |
| Tearing resistance | DIN 53515 | N/mm | 50 | |
| Tensile stength at break | EN ISO 527 ASTM D 638 | N/mm² | 16 | |
| Elongation at break | % | 340 | ||
| Residual elong(after break) | % | 68 | ||
| Thermal conductivity | ASTM C177 | W/m.k | 0.16 | |
| Cold bend brittle temp | ISO 8570 | ºC | -35 | |
| Min. usage temp | EN 1876 | ºC | -15 | |
| Max. usage temp | EN ISO 306 | ºC | 150 | |
| Vicat softening temp | ºC | |||
| Specific heat capacity | ISO 11357 | kj/kg.k | 1.6 | |
| Sound reduction | DIN52210 | Db | >35 | |
| Fire retardance | NF P 92-507 AS/NZS3837 DIN 4102 | classe | Grp4 B2 | |
| UV/IRfilter | EN 1598 | Filter | .. | |
| UV resistance | ISO 4892 | .. | yes | |
| Charface buildup | IEC 61087 | Sparks | yes | |
| Surface resistivity | IEC60093 | Ω/ | 4.10¹³ | |
| Water absorption | EN ISO 62 | % | .0.2 | |
| Anti-insect | … | … | yes | |
| Density | ASTM D 792 | g/m3 | 1.25 | |
The certificate we got:
ROHS / REACH / EN-71
