Products Description
| Geocell height | 50mm,80mm,100mm,150mm,200mm |
| Welding spacing | 300mm-1000mm |
| Expanding size | 4.5×5m2, 6.5×4.5m2, 13.2×4.5m2 |

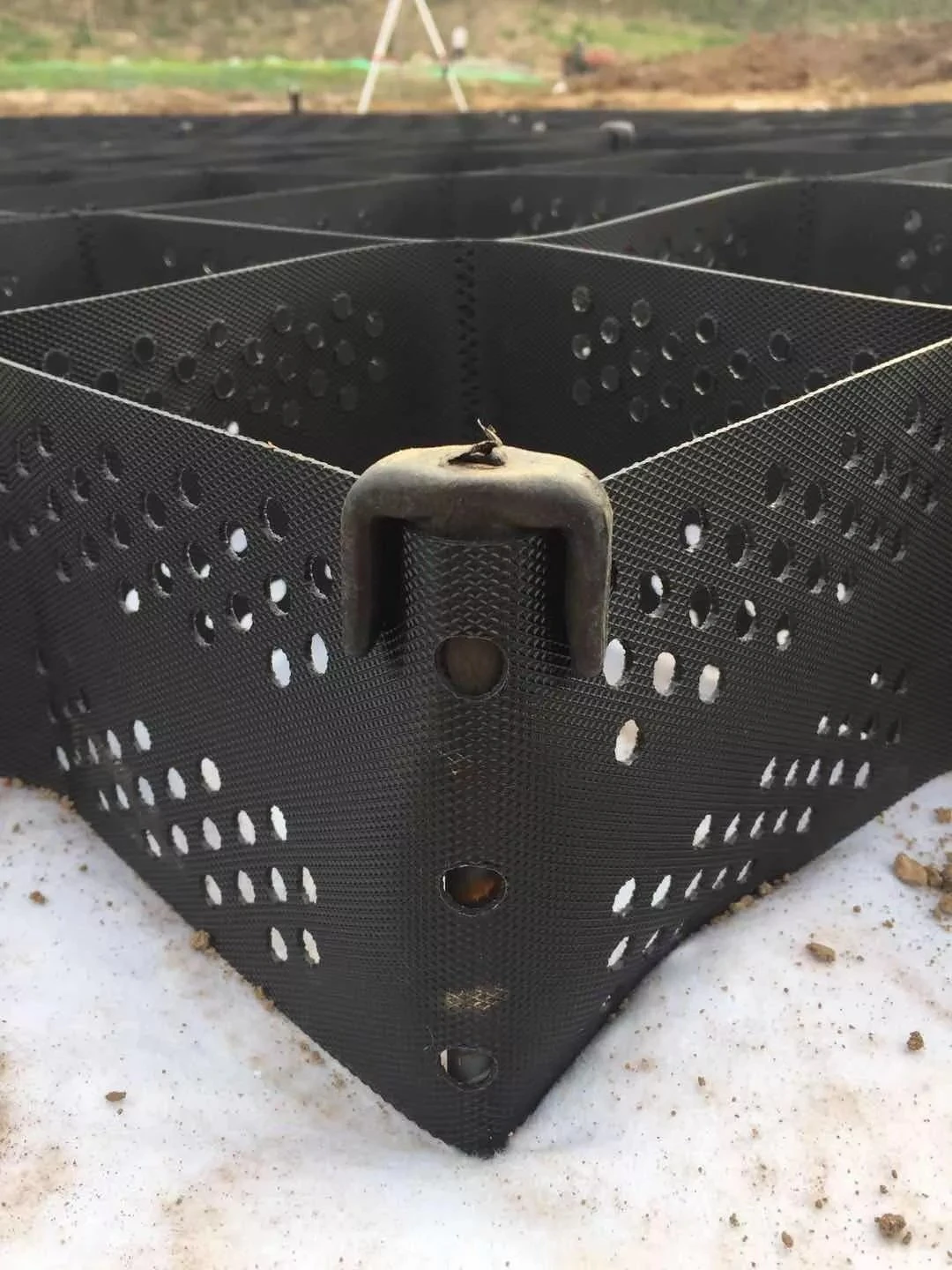

HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
 | No Gravel Base Required! The Geocell does not require a gravel base. This is due to both the depth and amount of compaction which takes place within the confined cells. Simply lay an approved geotextile below the grid and fill. The result is a savings in both labor and material cost. |
| Which Depth Cell do I need? For load support, the 3" Geocell with a gravel infill is rated for approximately 8,000 pounds and is best suited for light passenger vehicles, golf carts, horse paddocks etc. The 4" is rated at 40,000 lbs and is best suited for most driveway and parking lot applications. The 6" at 60,000 lbs is designed for emergency access or areas where heavy vehicles will be driving over regularly. The 8" is suited for specialty applications where heavy machinery will frequent. |  |
 | Fabric for Beneath the Geocell (Required) & Accessories It is required that a layer of geotextile fabric is placed below the Geocell to prevent the gravel from absorbing into the ground while providing adequate strength and drainage. Additionally, J-Hooks, and staples / heavy duty zip ties are recommended to attached multiple panels. |
Product Features
 | Gravel FillAggregate surface (crushed rock) |
Grass FillPermeable paving (turf / vegetated) |  |
  UNDER ASPHALT & CONCRETEWhen used under a asphalt or concrete surface the Geocell can help to provide stability and reduce the amount of aggregate required for stabilization. | |
  SLOPE & SWALE STABILIZATIONGeocell can be used to stabilize hillsides and swales in additional to providing load support. The permeable geocells allow for water to flow through the material and help to keep the infill material from eroding. | |
Product Application
 | • Erosion Control • Load Support • Slope Protection • Channel Protection • Retaining Wall • Ground Stabilisation |
Product specifications and performance parameters
Packing
Packing Details : Red or Yellow tape with PE film or PP woven bags. We provide OEM mark.| Lianyi HDPE Geocell | |||||||
| Material Properties | |||||||
| Polymer Density (ASTM D 1505) | g/cm3 | 0.935-0.965 | |||||
| Environmental Stress Crack Resistance (ASTM D 1693) | hrs | 6000 | |||||
| Carbon Black Content (ASTM D 1603) | % | min. 1.5% | |||||
| Nominal Sheet Thickness before texturing (ASTM D 5199) | mm | min. 1.27-5%,+10% | |||||
| Nominal Sheet Thickness after texturing(ASTM D 5199) | mm | min. 1.52-5%,+10% | |||||
| Material | HDPE | ||||||
| Texture | HDPE strip consists of a multiple rhomboidal indentations, over the entire strip on both sides of the strip.The indentations have a surface density of 22 to 32 per cm2 | ||||||
| Perforations | HDPE strip is perforated with horizontal rows of maximum 10mm diameter holes. Cell perforations area is less than 12% of cell surface area. | ||||||
| Cell/ Section Properties | |||||||
| Property | Unit | DTGS5 | DTGS8 | DTGS10 | DTGS15 | DTGS20 | |
| Weld Spacing | mm | 300-400 | 330-1000 | 330-400 | 330-400 | 330-400 | |
| Cell Depth | mm | 50, 80, 100, 150, 200 | |||||
| Seam Properties | Cell Depth | ||||||
| mm | 50 | 80 | 100 | 150 | 200 | ||
Packing
Payment terms : T/T or L/C at sight.
Delivery Details : 7-15 days after receive the advance payment.
Company Information
FAQ
Q1:What is your delivery time?A1:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q2:Where is your company?
A2:Feicheng shandong province, China and if you want to coming,please call me ,I will arrange your schedule.
Q3:Are you trading company or manufacturer?
A3:We are manufacturer.So wo have a lower price than trading company.
Q4:What is your delivery method?
A4:T/T, Western Union, L/C,PAYPAL...
Q5:Do you provid samples?Is it free or extra?
A5:Yes, we can offer the sample for free charge but do not pay the cost of freigh.
Q6:What is your terms of payment?
A6:Payment<=1000USD,100% in advance.Payment>=1000USD, 30%T/T in advance, balance before shippment. If you have another question, please to contact me
