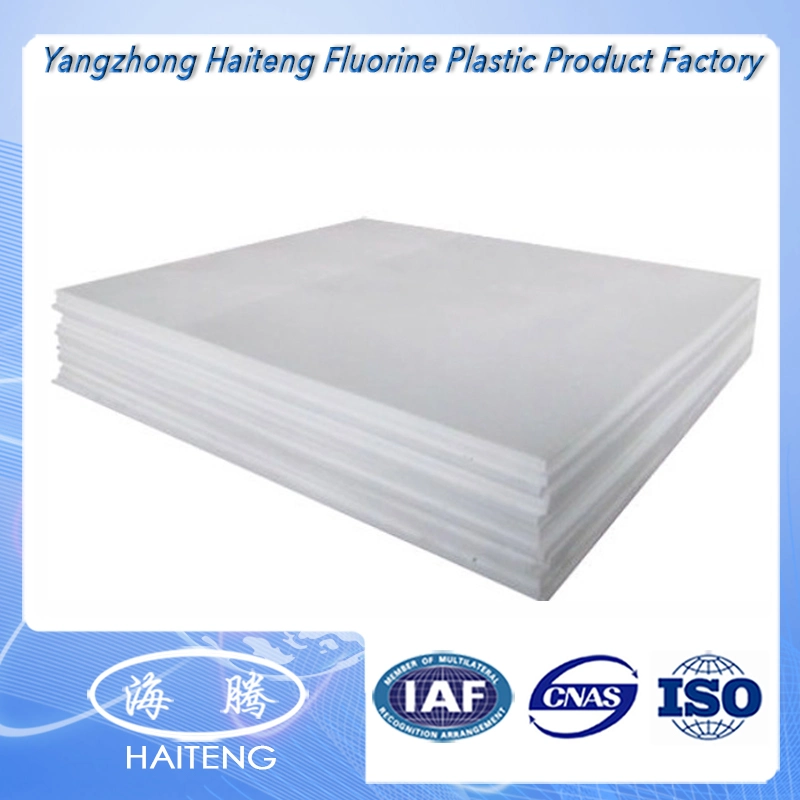

Pure Virgin PTFE Sheets PTFE Etched Sheets
Thickness(mm) | Width 1000mm | Width 1200mm | Width 1500mm | Width 2000mm | Width 2700mm |
0.1, 0.2, 0.3, 0.4 | √ | √ | √ | - | - |
0.5, 0.8 | √ | √ | √ | √ | - |
1, 1.5, 2, 2.5, 3, 4, 5, 6 | √ | √ | √ | √ | √ |
7, 8 | √ | √ | - | - | - |
Custom specifications | |||||
Thickness | 0.1mm ~ 10.0mm | ||||
Width | 30mm ~ 1500mm for 0.1 ~ 0.4mm thick 300 ~ 2700mm for 0.5 ~ 8mm thick |

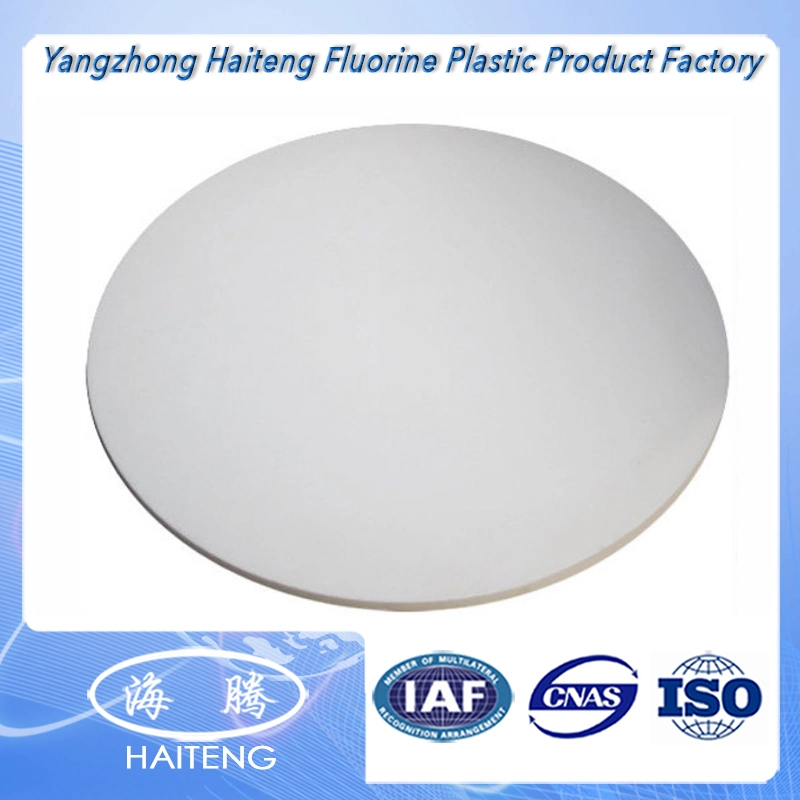

PTFE molded sheet
Thickness(mm) | Length*Width 1000*1000mm | Length*Width 1200*1200mm | Length*Width 1500*1500mm | Length*Width 1800*1800mm | Length*Width 2000*2000mm |
2, 3 | √ | √ | √ | - | - |
4 , 5, 6, 8, 10, 15, 20, 25, 30, 40, 50, 60, 70 | √ | √ | √ | √ | √ |
80, 90 , 100 | √ | √ | √ | - | - |
Custom specifications | |||||
Thickness | 2mm ~ 100.0mm | ||||
Width | 50mm ~ 2700mm |
Images
![Pure Virgin PTFE Sheets PTFE Etched Sheets](https://img3.grofrom.com/boyu/fce2627e1b6237227f18e7fdcf3e40d8.jpg)
![Pure Virgin PTFE Sheets PTFE Etched Sheets](https://img3.grofrom.com/boyu/1e9c5298693884660dbbe46786fe3db7.jpg)
![Pure Virgin PTFE Sheets PTFE Etched Sheets](https://img3.grofrom.com/boyu/4ccd9a9771e577214ad39a2c071692d3.jpg)
In fluoroplastics, PTFE got the most consumption and was used widely. It's an important material in variety of fluoroplastics. PTFE resin is in a class of paraffinic polymers that have some or all of the hydrogen replaced by fluoride. PTFE exhibit astonishing chemical resistance. This self-lubricating material provides a low friction coefficient, and is ideally suited for the manufacture of corrosion-resistant gaskets & seals. One of the most chemically resistant materials available, PTFE also handles continuous service temperatures approaching 500F((280°C). It also has a high oxygen level
Features:
(1)Superior endurance in corrosion
(2)Superior endurance in seasonal change
(3)Non-flammable, limited oxygen index is under 90.
(4)Low friction coefficient
(5)Non-viscous
(6)Superior endurance in high & low temperature, can be used -190 to 260°C.
(7)High electricity insulation
(8)High electricity resistance coefficient
(9)Self-lubricating
(10)Atmospheric aging resistance
(11)Radiation-resistant properties and low permeability
