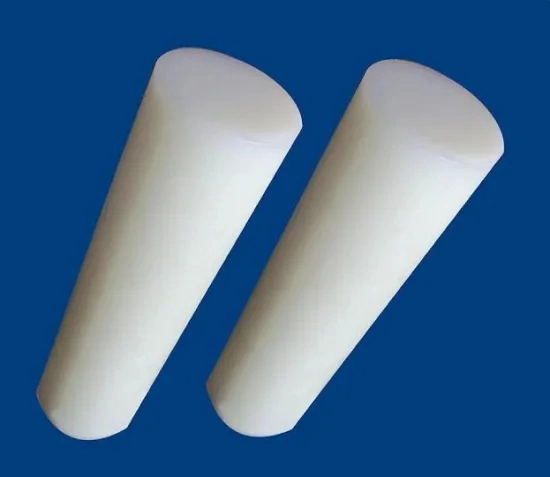

Polyethylene PE 1000 Rod/uhmwpe plastic rod
Products Description
Our advantages:
Material: UHMWPE/HDPE/PP/Nylon
Produce Procedure: CNC, Injection etc.
Shape: Any, according to the drawing
Size: Φ20,Φ30,Φ50,Φ80,Φ100,Φ150 and other size
Color: Black, White, Yellow, Green, Blue etc.
Fast shipment, short production time, superior quality
Here, we could meet all your requirements for customized plastic rods
![Polyethylene PE 1000 Rod/UHMWPE Plastic Rod](https://img3.grofrom.com/boyu/1295b2938d8ad16e4eddf4bcb657fac7.webp)
![Polyethylene PE 1000 Rod/UHMWPE Plastic Rod](https://img3.grofrom.com/boyu/0978ab6efc3dd2e186740728fb539718.webp)
![Polyethylene PE 1000 Rod/UHMWPE Plastic Rod](https://img3.grofrom.com/boyu/af95cd9b9f70f1c435bca7d51ab4a5b4.webp)
Applications
1.Chain and belt guides
2.Sliding and power transmission components
3.Chain sprockets and gear wheels
4.Sliding components and bearings
5.Track and guide rollers
Technical Data Sheet
PROPERTIES | Test Method | Unit | Value |
I.Physical Properties | |||
Density | ISO 1183 | g/cm3 | 0.95~0.96 |
Water absorption 24hrs | ISO 62 | % | 0.01 |
II.Thermal Properties | |||
Heat deflection temperature - HDT/A | ISO 75-2 | ºC | 55 |
Min. service temperature | ºC | -30 | |
Max. service temperature-Long Term | ºC | 90 | |
Thermal conductivity at 23 ºC | DIN 11359 | W/(K*m) | 0.42 |
Coefficient of linear thermal expansion | ISO 11359 | 10-4*K-1 | 1.5 |
Flammability Rating(6mm thickness) | UL 94 | - | HB |
III.Mechanical Properties at 23ºC | |||
Tensile strength at yield | ISO 527-2 | MPa | 27 |
Tensile strength at break | ISO 527-2 | Mpa | 35 |
Elongation at break | ISO 527-2 | % | 700 |
Modulus of elasticity after tensile test | ISO 527-2 | MPa | 1,000 |
Modulus of elasticity after flexural test | ISO 178 | MPa | 1,000 |
Hardness - Shore D | DIN 53505 | 64 | |
Charpy impact strength | ISO 179 | kJ/m2 | N. B. |
Friction coefficient | DIN 53375 | 0.3 | |
IV.Electrical Properties at 23ºC | |||
Dielectric constant at 1 MHz | IEC 60250 | 106Hz | 2.3 |
Dielectric loss factor at 1 MHz | IEC 60250 | 106Hz | 3.1 |
Volume resistively | IEC 60093 | Ohm (Ω) * cm | >1016 |
Surface resisively | IEC 60093 | Ohm (Ω) | >1015 |
Dielectric strength | IEC 60243-1 | kV/mm | 17 |
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m |
XINXING certificate:
![Engineer Plastic UHMWPE or HDPE Rod](https://img3.grofrom.com/boyu/466fa5044c4ccd42ffd37038297b171d.webp)
Detailed Image
![Polyethylene PE 1000 Rod/UHMWPE Plastic Rod](https://img3.grofrom.com/boyu/e8e3c30b35764dbf8a7d36b3b5d9a0d7.webp)
![Polyethylene PE 1000 Rod/UHMWPE Plastic Rod](https://img3.grofrom.com/boyu/9868d61d53c098a6868caa803ed79da1.webp)
![Polyethylene PE 1000 Rod/UHMWPE Plastic Rod](https://img3.grofrom.com/boyu/1d734fe9e27b25e8e269809a295498e4.webp)
![Polyethylene PE 1000 Rod/UHMWPE Plastic Rod](https://img3.grofrom.com/boyu/9b65282fbbcfc15e32006ae1d8b61a97.webp)
Typical Properties
· Exceptional abrasion & impact resistance.
· High Sliding & non-stick characteristic
· High chemical & weathering resistance
· Non water absorption
· Lowest coefficient of friction
· Excellent electrical properties
· Light weight
· Ease of fabrication
· Temperature range: -260°C ~ +80°C
Our factory
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are
not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
