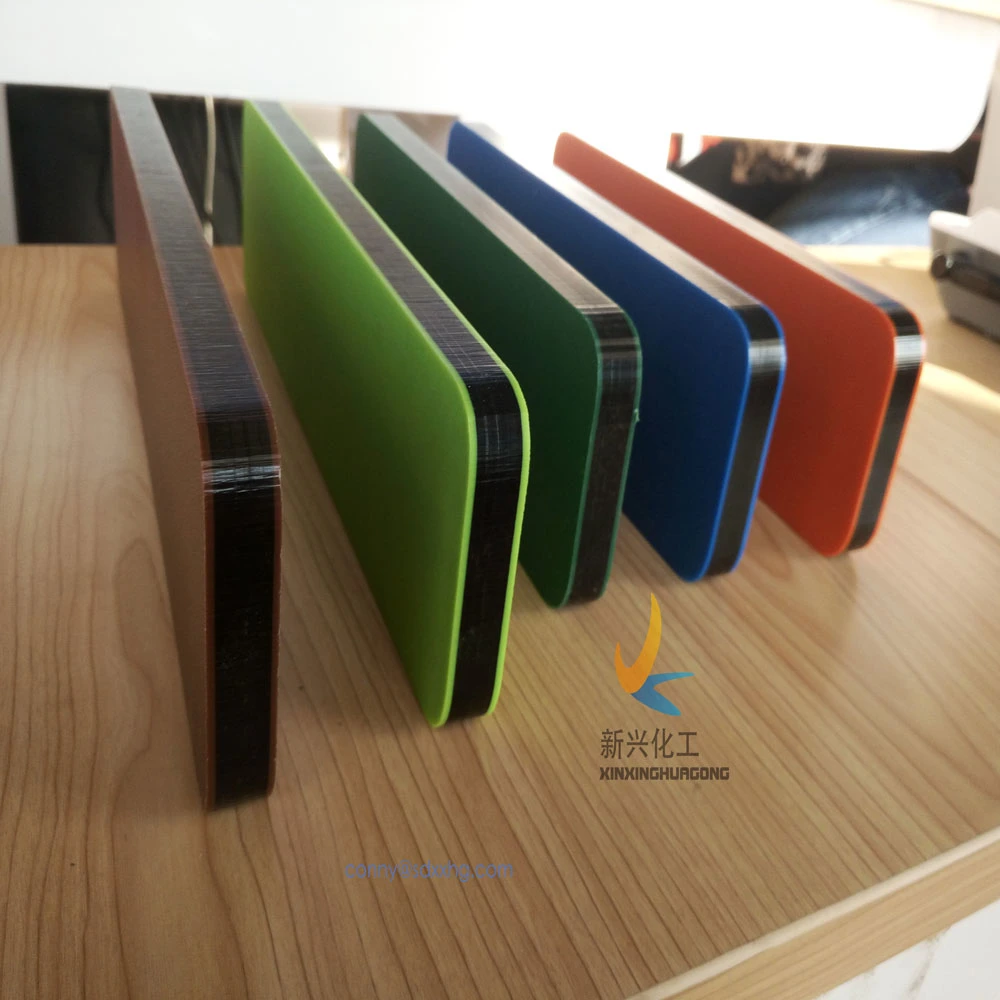

Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet
High Density Polyethylene (HDPE) sheet is extremely strong against impact, abrasion resistant, and exhibits a low coefficient of friction. The material is also moisture, stain, and odor resistant, and is FDA approved for use in the food processing industry. The material's durability makes it a perfect match for a variety of applications such as water tanks, chute linings, bottle/bottle cap production and numerous other industrial uses. We also offer Borated HDPE which offers radiation protection in nuclear facility applications.
![Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet](https://img3.grofrom.com/boyu/4e7da919c2dee75a4698597069e8c377.webp)
SIZES
Xinxing carries all sizes of High Density Polyethylene sheet and can cut to size or machine with CNC routers to any desired shape.
Each cut-to-size sheet can be customized in width and length, but we can also add holes, radius corners, and rounded or routed edge
![Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet](https://img3.grofrom.com/boyu/da91a3d7d030042f0d05a17973343962.webp)
PROPERTIES
Rigidity and tensile strength of the HDPE resins are considerably higher than those of the low and medium density materials. Impact strength is slightly lower, as is to be expected in a stiffer material. Values remain high when compared to those of many other thermoplastic materials, especially at low temperatures.
![Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet](https://img3.grofrom.com/boyu/71222d4cfa2cc668acdcab874bfafdd6.webp)
KEYWORDS
HDPE Industrial Sheets (Engineer Sheets), HDPE UV Stabilized Sheets, HDPE Anti Static Sheets, HDPE Anti flame sheets. multi-colored HDPE sheets, Outdoor cabinetry HDPE, HDPE board, HDPE block, HDPE matte sheet, HDPE smooth sheet, HDPE anti-skid sheet
![Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet](https://img3.grofrom.com/boyu/de0b9f0d648bc77f6f16ba7a80d60bbf.webp)
QUICK DETAILS
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Xinxing
Model Number:
Pe078
Material:
PE
Thickness:
6-300mm, 6-300mm
Size:
customized, 1220x2440mm,1500*3000mm
Product name:
HDPE plastic sheet
Color:
White, black, red, blue, green (customized)
Production Process:
Extrusion
Certificate:
CE/FDA/ISO 9001/14001
Surface:
plain texture
Density:
0.96g/cm3
Grade:
Food standard
Property:
no-toxic
CHARACTERISTICS
- Excellent chemical resistance
- Good wear resistance
- Anti-weather and Anti-aging (UV stabilized)
- Good electrical insulation
- UV Resistance
- Stain resistant
- Good protection against stress cracking
- Very low water absorption, moisture resistant
- Low maintenance cost
- Resist organic solvents, degreasing agents & electrolytic attack
- High flexibility at high or low temperature
- The mechanical strength of surface hardness, stretching intensity and rigidity is higher than LDPE.
- Food safe. Non-Toxic and non-smelly
- Easy to Fabricate
- Excellent Scratch Resistance
- Will not Delaminate, Chip, Rot or Swell
- No Moisture Absorption
- Great Impact and Stiffness
DATA SHEET,
Typical properties of HDPE,
UNITS | ASTM Test | HDPE | |
Tensile strength | psi | D638 | 4000 |
Flexural modulus | psi | D790 | 200 000 |
Izod impact (notched) | ft-lbs/in of notch | D256 | 1.3 |
Heat deflection temperature @ 264 psi | °F | D648 | 172 |
Maximum continuous service temperature in air | °F | - | _ |
Water absorption (immersion 24 hours) | % | D570 | 0.10 |
Coefficient of linear thermal expansion | in/in/°Fx10-5 | D696 | 7.0 |
Application:
1)Food storage and freezing equipment
2)Cutting boards, kitchen counters, kitchen shelves
3)Protective surface in the food processing industries.
4)Acid and alkali resistant equipment, environmental protection equipment.
5)Water tank, washing tower, waste water, waste gas discharge, water treatment equipment.
6)Chemical containers, medicine and food packaging
![Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet](https://img3.grofrom.com/boyu/d20940add11f6ad015be24a1175c9758.webp)
7)Machinery, electronics, electrical appliances, decoration and other fields
8) Clean room, semiconductor plant and related industrial equipment
9) Gas transportation, water supply, drainage, agricultural irrigation
10)Outdoor / Indoor Playground Systems
![Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet](https://img3.grofrom.com/boyu/cbbf6060dc96d4f82cdd7aa814b22bf4.webp)
11)Outdoor Signs
12)Skate Parks
13)Ice Rinks
14)Outdoor Cabinetry / Furniture
15)Decorative Wood / Metal Replacement
16) Orthotics and prosthetics
17) Light duty tank, chute and bin linings
![Polyethylene Dual Color HDPE Block, HDPE Board, Plastic HDPE Sheet](https://img3.grofrom.com/boyu/40a317cf6d41df10cc7ca0e3ad64e8dd.webp)
