Tianjin Beyond Technology Developing Co., Ltd is a comprehensive plastic processing and trading company, engaged in the research and development and production of industrial sheet and plastic processing part for more than 10 years.
We have established long-term and stable cooperative relations with domestic companies, and our products have exported to Europe, North America, Southeast Asia, South America, Australia and other countries
Our main products: HDPE, UHMWPE, MC nylon, PA, POM, PP, PVC material sheet and plastic processing part.
Tianjin Beyond Technology Developing Co., Ltd has multiple production lines, including CNC machine 6 lines, CNC milling machines 7 lines, extruder machines 4 lines, injection mold machines 3 lines, Molded sheet machines 2 lines etc. And we have an experienced & skilled production team. To guarantee the quality, we have specialized QC team to suspect every step. A strong consulting and after-sales service team to make you rest assured to cooperate with us.

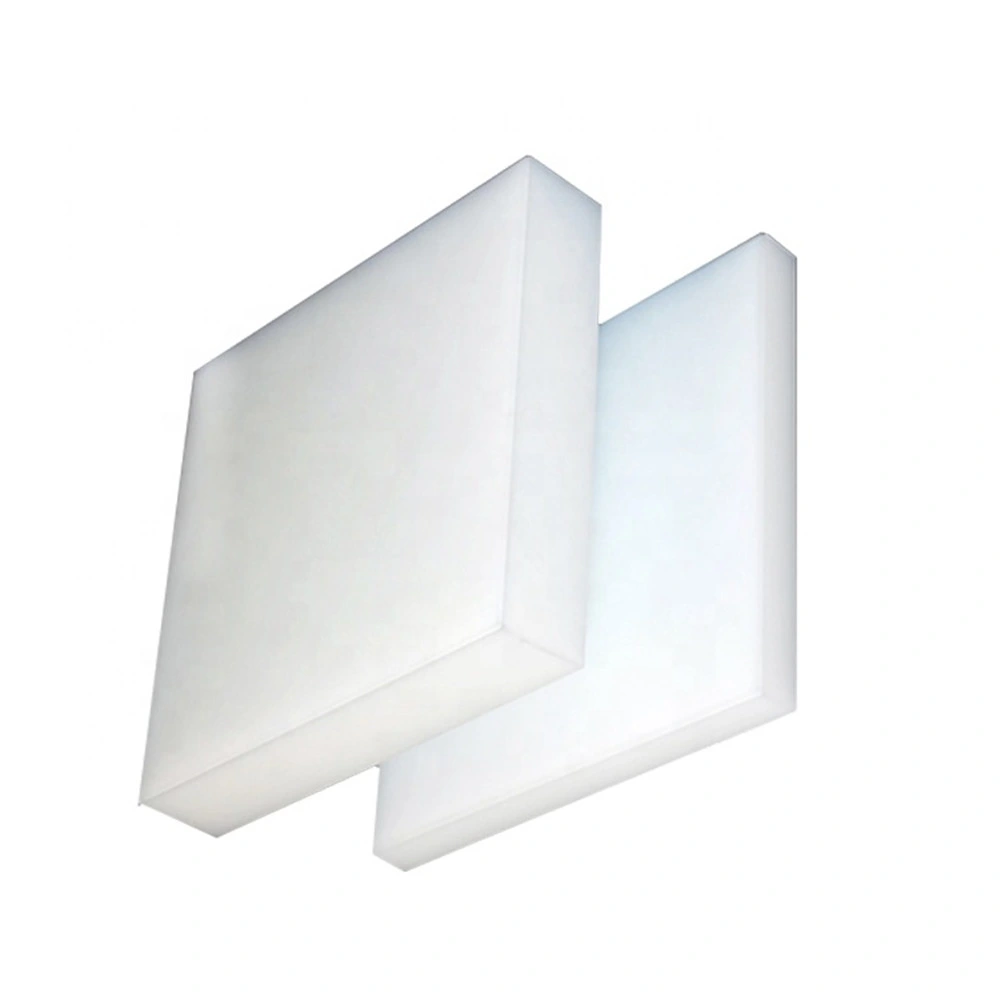

name | High wear resistance100 % virgin uhmwpe hdpe sheet |
Material | UHMWPE HDPE |
colour | white/yellow/blue/green/black and so on |
performance | UV Stabilized,Corrosion resistance, impact resistance, low water absorption, good self - lubricating property |
size | 1240mm*4040mm 2030mm*4040mm |
| thickness | 1-300 mm |
Logo | Yes |
OEM | Yes |
Samples Time | 5~7 days |
Certification available | SGS; ISO9001:2008,CE, |
Packing Details | Pallet with strech film, customised wooden case, carton, or others as request. |
Production Capacity | 10 Tons Per Day |
Advantage | Self-lubricating properties superior,Strong corrosion resistance, high chemical technical, non-stick phase is not easy to attach the product surface and other materials. |
| 1.Abrasive resistance which always have in thermoelectricity polymer. |
| 2.Best shock resistance even in low temperature. |
| 3.Low frictional factor, and well sliding bearing material |
| 4.Lubricity ( no caking, in adhesion) |
| 5.Best chemical corrosion resistance and stress craze resistance |
| 6.Excellent machinery process ability |
| 7.Lowest water absorption(<0.01%) |
| 8.Paragon electric insulativity and antistatic behavior |
| 9.Nice high energy radioactive resistance |
| 10.Density is lower than other thermoplastics (< 1g/cm3) |
| 11.Long using temperature range: -269°C--90°C |
This unique molecular structure gives UHMWPE exceptional properties like below:
| Uhmwpe property test iterm | Technical index | Test result |
| Density | 0.94-1.0 | 0.958 |
| Water absorbtion rate %(23ºC,24h) | ≤0.01 | 0.006 |
| Tensile strength MPa | ≥20 | 53 |
| Tensile elongation break % | ≥100 | 300 |
| Charpy notched impact strength KJ/M2 | ≥100 | 180 |
| Rockwell hardness | ≥50 | 62.4 |
| Distortion temperature | ≥80 | 90 |
| Oxygen index | ≥25 | 27.6 |
| Wear-resisting property | ≤1.0×10-4 | No obvious change |
| Vicat softening point | ≥125 | 135 |
1. OEM ODM One-stop purchase service
2. More than 10 years non-standerd custom experience
3. Import equipment,Processing size tolerance control is less than 0.2mm
4. 24 hours instant and comfortable customer service.
5. ISO9001, SGS, Test Report, RoSH Certification.
6. support engineer available 24/7/365
1.Q: Are you trading company or manufacturer ?
A:We have our own factory.
2. Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock,
3.Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Q:What is your terms of payment ?
A:Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance ,70% T/T before shippment.
5.Q: What about the MOQ?
A:MOQ is 500 KG
