![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/a92e1701fab09db6dce5267e96a72444.webp)

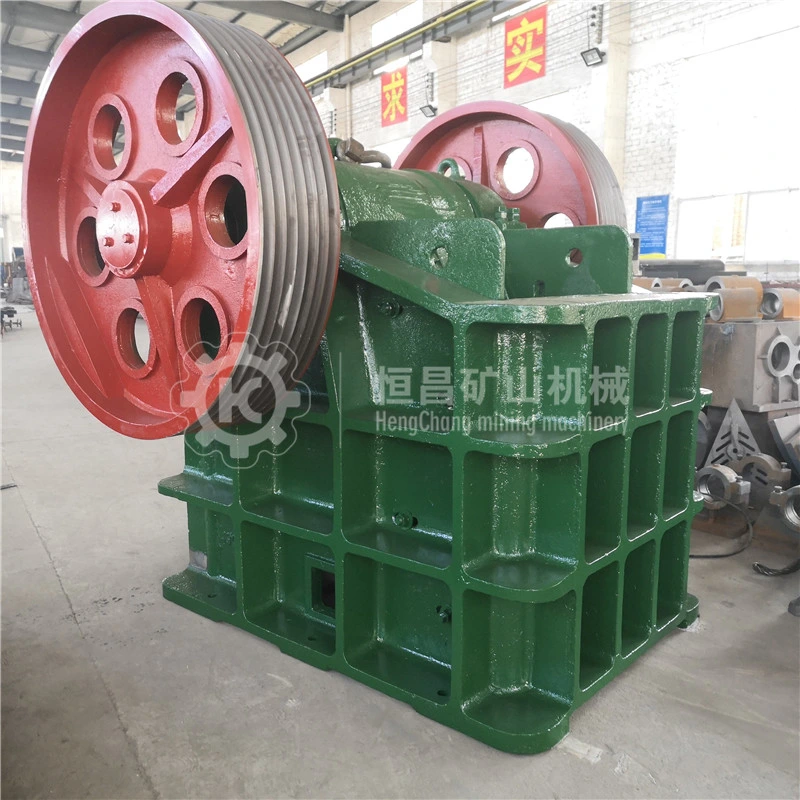

PE500*750 Cobble Crushing Machine Cobble Jaw Crusher
1.Cobble Cruhsing Machine Introduction:
Cobble Crushing Machine are ideal for primary and secondary crushing processing. With the increase of production, our hengchang jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity. The jaw has a smaller discharge setting, allowing for a higher degree of flexibility with relative equipment,Positive setting adjustment is easy.
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/5f150640b8162918a46c4d8b7f93f0c2.webp)
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/8568ca1f10e0daeb5662b3a1aa225c02.webp)
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/37896516a86019c3336aa72aa9935cec.webp)
2.Main Characteristics of Cobble Crushing Machine :
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/61286f844b61ab0ec2290610808eb899.webp)
3.Cobble Crushing Machine Working Principle:
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/b0450adcc8245a1c99d380605373f911.webp)
4.Copper ore crushing plant Applications:
Hengchang Brand PE Series Copper ore crushing plant is widely used for crushing of stone, rock , Cement processing plant glass, metal, ore etc., such as limestone, granite, dolomite, marble stone, etc. in the industry of mining, construction, railway, water conservancy and chemical. Usually, in a whole production line, Gold mining Rock Crusher is for first crushing.
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/26b81cc833227f522ebb6347c3c86096.webp)
5.Technical parameter of Cobble Crushing Machine:
Model | Max Feeding Size (mm) | Capacity (t/h) | Speed of Spindle (r/min) | Output Size (mm) | Power (kw) | Dimension (L*W*H)mm | Weight (KG) |
PE150*250 | 125 | 1~3 | 285 | 10~40 | 5.5 | 875*745*935 | 1160 |
PE250*400 | 200 | 5~20 | 300 | 20~80 | 15 | 1410*1310*1386 | 2572 |
PE150*750 | 120 | 8~35 | 320 | 10~40 | 15 | 1280*1610*1081 | 3350 |
PE400*600 | 340 | 14~36 | 250 | 40~100 | 37 | 1700*1732*1658 | 5800 |
PE250*750 | 210 | 15~45 | 300 | 15~50 | 30 | 1695*1920*1646 | 5000 |
PE250*1000 | 210 | 15~50 | 330 | 20~50 | 30 | 1550*1990*1370 | 6800 |
PE250*1200 | 210 | 20~70 | 320 | 20~60 | 45 | 1670*2190*1430 | 9000 |
PE500*750 | 400 | 30~80 | 250 | 50~120 | 45 | 1990*1876*1821 | 9000 |
PE600*900 | 480 | 56~192 | 250 | 75~200 | 75 | 2792*3828*2529 | 18900 |
PE900*1200 | 650 | 180~350 | 180 | 100~250 | 110 | 5000*4471*3280 | 55000 |
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/dd095ee4568082385fae66d81b3c5175.webp)
7.Successful case:
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/3a692483c7a5b3ba6342790a46a4600a.webp)
8. About our factory:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.
We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/b0cea9e34f697927e3d1ff6f20087322.webp)
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/a8f0d6fe339eea71e1be9b095ec4a687.webp)
![PE500*750 Cobble Crushing Machine Cobble Jaw Crusher](https://img3.grofrom.com/boyu/7f1aeda6956d80ae256c9754a5354dd7.webp)
9. Our service:
1.Pre-sale services:
(1)Select equipment model;
(2) Design and manufactLire products according to clients' special requirement;
(3)Train technical personnel for dients.
2.Services during the sale:
(1) Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
(1) Assist dients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3) Train the first-line operators on site;
