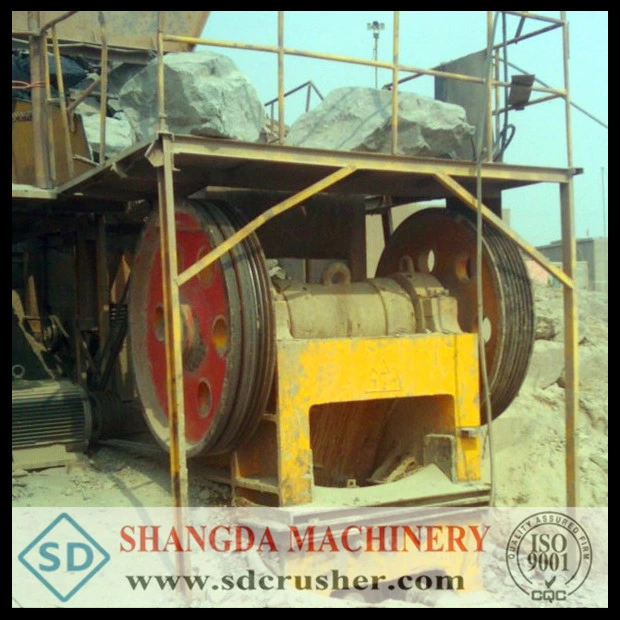

PE series jaw crusher is ideally suitable for primary and secondary crushing.
Its used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and our jaw crushers have the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance.
The crushing strength of the jaw crusher materials is up to 350 Mpa
Features
1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.
-Excellence in casting engineering
-Excellent material intake capacity
-Easy installation & maintenance
-High production and reduction
-Reliability, high availability
Packaging Details
1. small parts are wooden box package.
2. main engine nude packing, container, or upon customers requirement.
Its used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and our jaw crushers have the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance.
The crushing strength of the jaw crusher materials is up to 350 Mpa
Features
1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.
| Model | Feed inlet size (mm) | Max. feeding size (mm) | Adjusting range (mm) | Capacity (t/h) | Motor power (kw) |
| PE250×400 | 250×400 | 210 | 20-80 | 5-20 | 15 |
| PE400×600 | 400×600 | 340 | 40-100 | 16-50 | 30 |
| PE500×750 | 500×750 | 425 | 50-125 | 30-80 | 55 |
| PE600×900 | 600×900 | 480 | 75-200 | 50-190 | 75 |
| PE750×1060 | 750×1060 | 630 | 80-235 | 80-260 | 90 |
| PE900×1200 | 900×1200 | 750 | 95-265 | 180-400 | 110 |
| PE1000×1200 | 1000×1200 | 850 | 95-280 | 200-420 | 132 |
| PE1200×1500 | 1200×1500 | 1000 | 160-320 | 280-700 | 180 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 400-1000 | 315 |
| PEX250×1000 | 250×1000 | 210 | 20-50 | 15-50 | 30 |
| PEX250×1200 | 250×1200 | 210 | 20-60 | 20-70 | 37 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 30-90 | 55 |
| PEX500×1500 | 500×1500 | 400 | 40-110 | 60-180 | 90 |
-Excellence in casting engineering
-Excellent material intake capacity
-Easy installation & maintenance
-High production and reduction
-Reliability, high availability
Packaging Details
1. small parts are wooden box package.
2. main engine nude packing, container, or upon customers requirement.
| Q&A |
| 1.what is the raw material do you want to process? Like: granite,limestone,pebble,etc. |
| 2.what is the capacity per hour do you need? Like:100 t/h,etc. |
| 3.what is the raw material input size? Like:400mm |
| 4.what is the output size of your product? Like:0-5mm;5-10mm,10-20mm,etc. |
| CONTACT: |
| TEL/FAX:0086-539-8701468 |
| M:0086-15092993799 |
| chinacrusher.en.made-in-china.com |
