UHMW-PE marine fender pad is a thermoplastic engineering plastic. It combines the advantages of all plastics, wear resistance, chemical corrosion, self-lubrication, resistance to low temperature, safe, non-toxic and odorless, etc .It is the highest number of existing plastic values. With the development of plastic processing technology, the application field of UHMWPE will become wider and wider.
Ultra-high molecular weight polyethylene fender pads have light weight, impact resistance, corrosion resistance, UV resistance, aging resistance, low friction coefficient, no toxicity, no pollution, no adhesion to foreign matter, absorption of shock and noise, and excellent performance. It is the best material to replace metal materials such as steel, copper and aluminum. It can effectively prevent the impact of hull and anti-shock plate, rubber fender and dock due to ultra-violet radiation and hull impact. Its impact strength is 20 times that of polyvinyl chloride, 10 times that of nylon 66, and 8 times that of polytetrafluoroethylene. It has wide applicability and can also be used as a ship anti-collision device. The reaction force is low, the surface pressure is small, and the energy absorption is reasonable; the constant shaking and pitching of the ship when berthing is strong; the installation and maintenance are convenient.
Property: | Test Method (Standard) | Ticona GUI4152 | Ticona GUI4150,4120 | Unit |
Molecular weight |
| 1.5million-4million | 1.5million-8million |
|
Density | ISO 1183-1:2012/DIN53479 | 0.92-0.98 | 0.93-0.98 | g/cm³ |
Compression strength | ISO 604:2002 | ≥30 | ≥32 | Mpa |
Tensile strength | ISO527-2:2012 | ≥20 | ≥22 | Mpa |
Elongation at break | ISO527-2:2012 | ≥280 | ≥300 | % |
Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 |
|
Notched impact strength (Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | ≥100 | kJ/m2 |
Abrasion wear index | ES-X60210-2008 | ≤30 | ≤30 | mg |
Vicat softing point | ISO306:2004 | ≥80 | ≥80 | °C |
Hardness shore-D | ISO 868:2003 | 60-65 | 61-66 | D |

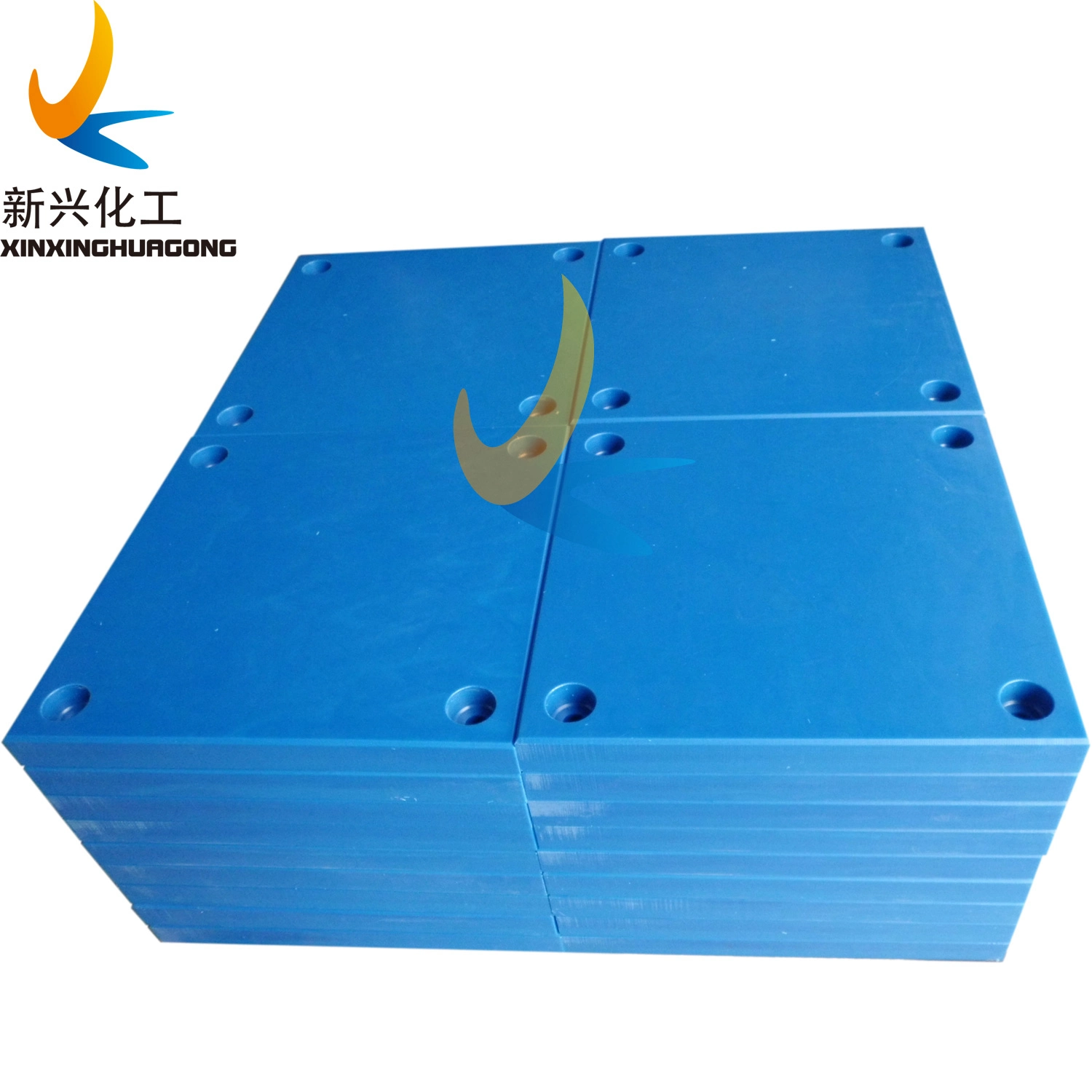

Virgin UHMW Sliding Fender Facing Pads are used in corner pad for marine fender cover/ coner marine fender pads for jetty/fender pad for marine. It combines very low friction with excellent impact strength and a wear resistance much better than steel.
UHMWPE Marine Fender Pad Characters:
1.Very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMWPE plate with advanced machine.
5.Different shaped UHMWPE plate also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant, anti-static and with other characters.
Application field-Various terminal ports
-Dock
-Shipboard Ultra-high molecular polyethylene turning board
-ultra-high molecular polyethylene corner board,
-ultra-high molecular polyethylene flat board
