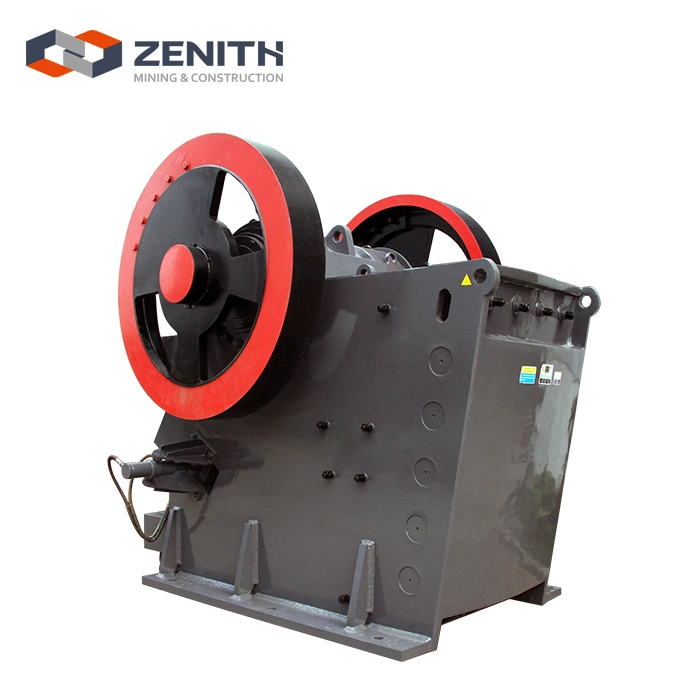

![Jaw Crusher /Rock Crusher/Stone Crusher (PE1000*1200)](https://img3.grofrom.com/boyu/0826c04516cf12f9eb96df3f1567331a.webp)
PE1000*1200 Jaw Crusher Key specification
Maximum Feed (mm):850
Adjusting Range(mm):150-265
Production Capacity(t/h):315-340
Spindle Speed(r/min):200
Motor Power(kw):132
Dimensions(Length*Wide*Height)(mm): 3480*2876*3330
Brief Introduction of Jaw Crusher /Rock Crusher/Stone Crusher(PE1000*1200)
PE series Jaw Crusher /Rock Crusher/Stone Crusher are single toggle jaw crushers.It is one of the most commonly used crushers in industrial production. They are widely applied in coarse and medium reduction of various kinds of ores and rocks with compressive strength under 350 MPa. PE series have a crushing chamber which is composed of a movable jaw, a stationary jaw and a edge plate. Driven by electric motor, via motorpully, V-belt and sheave driving eccentric shaft that make movable jaw move in accordance with pre-selected track cause crushing the material which are in the crushing chamber and setting the crushed material by the discharge gate. PE series jaw crushers have advanced features such as high reduction ratio, product size uniform, long service time, simple construction, outstanding reliability, easy maintenance, low energy consumption etc. Therefore, PE series are the top priority products as the primary crushing. They are widely applied in mining, road&railway, concrete, chemical and building material industries.
Application of Jaw Crusher /Rock Crusher/Stone Crusher(PE1000*1200):
1.widely applied in mining, road&railway, concrete, chemical and building material industries.
2.Ores and rocks with various hardness
3.Concrete basis and steel structure basis
4.Stationary, half-mobile and mobile applications
Main Advantages of Jaw Crusher /Rock Crusher/Stone Crusher(PE1000*1200):
Jaw Crusher /Rock Crusher/Stone Crusher features simple structure, excellent strength, reliable performance, easy overhaul and maintenance, and low production and construction cost.
1. Deep crushing cavity makes it easier to feed materials and yield higher output.
2. The gasket type adjusting device of the discharge gate is characterized by reliable performance, convenient use, large adjusting range, and improves the equipment flexibility.
3. The lubricating system is safe and reliable. It makes it easier to replace components and requires little maintenance.
4. A single Jaw Crusher can save 15%~30% of energy consumed and the system can save over half the energy consumed.
5. To meet different client needs, the discharge gate is designed with a large adjusting range.
Jaw Crusher /Rock Crusher/Stone Crusher technical data:
Model | Feed Opening (mm) | Max Feeding (mm) | Discharge Opening (mm) | Capacity (t/h) | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) |
PE200×350 | 200×350 | 170 | 20-50 | 2-6 | 220 | 6-7.5 | Y160M-6/7.5 | |
PE250×400 | 250×400 | 210 | 20-60 | 5-20 | 310 | 6-15 | Y180L-6/15 | 1450×1315×1296 |
PE250×750 | 250×750 | 210 | 20-60 | 8-22 | 320 | 6-30 | Y225M-6/30 | |
PE500×750 | 500×750 | 425 | 50-100 | 45-100 | 275 | 6-55 | Y280M-6/55 | 1890×1916×1870 |
PE600×900 | 600×900 | 500 | 65-160 | 70-120 | 250 | 6-75 | Y315S-6/75 | 2520×1840×2303 |
PE750×1060 | 750×1060 | 630 | 80-140 | 130-260 | 250 | 8-90 | Y315L1-8/90 | 2620×2302×3110 |
PE900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8-130 | JR127-8/130 | 3789×2826×3025 |
PE1000×1200 | 1000×1200 | 850 | 195-265 | 230-380 | 200 | 8-130 | JR127-8/130 | 3889×2826×3025 |
PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 220 | 8-200 | YR355M4-8/200 | 4930×3150×3700 |
