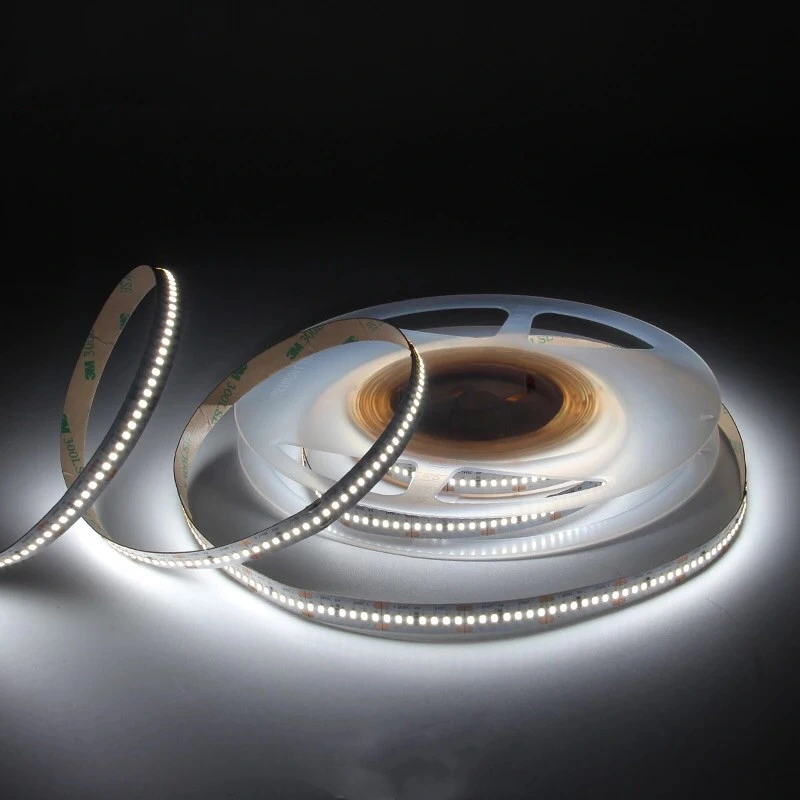

High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light
Pictures:
Description:
2216SMD Flexible Strip Light is a extreme slim flexibility strip, 4mm width PCB, 120leds 2216SMD per meter. Make the light effect is more even. It is a perfect strip for the cabinet, slim light box, super slim channel. Pure white and warm white are available.
Specification:
Detail show:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/af3a23178685dad757ef8b4ccd2df496.webp)
Advantage:
*Led Type: SMD2216
*Power: 12W/m
*Input voltage:DC24V
*Long Lifespan is more than 30,000hours.
*Copper PCB and Copper wire
Epistar chips or other brand big size chips.
* White, Color temperature as 3000K, 6500K, 10000K. Red, Yellow, Blue, Green. Pink. Purple.
* Width of the PCB is 5mm.
* led quantity: 120leds/m
* Protect degree: Indoor IP20, Outdoor IP65.
* Light instantly without warm-up.
* Decade is 5meters.
* Bent freely.
* Easy to install and preserve; with 3M self adhesive tape.
* All of materials are accord with RoHS standards.
* Package: 5meters/roll.
Application:
Color temperature:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/bb033ca202d4e4255b7757aa877b5192.webp)
Chip brand:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/636bc54d5e1e29038daff3d0381618e4.webp)
Exhibition:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/8000ad0ec318a797592456dd42356121.webp)
Installation Instruction:
4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip .
5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7.It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).
Pay attention
1. Pay attention to handling with care;
2. Don't install the product in corrosion, flammable and explosive places;
3. It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required;
4. In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving;
5. Ensure correct and reliable connection of all joints;
6. The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.
7.The LED strip and accessories can't be squeezed or folded;
8. PCB conductive parts can't be damaged when installation;
9. Installation must conform to electrical safety standard. The LED strip can only be installed by
Professionals;
Pictures:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/fe13c09d31ca67ea847e35511605899d.webp)
2216SMD Flexible Strip Light is a extreme slim flexibility strip, 4mm width PCB, 120leds 2216SMD per meter. Make the light effect is more even. It is a perfect strip for the cabinet, slim light box, super slim channel. Pure white and warm white are available.
Specification:
Item No | DV-FL-120S2216-12 |
LED Source | 2216SMD |
PCB Width | 5mm/8mm |
LED Quantity | 120LEDS |
Watt(W) | 7.2W |
Working voltage(v) | DC12V/24V |
Luminous Flux(lm) | 20-24lm/LED |
Color temperature: | 3000K±500K;4000K±500K;5000K±500K; 6000K±500K; 8000K±500K; 10000K±500K |
Cutting unit | 5cm; every 3leds cuttable |
IP rankIP20, IP65; | IP20,IP65,IP67 |
Beam Angle | 120° |
Working Temperature | -20~55ºC |
Package | 5M/Roll; 600LEDs/Roll |
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/af3a23178685dad757ef8b4ccd2df496.webp)
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/bc943676e058103362195b6e5794a54e.webp)
*Led Type: SMD2216
*Power: 12W/m
*Input voltage:DC24V
*Long Lifespan is more than 30,000hours.
*Copper PCB and Copper wire
Epistar chips or other brand big size chips.
* White, Color temperature as 3000K, 6500K, 10000K. Red, Yellow, Blue, Green. Pink. Purple.
* Width of the PCB is 5mm.
* led quantity: 120leds/m
* Protect degree: Indoor IP20, Outdoor IP65.
* Light instantly without warm-up.
* Decade is 5meters.
* Bent freely.
* Easy to install and preserve; with 3M self adhesive tape.
* All of materials are accord with RoHS standards.
* Package: 5meters/roll.
Application:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/f2893b9752411bde9056e69c04f04bc5.webp)
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/bb033ca202d4e4255b7757aa877b5192.webp)
Chip brand:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/636bc54d5e1e29038daff3d0381618e4.webp)
Exhibition:
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/8000ad0ec318a797592456dd42356121.webp)
![High Density SMD2216 DC12V 5mm LED Strips for 0809 1013 LED Linear Light](https://img3.grofrom.com/boyu/1e89d5f5715a4eacbb222fb5fee1c499.webp)
- Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully
- We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case,length can be made over 5 meters/roll.
4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip .
5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7.It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).
Pay attention
1. Pay attention to handling with care;
2. Don't install the product in corrosion, flammable and explosive places;
3. It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required;
4. In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving;
5. Ensure correct and reliable connection of all joints;
6. The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.
7.The LED strip and accessories can't be squeezed or folded;
8. PCB conductive parts can't be damaged when installation;
9. Installation must conform to electrical safety standard. The LED strip can only be installed by
Professionals;
- Ensure power supply transform operating load with transformer;
- When install on metal or conductor surface, insulation protection need to be provided to the contact area;
- Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip;
- When installation, please prevent static electricity;
- If you have any questions about this product, please consult our salesman.
