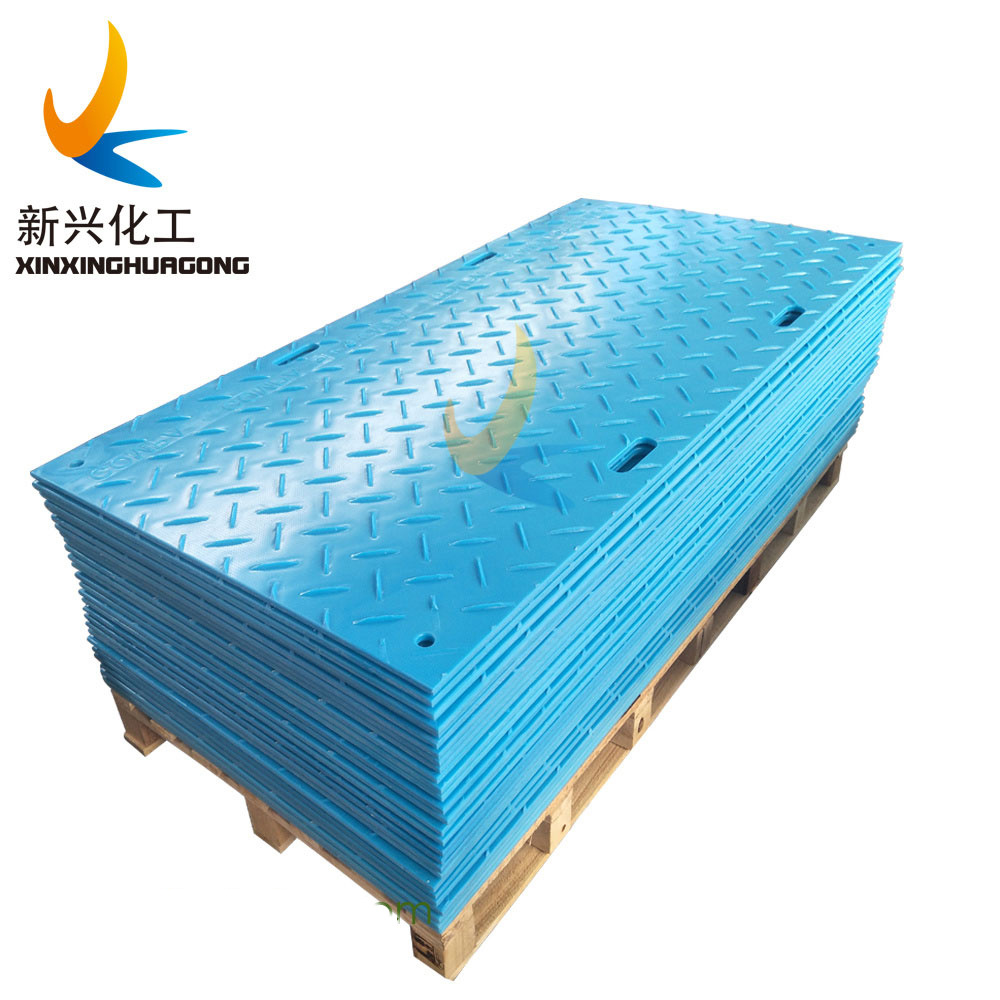

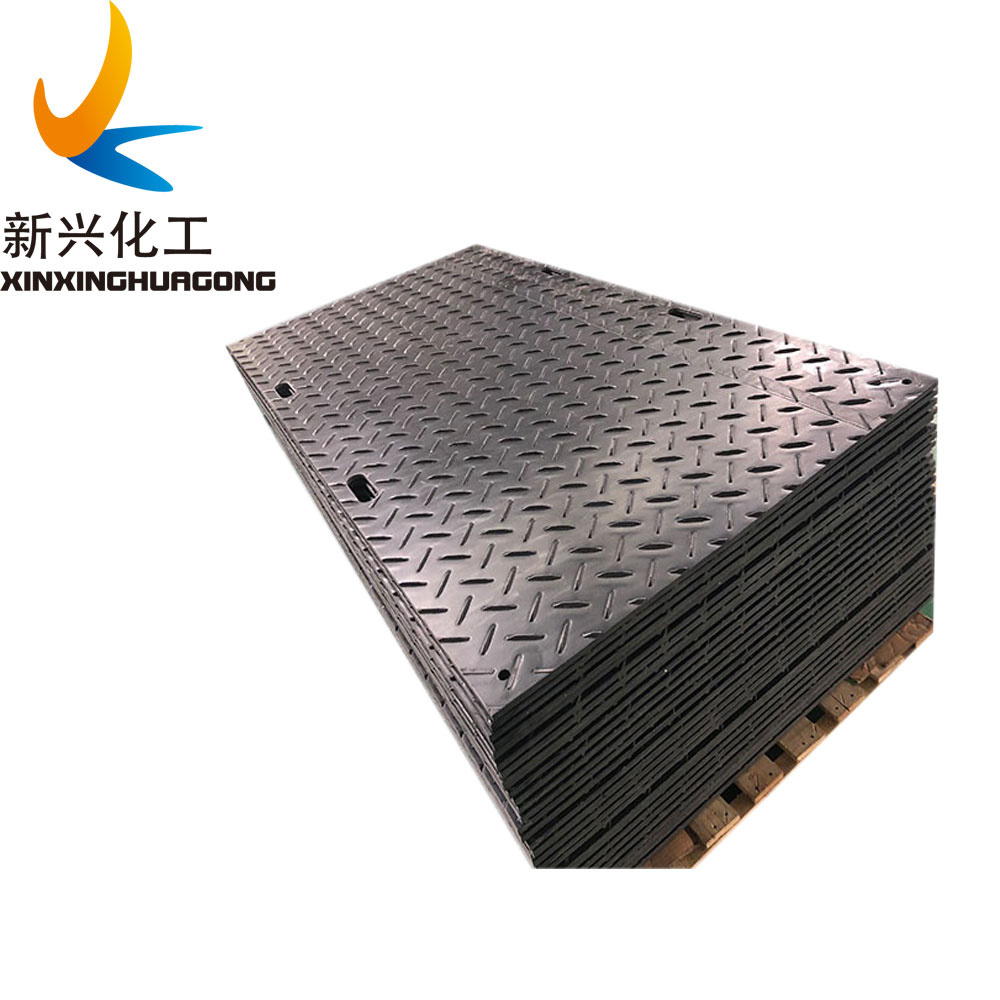

HDPE Ground Protection Plastic Mats PE Ground Sheet
Introduction
Xinxing offers a full catalog of options in composite matting. These solutions provide ground protection for any industry and any project. Unlike hardwood mats, composite mats are reusable job after job and significantly lighter in weight, reducing freight costs. Composite construction mats offer many advantages over solid timber especially for projects that require surface decking. These mats are great for heavy equipment and also construction fleet to minimize mud buildup on vehicles.
HDPE Ground Protection Plastic Mats PE Ground Sheet
Keywords
Construction road mat, mobile road mat, temporary access road mat, lightweight ground mat, track mat, bog mat, heavy duty flexible plastic temporary road mat, Alturnamats, HDPE ground access mat, UHMW mats, polyethylene ground mats, path mat, mobile ground mat, polymer composite ground mat, road rugs, turf protection ground mats, grass protection ground mat, landscaping mats, heavy duty ground mats, standard duty ground mats, light duty ground mats, amphi mats, duramats, base mats, quick mat. Polymer Road Plates, Composite Road Plate, Double-sided Road Mat, Mobile road pavements, Mobile Road Plate, ground protection mats 4 x 8 ft black, HDPE ground protection mat, plastic ground protection mat
Advantages
HDPE Ground Protection Plastic Mats PE Ground Sheet
APPLICATIONS
Engineering data of the ground mats
Surfaces types
walkway
mostly used by pedestrians temporary park routes over turf and uneven ground or dusty roads.
flat/panel
this one is plain with no grids, smooth but not slippery
NB; OUR MATS CAN BE MADE TO CUSTOMER SPECIFICATIONS
Properties of XINXING PE mats:
The above date sheet results are based on the present knowledge and our present products and are given without guarantee. Different condition may have a little difference on the properties.
COLORS SPECIFICATIONS
HOW TO INSTALL
QUICK MAT
Suitable for more general purpose situations, such as light vehicle, pedestrian walkways, marquee flooring, and general protection on grass, synthetic turf and muddy areas.
Material: virgin HDPE
Recommended thickness: 10mm, 12.7mm, 15mm, 18mm,20mm, 25mm
Color: white, black, green, blue, yellow etc.
Base mat
Ideal surface for equipment and material storage areas on construction and civil engineering sites.
Material: virgin HDPE
Color: black
Duramat
Material: composite UHMWPE
For tracked vehicle
Standard color black, but colors can be customized by order quantity.
AMPHIMAT
Interlock system quick lock and go connections
Overlapping flanges make installation fast and easy.
Hollow structures fit for any area like bog areas
Floats on water
Material: composite polyethylene
For all vehicle types
Color: black
Please contact me for more information about your interest products.
Introduction
Xinxing offers a full catalog of options in composite matting. These solutions provide ground protection for any industry and any project. Unlike hardwood mats, composite mats are reusable job after job and significantly lighter in weight, reducing freight costs. Composite construction mats offer many advantages over solid timber especially for projects that require surface decking. These mats are great for heavy equipment and also construction fleet to minimize mud buildup on vehicles.
HDPE Ground Protection Plastic Mats PE Ground Sheet
Keywords
Construction road mat, mobile road mat, temporary access road mat, lightweight ground mat, track mat, bog mat, heavy duty flexible plastic temporary road mat, Alturnamats, HDPE ground access mat, UHMW mats, polyethylene ground mats, path mat, mobile ground mat, polymer composite ground mat, road rugs, turf protection ground mats, grass protection ground mat, landscaping mats, heavy duty ground mats, standard duty ground mats, light duty ground mats, amphi mats, duramats, base mats, quick mat. Polymer Road Plates, Composite Road Plate, Double-sided Road Mat, Mobile road pavements, Mobile Road Plate, ground protection mats 4 x 8 ft black, HDPE ground protection mat, plastic ground protection mat
Advantages
- Both hollow and solid composite ground mattings are lighter weight, substantially reducing freight costs to and from the job site - and making it easier to maneuver mats during the work.
- Composite crane mats are heavy-duty, able to support construction equipment of all types, sizes and weights, with load-bearing capabilities up to 600 psi. Light-duty products are also available for superior performance for less demanding conditions.
- Composite rig mats are durable, able to hold up under extreme weather conditions, uneven and unstable terrain and in areas with poor soil composition. Durability also means a very high percentage of recovery after the job.
- Composites have excellent environmental protection characteristics. Composites do not rot, are inert and do not absorb contaminates.
- Composite access mats prevent vehicle slippage with high-traction surface patterns and tight connections between mats that hold under even the most extreme conditions.
- Composite mat systems are flexible, able to be configured for virtually any job requirement.
- No adhesion
- Light weight and easier to handle and fix
- Cost efficient;
- Resulting in low energy consumption
- .Does not rot, split or crack; 100% recyclable
- Great liner material for industrial material handling applications
- Easy Reprocessed
HDPE Ground Protection Plastic Mats PE Ground Sheet
APPLICATIONS
Turf protection
Car park
Pathways at parks or events
Construction sites
Pipeline
Temporary road
Emergency access routes
Civil engineering
Beach mats
Airports
Military mats
Marine work areas
Temporary wheelchair pathways
National Parks
LandscapingUtilities and infrastructure maintenance
Boat regattas
Cemeteries
Caravan parks
Heritages sites and eco friendly areas
Golf course and sports field maintenance Protection your turf and provide access nearly anywhere
Temporary flooring
Stadium ground covering
Contractors
Outdoor Events/ shows/ festivals
Building site access routes
Construction, civil engineering and ground work industries Emergency access routes
- HDPE Ground Protection Plastic Mats PE Ground Sheet
Engineering data of the ground mats
| Unit | HDPE | |
| Mechanical Properties | ||
| Tensile strength | MPa | 23-26 |
| Flexural strength | MPa | 25-28 |
| Flexural modulus | MPa | 1936-1967 |
| Charpy Notched Impact Strength | KJ/m² | 5-6 |
| Poisson's ratio | (theoretical) | 0.35-0.38 |
| Compression testing(max value before test terminated) | Tons | 250 |
| General Properties | ||
| Density | KG/m³ | 940-965 |
| Shrinkage | % | 2-4 |
| Water absorption | % | 0.01 |
| Thermal expansion | e-6/K | 110-130 |
| Thermal conductivity | W/mk | 0.46-0.52 |
| Specific heat | J/kg.k | 1800-2700 |
| Melting temperature | ºC | 108-134 |
| Glass temperature | ºC | -110- +110 |
| Service temperature | ºC | -30- +85 |
| Resistivity | ohm.mm²/m | 5e+17-1e+21 |
| Break down potential | kV/mm | 17.7-19.7 |
| Dielectric loss factory | 0.0005-0.0008 | |
| Friction coefficient | 0.25-0.30 | |
| Refraction index | 1.52-1.53 |
track way
mostly used by trucks, cranes and cars and other heavy automobiles.walkway
mostly used by pedestrians temporary park routes over turf and uneven ground or dusty roads.
flat/panel
this one is plain with no grids, smooth but not slippery
NB; OUR MATS CAN BE MADE TO CUSTOMER SPECIFICATIONS
Properties of XINXING PE mats:
| Factor | Value | ||
| HDPE | UHMWPE 100% RE | UHMWPE 50% RE | |
| Tensile Strength(MPa) | 22 | 25 | 28 |
| Notched Impacted Strength Kj/m2 | No break | No break | No break |
| Elongation at break (%) | >100% | >50% | >50% |
| Acids-concentrated | Good--Fair | Good-Fair | Good-Fair |
| Acids-dilute | Good | Good | Good |
| Aromatic hydrocarbons | Fair | Fair | Fair |
| Greases and Oils | Good-Fair | Good-Fair | Good-Fair |
| Halogenated Hydrocarbons | Fair-Poor | Fair-Poor | Fair-Poor |
| Halogens | Fair-Poor | Fair-Poor | Fair-Poor |
| Ketones | Good-Fair | Good-Fair | Good-Fair |
| Alcohols | Good | Good | Good |
| Alkalis | Good | Good | Good |
| Density(g/cm ) | 0.93-0.97 | 0.95-0.98 | 0.93-0.96 |
| Water absorption-over 24 hours (%) | <0.01 | <0.01 | <0.01 |
| Resistance to Ultra-violet | Fair | Fair | Fair |
| Radiation resistance | Fair | Fair | Fair |
| Dielectric constant@1MHz | 2.3-2.4 | 2.3 | 2.3 |
| Dielectric strength(KV/ mm) | 22 | 28 | 28 |
| Dissipation Factor@1MHz | 1-10*10 | 1-10*10 | 1-10*10 |
| Surface resistivity(Ohm/sq) | 10 | 10 | 10 |
| Volume resistivity(Ohm-cm) | 10 -10 | 10 | 10 |
The above date sheet results are based on the present knowledge and our present products and are given without guarantee. Different condition may have a little difference on the properties.
COLORS SPECIFICATIONS
HOW TO INSTALL
QUICK MAT
Suitable for more general purpose situations, such as light vehicle, pedestrian walkways, marquee flooring, and general protection on grass, synthetic turf and muddy areas.
| Size(mm) | Thickness with texture(mm) | weight (kg) | Effective Surface Area(sqm) | Load Capacity (ton) | Loading container |
| 2400*1200*12.7 | 22.7 | 40 | 2.88 | 40 | 320pcs in 20'GP 580pcs IN 40 'GP |
| 2440*1220*12.7 | 22.7 | 42 | 2.98 | 40 | 300pcs in 20 'GP 550PCS in 40'GP |
| 2000*1000*10 | 20 | 22.6 | 2.00 | 30 | 590pcs in 20'GP 1150pcs in 40'GP |
| 2900*1100*12.7 | 22.7 | 45 | 3.20 | 40 | 350pcs in 20'GP 580pcs in 40'GP |
| 3000*1500*15 | 25 | 74 | 4.50 | 80 | 320pcs in 40'GP |
Recommended thickness: 10mm, 12.7mm, 15mm, 18mm,20mm, 25mm
Color: white, black, green, blue, yellow etc.
Base mat
Ideal surface for equipment and material storage areas on construction and civil engineering sites.
| Item no | Size (mm) | Thickness with texture(mm) | Weight(kg) | Effective area(m2) | Loading capacity(ton) | Loading container and calculate |
| Xb01 | 5900*2000*28 | 38 | 345 | 11.8 | 120 | 76pcs in 40'HQ |
Color: black
Duramat
| Item no | Size (mm) | Thickness with texture(mm) | Weight(kg) | Effective area(m2) | Loading capacity(ton) | Loading container and calculate |
| Xp01 | 3000*2500*38 | 48 | 293 | 7.5 | 120 | 82pcs in 40'GP |
| Xp02 | 4500*2000*38 | 48 | 351 | 9.0 | 120 | 70 pcs in40GP |
For tracked vehicle
Standard color black, but colors can be customized by order quantity.
AMPHIMAT
Interlock system quick lock and go connections
Overlapping flanges make installation fast and easy.
Hollow structures fit for any area like bog areas
Floats on water
| ITEM no | Size (MM) | Thickness with texture(mm) | Weight(kg) | Effective area(M2) | Loading capacity(ton) | Loading container and calculate |
| amphimat | 5930*2130*80 | 88 | 620 | 12.0 | 120 | 42pcsin 40'HQ |
Material: composite polyethylene
For all vehicle types
Color: black
Please contact me for more information about your interest products.
