Size:
Diameter: 0.5mm-50mm (HIP Extrusion)
Standard Length: cut to length, standard length in 310/330mm
Widely used in endmills, drills, PCB drills, PCB routers etc.
Advantages of our carbide products:
1. high quality durable tungsten carbide welding rods/cemented rods for milling for router bits made from 100% virgin raw material.
2. produced with advanced equipments and process.
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.
![Gw Carbide-Solid Carbide Ground Rod with H6 Tolerance / Carbide Rod / Tungsten Carbide Rod](https://img3.grofrom.com/boyu/bf17b4fe8a54c5f0d8ae865bc4aad56b.webp)
![Gw Carbide-Solid Carbide Ground Rod with H6 Tolerance / Carbide Rod / Tungsten Carbide Rod](https://img3.grofrom.com/boyu/ffa2b55d5ccd5a7ec3139bb8d6b7e0f2.webp)
![Gw Carbide-Solid Carbide Ground Rod with H6 Tolerance / Carbide Rod / Tungsten Carbide Rod](https://img3.grofrom.com/boyu/e807dc2d56e80840407fd5338ec62afe.webp)
![Gw Carbide-Solid Carbide Ground Rod with H6 Tolerance / Carbide Rod / Tungsten Carbide Rod](https://img3.grofrom.com/boyu/7c0c2989027a3b01be0aa7f27d223ada.webp)
![Gw Carbide-Solid Carbide Ground Rod with H6 Tolerance / Carbide Rod / Tungsten Carbide Rod](https://img3.grofrom.com/boyu/9c6261f1771c3c85d1bea8f2f42b92f2.webp)
![Gw Carbide-Solid Carbide Ground Rod with H6 Tolerance / Carbide Rod / Tungsten Carbide Rod](https://img3.grofrom.com/boyu/940b534486d17dc9fc79edd9ea65358d.webp)

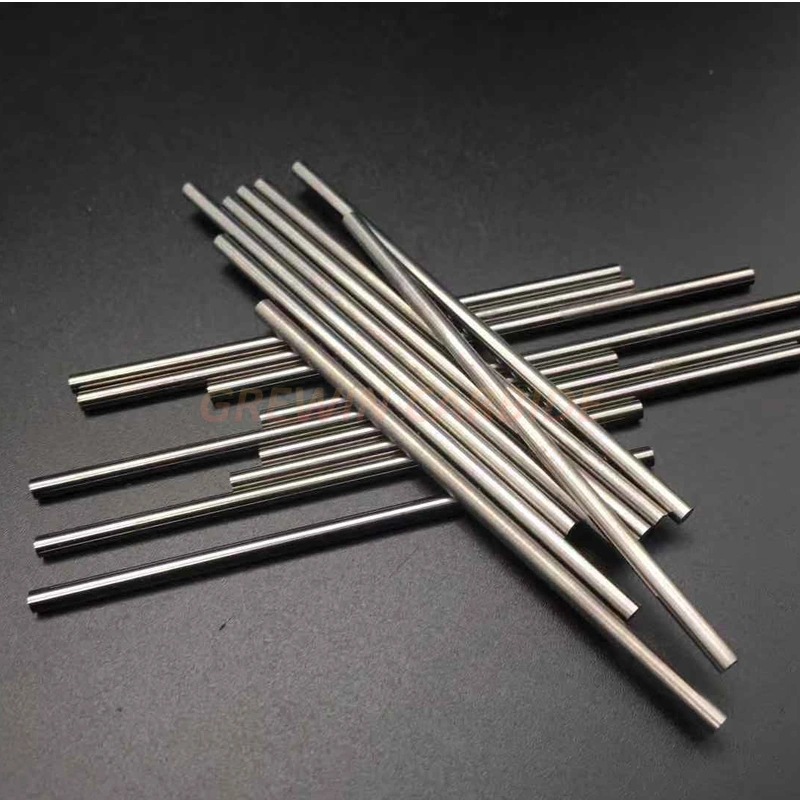

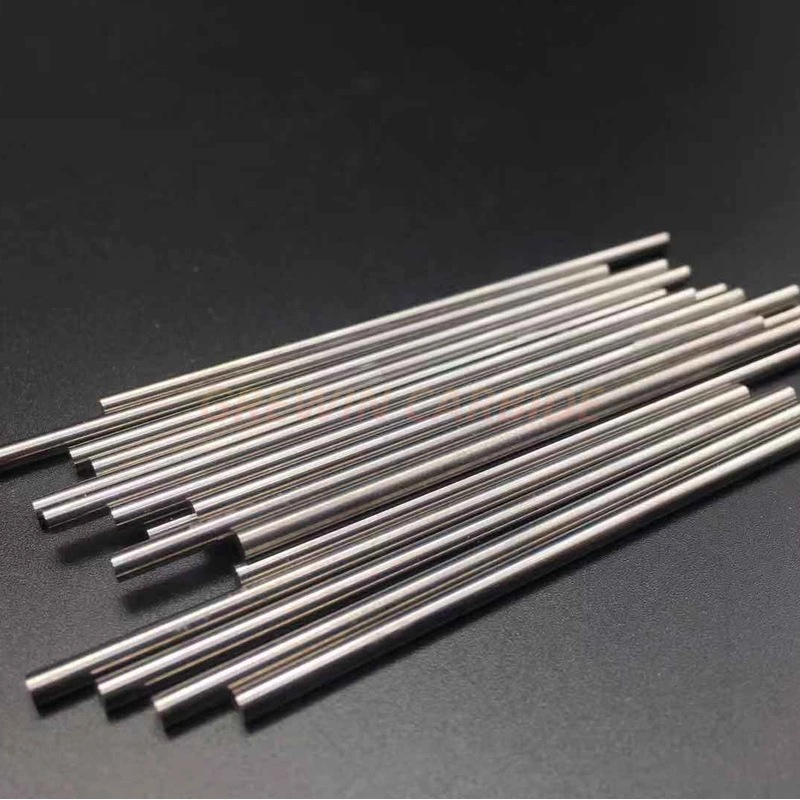

GU10/GU20 tungsten carbide rods / cemented carbide rods/ solid carbide rods with cut to length 100mm or standard length 330mm
Unground | h6 | L | Tol. | Unground | h6 | L | Tol. | ||
D | Tol. | D | Tol. | ||||||
Ø2.2 | +0.3/+0 | 2.0 | 330 | +5/+0 | Ø17.2 | +0.3/+0 | 17 | 330 | +5/+0 |
Ø3.2 | +0.3/+0 | 3.0 | 330 | +5/+0 | Ø18.2 | +0.3/+0 | 18 | 330 | +5/+0 |
Ø4.2 | +0.3/+0 | 4.0 | 330 | +5/+0 | Ø19.2 | +0.3/+0 | 19 | 330 | +5/+0 |
Ø5.2 | +0.3/+0 | 5.0 | 330 | +5/+0 | Ø20.2 | +0.3/+0 | 20 | 330 | +5/+0 |
Ø6.2 | +0.3/+0 | 6.0 | 330 | +5/+0 | Ø21.2 | +0.3/+0 | 21 | 330 | +5/+0 |
Ø7.2 | +0.3/+0 | 7.0 | 330 | +5/+0 | Ø22.2 | +0.3/+0 | 22 | 330 | +5/+0 |
Ø8.2 | +0.3/+0 | 8.0 | 330 | +5/+0 | Ø23.2 | +0.3/+0 | 23 | 330 | +5/+0 |
Ø9.2 | +0.3/+0 | 9.0 | 330 | +5/+0 | Ø24.2 | +0.3/+0 | 24 | 330 | +5/+0 |
Ø10.2 | +0.3/+0 | 10.0 | 330 | +5/+0 | Ø25.2 | +0.3/+0 | 25 | 330 | +5/+0 |
Ø11.2 | +0.3/+0 | 11.0 | 330 | +5/+0 | Ø26.2 | +0.3/+0 | 26 | 330 | +5/+0 |
Ø12.2 | +0.3/+0 | 12.0 | 330 | +5/+0 | Ø27.2 | +0.3/+0 | 27 | 330 | +5/+0 |
Ø13.2 | +0.3/+0 | 13.0 | 330 | +5/+0 | Ø28.2 | +0.3/+0 | 28 | 330 | +5/+0 |
Ø14.2 | +0.3/+0 | 14.0 | 330 | +5/+0 | Ø29.2 | +0.3/+0 | 29 | 330 | +5/+0 |
Ø15.2 | +0.3/+0 | 15.0 | 330 | +5/+0 | Ø30.2 | +0.3/+0 | 30 | 330 | +5/+0 |
Ø16.2 | +0.3/+0 | 16.0 | 330 | +5/+0 | other bigher sizes are available |
*all sizes are available, with sintered, grinding, polishing, large ready stock for immediately delivery!
* GU10 and GU 20 are the most popular and common grades, they are ready for your factric of carbide end mills and carbide drills!
* tungsten carbide rods / cemented carbide rods/ solid carbide rods are waiting for your inquiry!
Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
