Good Quality China Professional Mini Jaw Crusher PE500*750
General Introduction
The PE series jaw crushers manufactured by our company are designed for use in mines, quarries, and other industrial applications, on the base of feedback from customers both at home and abroad, assuring good reliability and high productivity. The size range of feed material (maximum compression strength 300Mpa) is from 210 to 1200 mm. They are the best choice for primary crushers.
Technical Parameters
| MODEL | FEED OPENING (MM) | CLOSE SIDE SETTING (MM) | CAPACITY (T/H) | POWER(KW) | WEIGHT(T) | |
| WIDTH | LENGTH | |||||
| PE-800*1100 | 800 | 1100 | 90-220 | 140-320 | 110-132 | 29.6 |
| PE-900*1200 | 900 | 1200 | 95-240 | 160-450 | 110-160 | 45.8 |
| PE-1200*1500 | 1200 | 1500 | 150-300 | 430-880 | 160-250 | 79.4 |
| PE-1400*1800 | 1400 | 1800 | 185-300 | 500-1100 | 250-315 | 120 |
| PE-500*750 | 500 | 750 | 50-120 | 50-150 | 55 | 11.2 |
| PE-600*900 | 600 | 900 | 75-180 | 65-190 | 75 | 17.2 |
Application
Secondary and Tertiary Crushing
Mining, Aggregate, Metallurgy, Industrial, Construction, Environmental
Working Principle
The motor transmits through belt,driving the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moves.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.

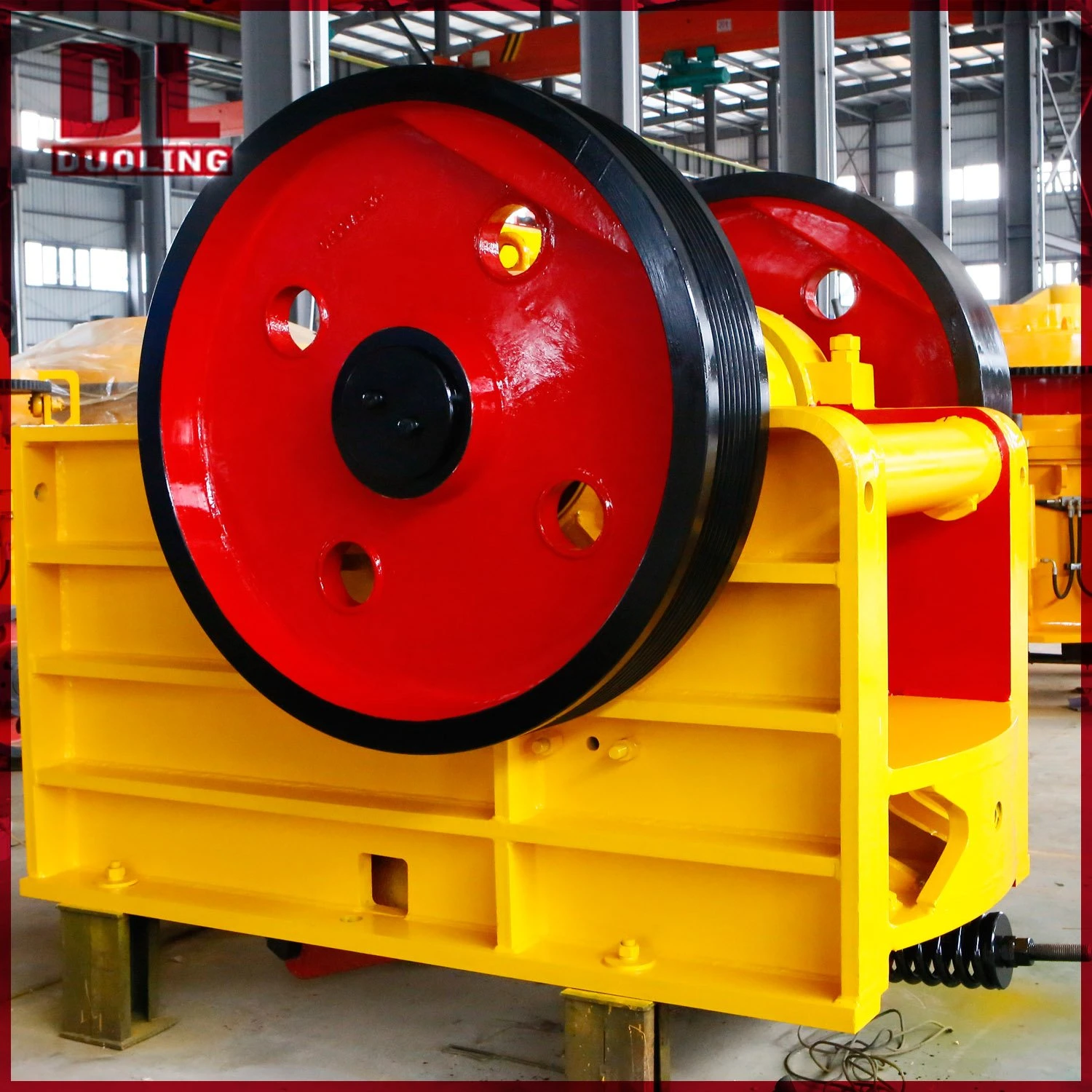

Jaw Crusher in Workshop
Spare Parts
Our Factory
Delivery
Bauma Fair
