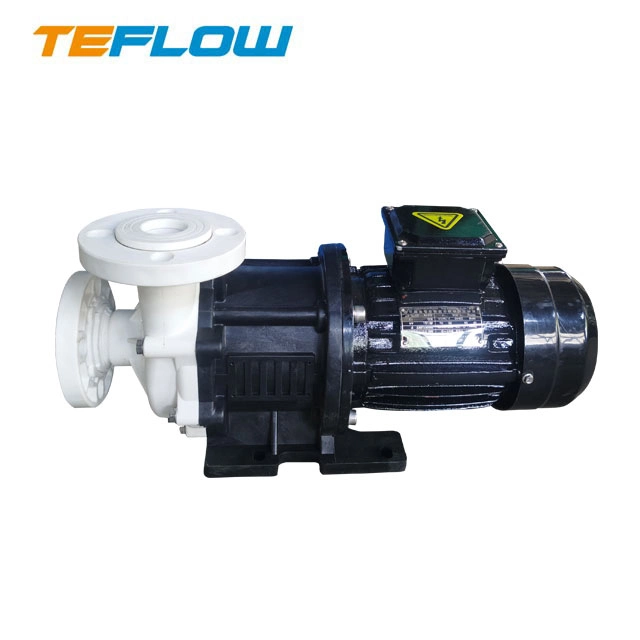

MPH FRPP Acid-Base Leakage-Free Magnetic Drive Pump
Model Type | MPH (miniature magnetic drive circulation pump) |
Flow | 9-24m3/H(150-400L/Min) |
Head | 8.5-26.5m(28 - 87feet) |
Power | 0.55-3.7kw(0.75-5hp) |
Operating temperature | 0 to 90 degree |
Medium density | Less then 1.3 |
Speed | 2900r/min, 1450r/min or as customer required |
Voltage | 220V - 500V, 50HZ-60HZ or as customer rquired |
Connection | Flange butt joint(ASME-ANSI-JIS-GB) or as customer required |
Rubber material | E-EPDM/N-NBR |
Pump housing material | F-FRPP/P-PVDF |
Brand name | TEFLOW PUMP |
Pump shaft material | Ceramic, silicon carbide-SIC |
Characteristics | 1. Magnetic drive, no shaft seal design, completely leak-proof, will not cause chemical liquid leakage, causing environmental pollution. 2. It is suitable for the transportation of all kinds of chemical acid and base medicine. 3. The suitable temperature of the pump: FPPP-75 ºC, PVDF-90 ºC, depending on the properties of the chemical solution. |
Medium | Acid-base, sulfuric acid, hydrochloric acid, chromic acid, hydrofluoric acid, nitric acid, hydrogen peroxide, sodium hydroxide, |
Application field | Electroplating, chemical industry, wastewater, waste gas, sewage treatment, etc. |
