Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine
1. Introduction about CNC fiber laser cutting machine
Stability and reliability of light path system and control system.
Imported original germany fiber lasers,high and stable function,lifespan is over 100000 hours.
Higher cutting quality and efficiency,cutting speed is up to 60m/min with appearance and beautiful cutting edge.
France high performance reducer,Taiwan gear and rack; Japanese fiji or yaskawa servo motor and driver.

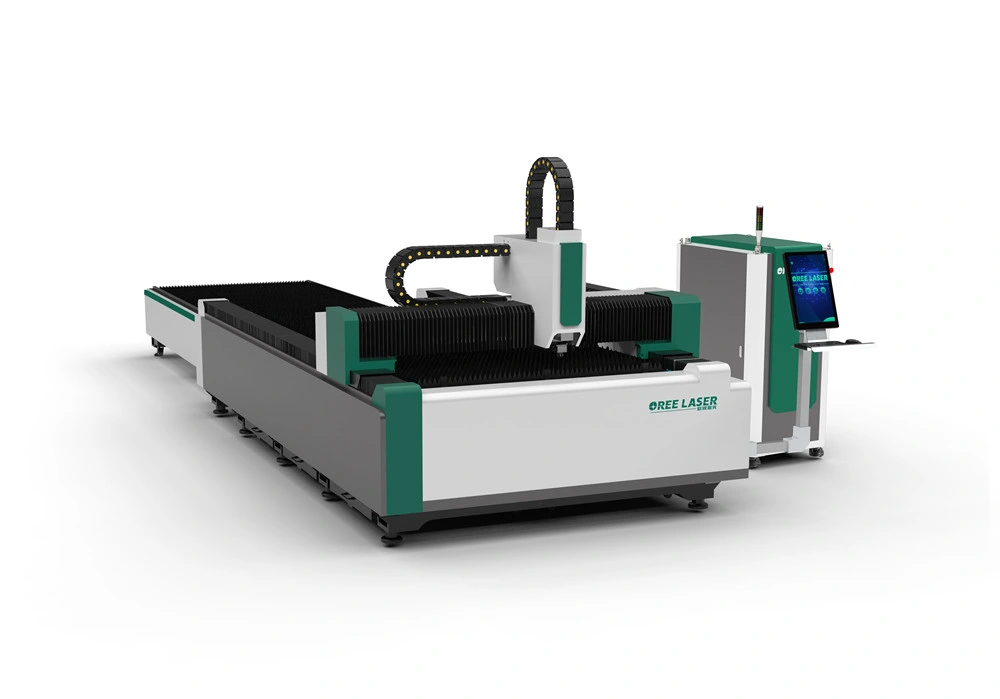

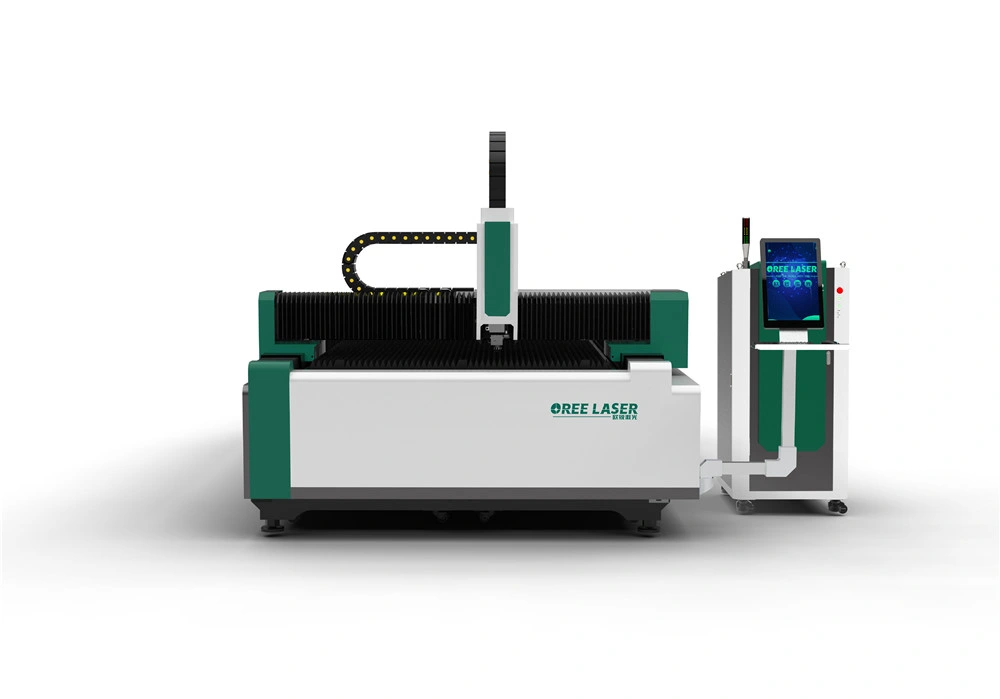

2. Photo of metal laser cutting machine
![Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine](https://img3.grofrom.com/boyu/1826b2ab0df9db43d8c6867c3023fb95.webp)
3. Parameters of fiber laser metal cutting machine:
Model | OR-3015F OR-3016F OR-2040F OR-2060F |
Working Area | 1500X3000mm 1600X3000mm 2000X4000mm 2000X6000mm |
Laser Power | 500w 1000w 1500w 2000w 3000w 4000w 6000w |
Max Moving Speed | 100m/min |
Max Cutting Speed | 100m/min |
Positioning Accuracy | 0.03mm |
Positioning Accuracy | 0.02mm |
3. Cutting sample displaying
![Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine](https://img3.grofrom.com/boyu/306c5861fd6841f7da9b4795d621eec6.webp)
![Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine](https://img3.grofrom.com/boyu/6564d3e2a38163306fdb2e2ff1fff957.webp)
4. Working environment requirement for cnc metal laser cutter:
Item | Name | Request | Note |
Power | Total installed capacity | ≥30KVA | Determined based on actual machine power |
Power | Voltage | 380±5% | Install an automatic voltage regulator and steady current device when the voltage is unstable |
Power | Grounding resistance | ≤4 ohm | |
Power | There should be no strong electromagnetic interference near the place that installs the machine. Avoid radio transmitters or relay stations around the place | ||
Cooling water | Water for cooing | MUST use purified water, deionized water or distilled water | |
Air | Oxygen, nitrogen | Purity>99.5% | Due to different processing parameters of different materials |
Air | Air compressor | Pressure≥ 2.5mpa | Due to different processing parameters of different materials |
Working environment | Foundation | Amplitude <50um, amplitude acceleration <0.05g | If there's a seismic source, it needs to be a seismic ditch. |
Working environment | Humidity | ≤80%, No dew | |
Working environment | Temperature | -5ºC-40ºC | |
Working environment | Equipment space requirements are guaranteed to be smoke-free and dust-free, avoiding dusty working environments such as metal polishing and grinding, and must be installed with anti-static floor and connecting shielded wires. |
5. Details displaying about cnc metal laser cutting machine:
![Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine](https://img3.grofrom.com/boyu/9053f7d13b06842c66a0c97b0b07d2b4.webp)
6. Packing details about Chinese fiber laser cutting machine direct supplier:
Package and Delivery are of great important part in aftersales service, we provide all-round and complete services to customer to make sure your products arrive safely without damages. For packaging.
We use wooden cases that meet international export standard
All the motion parts are lubricated and covered with firm to avoide direct air contact and thus prevent getting rust.
The whole machine and parts are well packed and fixed inside of the wooden case without moving or sliding inside.
The inner space of the wooden case will be made into vaccum to keep dry and the plywood case will be covered with waterproof cloth to stop rain drops or sea water from entering the wooden case
7. Service displaying about stainless steel laser cutting machine:
![Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine](https://img3.grofrom.com/boyu/d99e1eee5e1ede34b6fef8a124693cf7.webp)
8. Factory displaying about fiber laser cutting machine:
![Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine](https://img3.grofrom.com/boyu/b58912bad3aa3e2485350afe218c4b87.webp)
![Fiber Metal Laser Cutting Machine carbon Steel Sheet Stainless Steel Sheet Laser Cutting Machine](https://img3.grofrom.com/boyu/182728373ac4b72ce772f95c7056fc51.webp)
