EZCNC metal fiber laser cutting machine for Aluminum, Copper, Carbon Steel, Stainless Steel, Sheet metal, angled metal and pipe/tube metal cutting/engraving/processing laser cutter factory direct sale with competitive price.
1. Brief Introduction of EZCNC Fiberlaser Cutting Machines
EZLETTER Fiber Laser was combinated innovative dual ball-screw with driven nut and the latest technology. There are IPG Laser cutting head from Germany, it is the great laser hear in the work with stable working. And there are YASKAWA driving servo in the two sides, the moving speed could run quickly. It could provide perfect cutting quality, fast cutting speed, lower cutting cost and lower maintainence cost.
It is your perfect choice for cutting or processing a variety of metal plates, pipes(need to add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, copper, aluminum, steel, various alloy plate, rare metal and other materials.
2. Specification
| Model | GL1325 | GL1530 | GL2030 | GL2040 |
| Size(m*m) | 1270*2540 | 1500*3000 | 2000*3000 | 2000*4000 |
| Laser Cutting Head | WSX | |||
| Wave Length | 1070nm | |||
| Controller | Cypcut | |||
| X-dual ballscrew | √ | |||
| Servo system | YASKAWA | |||
| Max speed | 30m/min | |||
| Z clearnce | 100mm | |||
| Auto-tracking | BCS100 | |||
| Smoke exhaust zone | 2 zones | |||
| Cooling system | Industial cooling system | |||
| Positioning accuracy | 0.03nm | |||
| Weight(Ton) | 2.3T | 2.8T | 3.2T | 3.5T |
Package Sizes:
| Model Description | Iron pallet packaging Size (mm*mm*mm) |

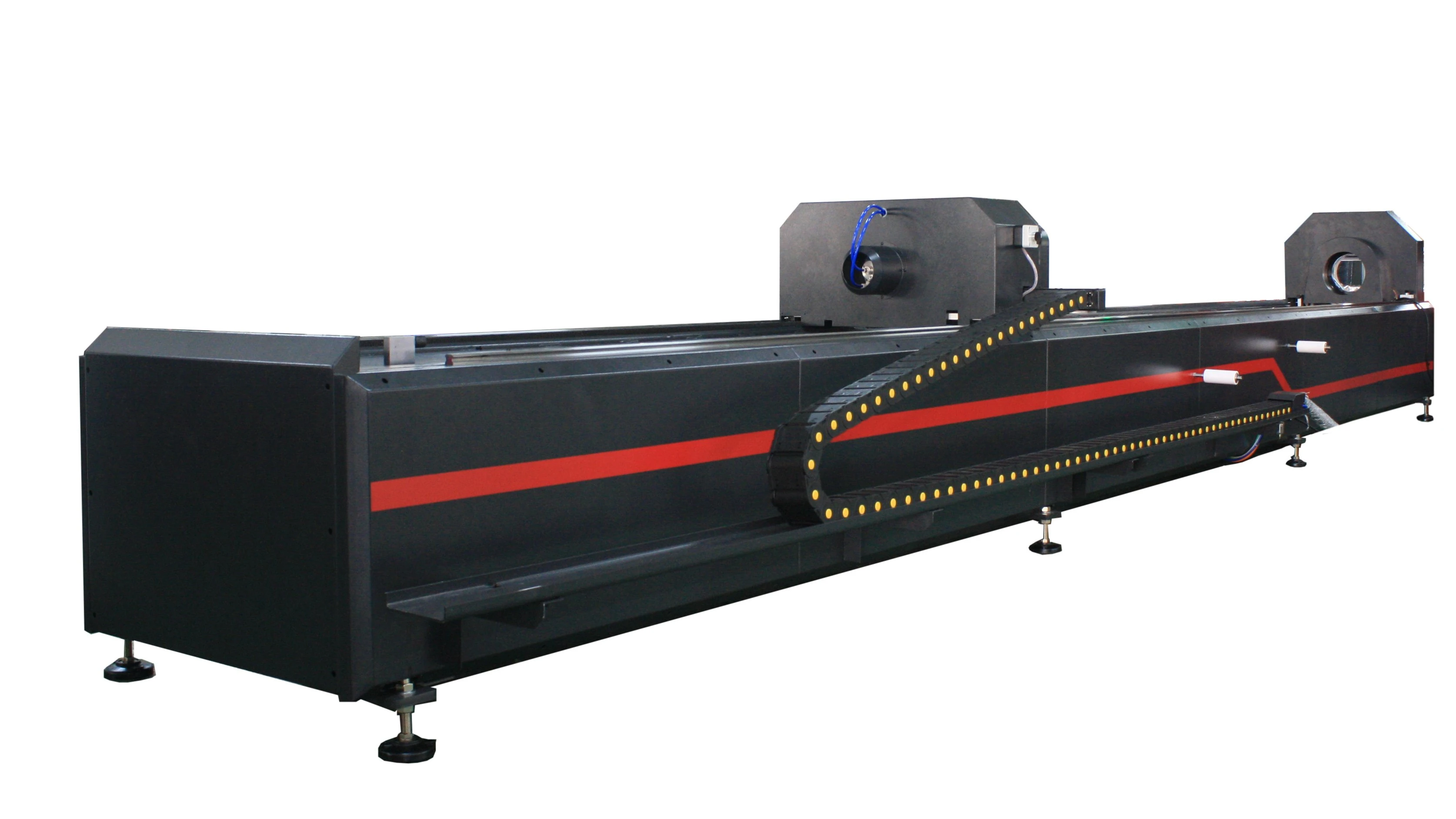

| GL1530 (With Tube-Cutting Advice) | 4480*2200*1890(18.63m³)-Basement |
| 4050*1100*1290 (5.75m³)-Cutting(Tube cutting + sheet metal) | |
| 880*610*1010 (0.59m³)-Chiller | |

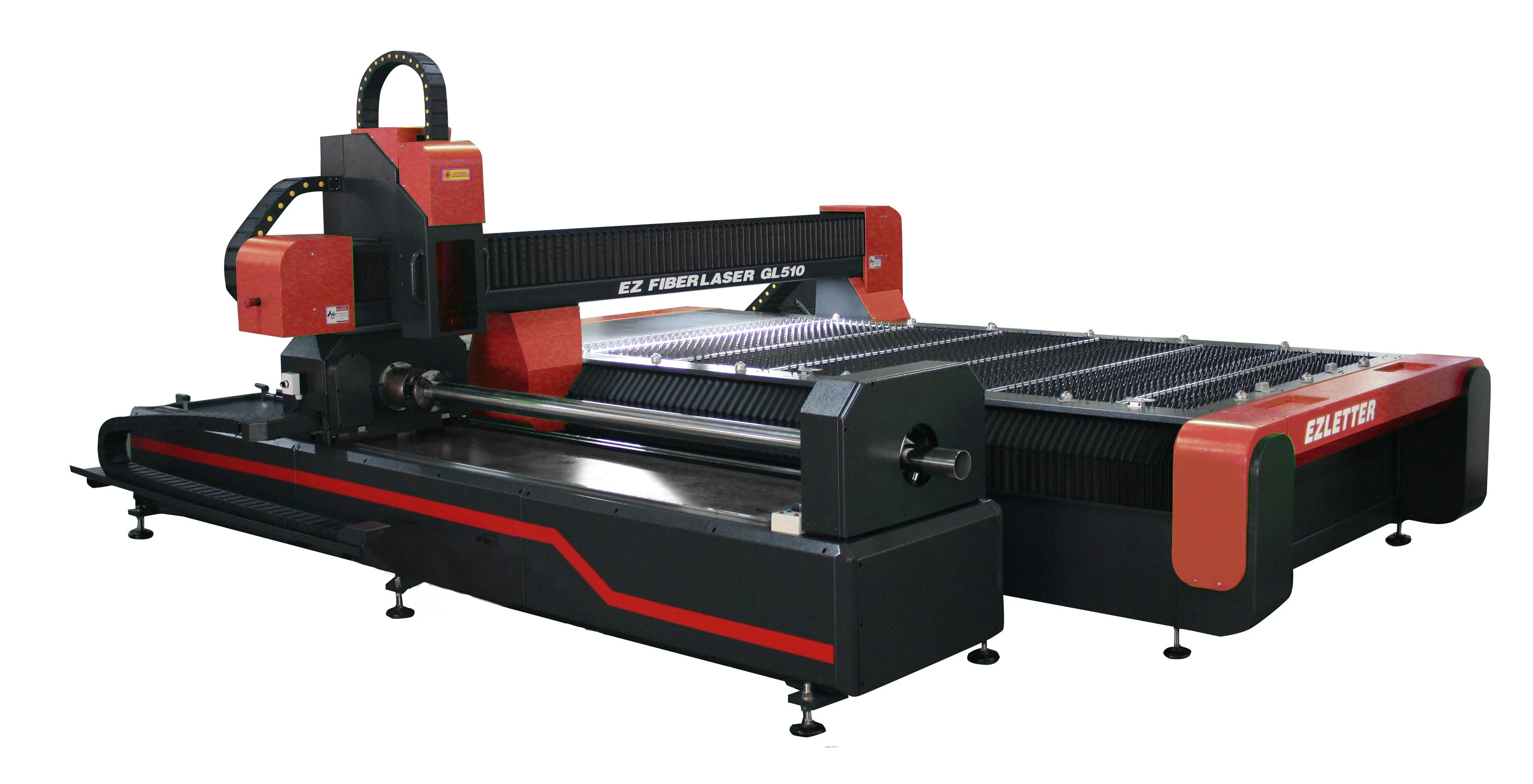

| GL1530ATC(Tube-sheet integrated machine)- (No Iron Pallet for China Domestic Customers) | 4450*2300*1900(Main) |
| 4060*800*1050(Tube-Cutting Advice) | |
| 450*630*1080(Chiller) | |
| 1000*600*1150(Electrical Cabinet) |
3. Fiberlaser Cutting Parameters Referrence List
4. Detailed Introduction
Introduction of mechanical structure
1.Gantry structure, the platform is stationary, and the Gantry frame is moved.
2.The frame is welded by rectangular tube (250X100X10mm) and finishing after stress released treatment.
3.Using ballscrews and linear guider from Taiwan PMI for all X, Y, Z axis
4.Dual X axis using dual ballscrew with drive nut.
5. Using R+W coupling direct connection technology from Germany connect servo motor and ballscrew, with this coupling, the rigidity and positioning accuracy will be very good.
6. Z axis ballscrew adopts Taiwan double support seat, ball screw Z axis on both sides using a set of back-to-back angular contact thrust ball bearing support.
7. YASKAWA servo system from Japan
8. Adopts the flexible protective cover made of imported materials. It protects the ballscrew and guider rail from the chip or damage.
Electrical parts instruction
The other parts in electrical case are YASKAWA ,ABB ,FINDER ,WAGO,SUNX,LAPP etc famous brand.
Controller system
CypCut Laser cutting system, it can read, design, output and cutting, the software can do all the process from design to cutting. It provides many laser cutting parameters, flexible layout and tool path editing capabilities. It has many functions such as leading in/out, bridging, edge, spot compensation and curve smoothing, segmentation, merging, and automatically distinguish between inside and outside module. provided with the speed of PWM real-time power regulating, progressive perforation hole explosion special process.
Auto Tracking system
1 Sampling rate is 1000 times/second.
2. the fastest following speed can reach 500 mm / sec.
3. the precision of static detection is 0.001 millimeter, and the dynamic response accuracy is 0.02 millimeter..
4. support network communication, U disk online upgrade..
5. support the collision plate alarm, plate missing alarm, effectively prevent the accidental collision of the laser head.
6. Support for edge detection and automatic finding the edge to cut, support the leapfrog lift, segmented perforation, lifting height of any set.
7. one - key calibration process is fast and easy to operate.
8. When the length of the signal transmission line is up to 100, the signal is not attenuated and the anti-interference ability is strong.
Automatic conversion gas system
The automatic transmission system of high pressure gas is used. When customers need to switch between oxygen, nitrogen or air, they only need to gently click the mouse in the operation system, NO need to change it by manual.
Platform lifting system
There are 3-5 steel rolls that can be lifted automatically on the table. When need to put the material, the rolls is raised, after the material is put on the rolls, the rolls will be put down.
Cutting Head
WSX cutting head made in China
Fiber laser unit
Laser Power according to our customers' specific requirements
Industrial cooling system
Precision stainless steel inner industry water cooler
5. Application and Perfect Samples
Applied materials and Industry:
Fiber cutting head (Metal Material):
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Fiber cutting head (Metal Industries):
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
6. Considerations for your referrence
Let me guess what you concerned before sending a inquiry
1. Why do you have to choose our machine?
GuazngZhou EZLETTER Co., Ltd has 15 years in advertisement industry, we always pursuit the quality, precision and customers satisfaction.
2. I know nothing about the machine. How could I choose a suitable machine?
First of all, thanks a lot for learning about our machines.
You are welcome to send us an inquiry with the following key information so that we could provide you most accurate proposal:
(1). What kinds of metal you have?
(2). What's the thickness and size of your incoming material?
(3). Any special request on the cutting?
3. After I got your inquiry, You will get:
(1). Full proposal for advised machine with price
(2). Relevant machine operating videos
(3). Free sample
If materials will be special, you can send us your materials by express and drawing by email; After sample making, we will send back videos by email and materials by express if necessary to you.If normal material we have, you can send us your drawing by email then we could do samples with the material or similar materials then send you the videos
7. Company Exhibition Glance
We have rich experience in machine manufacturing, exporting for nearly 15 years.
We took actively part in all the relevant well-known Exhibitions and EXPO. held around the World since foundation of 2006.
EZLetter have won a large number of Honour Certificate in the aspects of Technology Creation(Pls. see the attached pics).
Here show you a few pictures and videos of showing on exhibitions FYR:
8. EZ Honours: Patents and Certificates
Since establishment, EZLETTER has been insisting on technological innovation, pursuing perfect quality, and constantly launching new high-tech products that meet the high demands of the market. Continuously launch new products, serve global customers, and lead the international leading level of bending machines, engraving machines and laser machines in the sign industry! Provide high-tech identification equipment for global customers and strive to innovate! Therefor EZLETTER have achieved a lot of Patents and Certificates.
9. Customer visit factory
10. Technician Support and service
(1): Ezletter can send technician to the customer's country to provide the training if customer required.
(2): Customer will help Ezletter to solve the visa (available) and provide round flight tickets and Hotel and food while he stay in customer's country.
(3): The whole machine will be warranty one year.
We offer a 12 months warranty carefully, solve all customer's problem reasonably and justly.
(4): On-line Support Service
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package or Blue waterproof canvas packaging
Below: Steel or Wooden Pallet
We have rich experience in machine manufacturing, exporting for nearly 15 years.
We took actively part in all the relevant well-known Exhibitions and EXPO. held around the World since foundation of 2006.
EZLetter have won a large number of Honour Certificate in the aspects of Technology Creation(Pls. see the attached pics).
Here show you a few pictures and videos of showing on exhibitions FYR:
EZLETTER on Dubai Show 2020 https://youtu.be/UXIwuHN-1ns
EZLETTER Machines OverView https://youtu.be/B8hkd1tMq38
8. EZ Honours: Patents and Certificates
Since establishment, EZLETTER has been insisting on technological innovation, pursuing perfect quality, and constantly launching new high-tech products that meet the high demands of the market. Continuously launch new products, serve global customers, and lead the international leading level of bending machines, engraving machines and laser machines in the sign industry! Provide high-tech identification equipment for global customers and strive to innovate! Therefor EZLETTER have achieved a lot of Patents and Certificates.
9. Customer visit factory
10. Technician Support and service
(1): Ezletter can send technician to the customer's country to provide the training if customer required.
(2): Customer will help Ezletter to solve the visa (available) and provide round flight tickets and Hotel and food while he stay in customer's country.
(3): The whole machine will be warranty one year.
We offer a 12 months warranty carefully, solve all customer's problem reasonably and justly.
(4): On-line Support Service
24 hours telephone line is available for any question.
Experienced service technician team is available.
Support in hard work solution.
9. Packing & Delivery
With more than 15 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety.
Packing & shipment:Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package or Blue waterproof canvas packaging
Below: Steel or Wooden Pallet
