Excellent Chemical Resistant Borated Polyethylene Board Plastic HDPE Sheet
Borated polyethylene sheet is a product specially designed for nuclear and radiation shielding application, its neutron shield properties have been tested and certified. As same as other shielding materials, this material can produce y-ray under the action of neutron, and y-ray dose is second grade relative to shielding neutron. Borated polyethylene costs low and light-weighted, so it is the best material to replace lead to shield neutron. The boron content is from 2% to 20% by weight according to applications and customers' requirements.

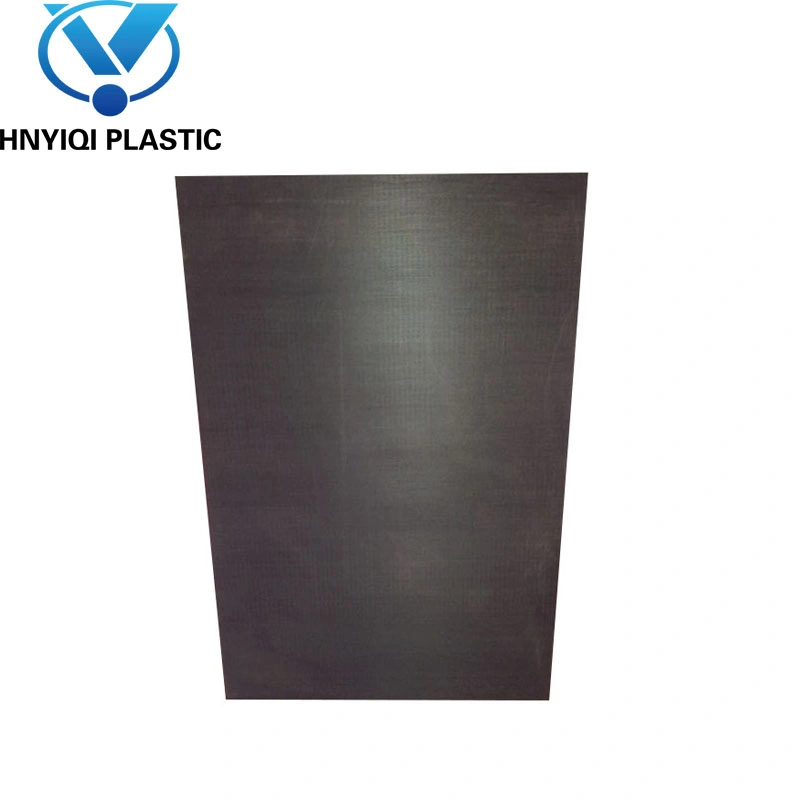

![Excellent Chemical Resistant Borated Polyethylene Board Plastic HDPE Sheet](https://img3.grofrom.com/boyu/95983764f6e514b8419b803a06b8bb24.webp)
Popular applications of high density polyethylene (5% borated) sheet:
Nuclear Reactors
Nuclear Warships
Personnel and Cargo Detection Devices
Medical Vaults
Doors for Linear Accelerators
Research Applications
X-ray Rooms
Cancer Treatment Facilities
Nuclear Power Plants
MRI Rooms
Anywhere nuclear or radiation shielding is required.
Certificate of high density polyethylene (5% borated) sheet
![Excellent Chemical Resistant Borated Polyethylene Board Plastic HDPE Sheet](https://img3.grofrom.com/boyu/a373f9c4cd3bbc39fd8d02b159f16d8f.webp)
Company Profile of Henan Yiqi Plastic
Quality-oriented, Customer supreme & Service paramount.
Henan Yiqi Plastic is engaged in manufacturing and selling plastic items over 15 years even nearly 20 years.Our main products are HDPE sheet, PE sheet, PP sheet, UHMWPE sheet, plastic cutting board, fender facing pad, synthetic ice rink, temporary road mat and other plastic parts. Manufacturing technique includes extrusion, injection and mould pressing, also undertaking welding, CNC carving such post processing and so on.
Henan Yiqi Plastic Products Co., Ltd's new office is located in Zhengzhou, the capital of Henan province. Technology R&D team keeps pursuing innovation and enriching product performance, greatly enlarging the application of our products.
Henan Yiqi Plastic products have been exported to Europe, Australia, North America, Southeast Asia, South America and other regions. Henan Yiqi Plastic looks forward to going farther with you together!
Package of high density polyethylene (5% borated) sheet
![Excellent Chemical Resistant Borated Polyethylene Board Plastic HDPE Sheet](https://img3.grofrom.com/boyu/c53ac6a133772598db0dedb54de7a1db.webp)
FAQ of high density polyethylene (5% borated) sheet
Q:Is customization available?
A: Yes, according to your detailed drawing.
Q:Can you supply sample?
A: Yes, we can arrange small block sample for free, but freight is by your side;
besides, we will return the cost after confirming order here.
Q:How many days will the samples be finsihed? and how about mass production?
A:Sample time is 3-5 days and lead time of mass production depends on the quantity;
we can finish one container within 7 working days.
Any more question, just free to let we know.
Borated polyethylene sheet is a product specially designed for nuclear and radiation shielding application, its neutron shield properties have been tested and certified. As same as other shielding materials, this material can produce y-ray under the action of neutron, and y-ray dose is second grade relative to shielding neutron. Borated polyethylene costs low and light-weighted, so it is the best material to replace lead to shield neutron. The boron content is from 2% to 20% by weight according to applications and customers' requirements.
![Excellent Chemical Resistant Borated Polyethylene Board Plastic HDPE Sheet](https://img3.grofrom.com/boyu/95983764f6e514b8419b803a06b8bb24.webp)
Popular applications of high density polyethylene (5% borated) sheet:
Nuclear Reactors
Nuclear Warships
Personnel and Cargo Detection Devices
Medical Vaults
Doors for Linear Accelerators
Research Applications
X-ray Rooms
Cancer Treatment Facilities
Nuclear Power Plants
MRI Rooms
Anywhere nuclear or radiation shielding is required.
Material Specification of High Density Polyethylene (5% Borated) Sheet | |
Product: 5% borated HDPE sheets | |
Material: 5% borated high density polyethylene(HDPE) | |
Condition: high density polyethylene (5% borated) in natural colour | |
Composition: | |
Elemental Boron | 5% by weight |
Natural Boron Isotopic Distribution | 19.6%B10&80.4%B11 |
Natural Hydrogen Isotope Distribution | 99.98% 1H1 |
Hydrogen Atom Density/cm³(approx) | 7.5X1022 |
Boron Atom Density/cm³(approx) | Boron Atom Density/cm³(approx) |
Sheets are Pigment Free | yes |
Specific Gravity | 1.01 g/cm³ |
Mechanical Properties: | |
Hardness, Shore D | 71 |
Tensile Strength Ultimate | 16.6 Mpa |
Elongation at Break | 4% |
Tensile Modulus | 0.767 Gpa |
Flexural Modulus | 0.873 Gpa |
Flexural Strength | 29.10 Mpa |
Compressive Strength | 24.50 Mpa @10%deformation |
Radiation Properties: | |
Neutron Resistance | 2.5 x 1017 n/cm² |
Gamma Resistance | 5 x 108 rad |
Thermal Properties: | |
Coefficient Linear Thermal Expansion | 198 μm/m-ºC |
Melting Point | 128ºC |
Test Reports: | |
Test reports specifying the above properties of 5% Borated HDPE for each lot of material shall be provided. | |
Quality: | |
The furnished 5% Borated HDPE sheets shall be reasonably straight and having workman like finish. The sheets shall be furnished with plain ends. All burrs at the ends shall be removed. | |
Certification: | |
Standard certificates(In English Language)mentioning all the required properties and having trace ability (through actual identification/marking)on HDPE sheets will be provided. |
Certificate of high density polyethylene (5% borated) sheet
![Excellent Chemical Resistant Borated Polyethylene Board Plastic HDPE Sheet](https://img3.grofrom.com/boyu/a373f9c4cd3bbc39fd8d02b159f16d8f.webp)
Company Profile of Henan Yiqi Plastic
Quality-oriented, Customer supreme & Service paramount.
Henan Yiqi Plastic is engaged in manufacturing and selling plastic items over 15 years even nearly 20 years.Our main products are HDPE sheet, PE sheet, PP sheet, UHMWPE sheet, plastic cutting board, fender facing pad, synthetic ice rink, temporary road mat and other plastic parts. Manufacturing technique includes extrusion, injection and mould pressing, also undertaking welding, CNC carving such post processing and so on.
Henan Yiqi Plastic Products Co., Ltd's new office is located in Zhengzhou, the capital of Henan province. Technology R&D team keeps pursuing innovation and enriching product performance, greatly enlarging the application of our products.
Henan Yiqi Plastic products have been exported to Europe, Australia, North America, Southeast Asia, South America and other regions. Henan Yiqi Plastic looks forward to going farther with you together!
Package of high density polyethylene (5% borated) sheet
![Excellent Chemical Resistant Borated Polyethylene Board Plastic HDPE Sheet](https://img3.grofrom.com/boyu/c53ac6a133772598db0dedb54de7a1db.webp)
FAQ of high density polyethylene (5% borated) sheet
Q:Is customization available?
A: Yes, according to your detailed drawing.
Q:Can you supply sample?
A: Yes, we can arrange small block sample for free, but freight is by your side;
besides, we will return the cost after confirming order here.
Q:How many days will the samples be finsihed? and how about mass production?
A:Sample time is 3-5 days and lead time of mass production depends on the quantity;
we can finish one container within 7 working days.
Any more question, just free to let we know.
