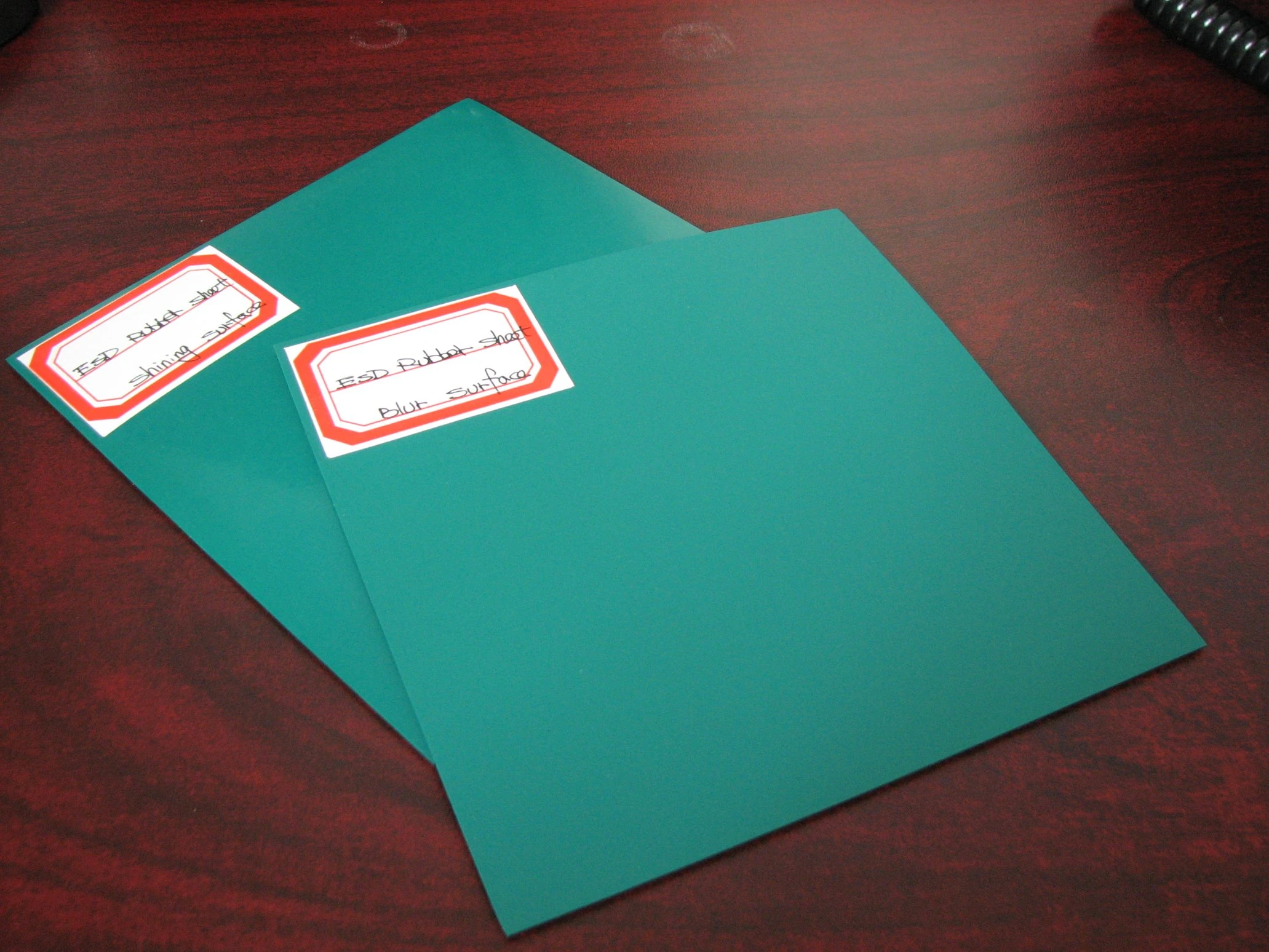

ESD Rubber Sheet, ESD Rubber Mat, Antistatic Rubber Sheet, Elongation: 300%
Physical character: Made by drum-type vulcanizing press(ROTOCURE) with high quality nitrile-butadiene rubber(NBR), special prescription and produce technology with best performance of antistatic, ESD Rubber Sheet also named antistatic rubber sheet, it is a logogram of Electro-Static Discharge(ESD) rubber sheet under moderate hardness and high tensile strength, no smell and good abrasion resistance, oil resistant and elasticity, working under the middling pressure status at the temperature of -35° C - +100° C in air. Apply for the industrial of electronic, textile, printing and dyeing and other place with same or higher request.
Specifications:
Material: 100% virgin NBR Rubber
Color: Green/black, blue/black, grey/black
Surface: Shiny/smooth or sand/smooth
Top: 10^7-10^9ohm
Bottom: 10^3-10^5ohm
Attenuation time of electrostatic pressure: 0.1S
Tensile strength: 6-8Mpa
Hardness: 65+/-5shore A
Elongation: 300%
Density: 1.4G/cm3
Working temperature: -35° C - +100° C
Thickness: 2-3mm
Width: 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2mm
Length: 10-20m
***when you enquiry, pls confirm the color, size and quantity***
