Brief Introduction

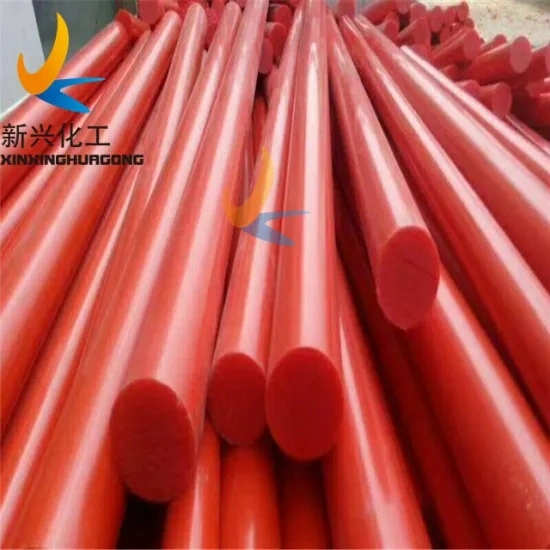

XINXING produce all kinds of UHMWPE rods icluding the round UHMWPE Rod and square UHMWPE Rod. Our UHMWPE bar can be various size according to customer requirements.
Green UHMWPE Bar, Red UHMWPE Bar, Yellow UHMWPE Bar, Black UHMWPE Bar, Blue UHMWPE Bar,etc .
All kinds of UHMWPE Bar is available with XINXING Company.
Shandong Ningjin Xinxing Chemical Co.,ltd have nearly 15 years in manufacturing the HDPE and UHMWPE products. Our factory is the biggest and our sevrice is best.
Welcome to visit sdxxhg.en.made-in-china.com to check our various UHMWPE bars and sheets.
![Customized Splendid Quality, Polyethylene Plastic Thick Rods, Plastic HDPE/UHMWPE Rods](https://img3.grofrom.com/boyu/d93ecc9c98b3c1018dcf4b79a92b9ebe.webp)
![Customized Splendid Quality, Polyethylene Plastic Thick Rods, Plastic HDPE/UHMWPE Rods](https://img3.grofrom.com/boyu/1a2926298afeac6484c2e82f5d9a3b61.webp)
![Customized Splendid Quality, Polyethylene Plastic Thick Rods, Plastic HDPE/UHMWPE Rods](https://img3.grofrom.com/boyu/dfccb7c69c2af3e14aa3a0c0f2f99333.webp)
UHMW-PE Rod Advantages:
Excellent impact resistance
High mechanical strength
Resistant to many solvents
Fantastic electrical insulator
Splendidt abrasion resistance
High damping properties
Continuous use temp. of -269 to 80 Deg. Cent.
Minimum water absorption (0.01%)
Extremely low co-efficient of friction
Chemical resistance: UHMWPE is resistant to acids, salts & salt solutions, alcohols, oils, fats, waxes & many solvents.
All PE material is affected by strong oxidizing agents such as nitric acid, chromic acid or halogens.
Aromatics and Halogenated hydrocarbons cause swelling.
HDPE/UHMWPE Rods
Technical Data Sheet
PROPERTIES | Test Method | Unit | Value |
I.Physical Properties | |||
Density | ISO 1183 | g/cm3 | 0.95~0.96 |
Water absorption 24hrs | ISO 62 | % | 0.01 |
II.Thermal Properties | |||
Heat deflection temperature - HDT/A | ISO 75-2 | ºC | 55 |
Min. service temperature | ºC | -30 | |
Max. service temperature-Long Term | ºC | 90 | |
Thermal conductivity at 23 ºC | DIN 11359 | W/(K*m) | 0.42 |
Coefficient of linear thermal expansion | ISO 11359 | 10-4*K-1 | 1.5 |
Flammability Rating(6mm thickness) | UL 94 | - | HB |
III.Mechanical Properties at 23ºC | |||
Tensile strength at yield | ISO 527-2 | MPa | 27 |
Tensile strength at break | ISO 527-2 | Mpa | 35 |
Elongation at break | ISO 527-2 | % | 700 |
Modulus of elasticity after tensile test | ISO 527-2 | MPa | 1,000 |
Modulus of elasticity after flexural test | ISO 178 | MPa | 1,000 |
Hardness - Shore D | DIN 53505 | 64 | |
Charpy impact strength | ISO 179 | kJ/m2 | N. B. |
Friction coefficient | DIN 53375 | 0.3 | |
IV.Electrical Properties at 23ºC | |||
Dielectric constant at 1 MHz | IEC 60250 | 106Hz | 2.3 |
Dielectric loss factor at 1 MHz | IEC 60250 | 106Hz | 3.1 |
Volume resistively | IEC 60093 | Ohm (Ω) * cm | >1016 |
Surface resisively | IEC 60093 | Ohm (Ω) | >1015 |
Dielectric strength | IEC 60243-1 | kV/mm | 17 |
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m |
Name | Round Solid UHMWPE Rod |
Material | PE,UHMWPE,HDPE |
Color | White,black,green,nature,blue,yellow,etc |
Diameter | 5-200mm,or customized |
Condition | In stock/Made to order |
Shape | As per your drawing |
Certification | ISO9001:2008 |
Free Sample | Available |
Shape | Sheet, rod, tube, gear, rack,pulley, guide rail, Plastics fittings,and so on |
Advantage | One stop procurement |
Packing | Plastic bags,Cartons,Wodden case,Pallet,Container,etc. |
Other | 24 hours instant and comfortable customer service. |
Shipping status notification during delivery. | |
Regular notification of new styles & hot selling styles. |
![Customized Splendid Quality, Polyethylene Plastic Thick Rods, Plastic HDPE/UHMWPE Rods](https://img3.grofrom.com/boyu/c6dbc7bd24479a544bd4ef3bb86314b5.webp)
About Shandong Ningjin Xinxing Chemical Co.,Ltd.
With the excellent experience of many years in manufacturing engineering plastics, Xinxing was established in 1989. Now, it becomes the largest and most professional manufacturer of Engineer plastics such as UHMWPE Sheets, ground protection mats, crane outrigger pads, UHMWPE fender pads, wear-resisting liners, HDPE Sheets and parts, PP sheets and parts and other engineer plastics.
Our factory covers an area of 36000 square meters which has 7 big workshops for different products and application. Xinxing is the only manufacturer that produces both extruded and pressed plastic products in China and represents the most advanced productive forces and highest quality.
Our products are widely exported to many countries all over the world such as Indonesia, Malaysia, Korea, Japan, Russia, Germany, India, England, Italy, South America, Canada, Chile, etc.
Our management creed is "Quality first, Customer first, Keeping improving". We are willing to establish a wide and continuous cooperation with enterprises home and abroad. We sincerely hope to establish business relations with you.
![Customized Splendid Quality, Polyethylene Plastic Thick Rods, Plastic HDPE/UHMWPE Rods](https://img3.grofrom.com/boyu/0d00762b18489a9c506c18db19cdbbdc.webp)
![Customized Splendid Quality, Polyethylene Plastic Thick Rods, Plastic HDPE/UHMWPE Rods](https://img3.grofrom.com/boyu/eee9e3a138570f28b125367b994c2187.webp)
We sincerely look forward to establishing business relationship with you. Please contact me if you have any other questions. I would like to help you in time.
