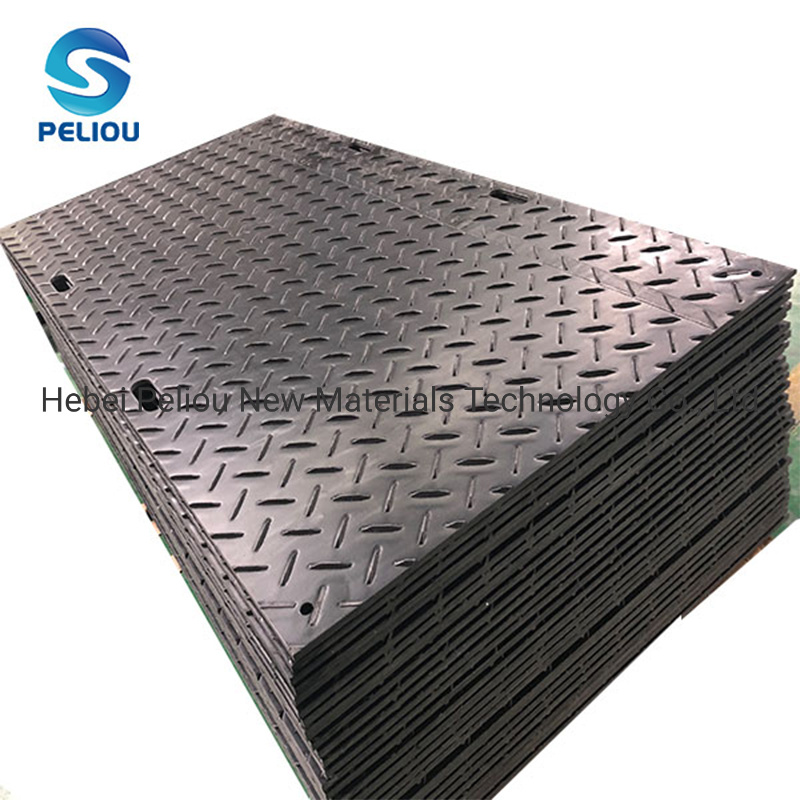

HDPE and uhmwpe Ground Mat helps to improve worksite efficiency, secure temporary roadways and keep worksite clean by putting Ground Mat on muddy ground.
They can protect turf from damage when heavy vehicles need to cross grassed areas and prevent equipment and vehicles from losing traction or sinking into soft ground
nd sand.
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/188b3abccc0b151c697b18a5c19e361f.webp)
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/9b6571fa019be8e8e21b2b4d24632351.webp)
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/478bb843f1f243fbde47da334a5ac9c9.webp)
Applications:
HDPE ground mats both protect your expensive turf and provide accesss and traction over mud, sand, snow and other difficult surfaces. HDPE ground mats may be used to create temporary roadways for all types of vehicles and equipment or large work pads for drilling, administrative compounds, bone yards, temporary flooring, and other industrial application .
For Construction 1. For temporary parking and roadways
2. Prevents mud from spreading out of construction worksites
3. Prevents vehicles from getting stuck
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/e2d9f24ea4fe93a86293f99577c06dc2.webp)
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/de7723f8cb15b732ab770a542f24ce59.webp)
For Events
1. For temporary parking in event venues
2. For temporary pedestrian walkways
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/7fcb445cebf526fec3d36a4beee9cb55.webp)
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/f891aae90a8964e0f22325f75b134957.webp)
Data Sheet
Nominal Physical Properties | ASTM | Unit | Value |
Density | D1505 | g/cm³ | 0.96 |
Melt Index | D1238 | g/10min | 0.5 |
HLMI | D1238 | g/10min | --- |
Condition A, F50(100% Igepal) | D1693 | h | >500 |
Condition B, F50(100% Igepal) | D1693 | h | --- |
Tensile Yield Strength,50mm/min | D638TypeIV | Mpa | 26 |
Elongation at Break,50mm/min | D638TypeIV | % | >300 |
Brittleness Temperature | D746 | ºC | <-40 |
Flexural Modulus, Tangent | D790 | Mpa | 950 |
Shore D Hardness | D2240 | - | 65 |
Specification:
Size for HDPE Ground mats :
- Size available
1220*2440mm(4'*8')
910*2440mm(3'*8')
610*2440mm(2'*8')
910*1830mm(3'*6')
610*1830mm(2'*6')
610*1220mm(2'*4')
1100*2440mm
1100*2900mm
1000*2440mm
1000*2900mm
- Thickness: 12.7mm, 15mm, 18mm, 20mm
- Cleat height: 7mm
- Color: Black/Dark Green (other colors available)
Pattern both sides OR smooth on one side.
Various sizes and thickness can be offered to suit your need.
Textured surface type
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/4dcbc3dce3fd9fb4a63f3f561c00e7ac.webp)
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/0c95c266bcb2bd38ff91226240cbb98a.webp)
Connection way
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/91da38a4350171b10a9304d990f66cbd.webp)
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/cd635a4cdcfe62bed3b892d25a34230f.webp)
Strong steel joiners are used to connect adjacent mats together making a secure access road or a large firm area for work, parking or storage. Steel fixing pins can be used to secure the panels in place to avoid movement or slippage.
A standard steel connector easily joins the mats together to form a temporary roadway.
Temporary Ground Protection Mats BENEFITS:
_Creats an instant roadway over virtually any type of terrain -mud, sand, marshy, uneven or soft terrain
_Protects valuable turf during landscaping projects
_Superior alternative to plywood and fiberglass-will not warp, rot, crack or delaminate
_Save time and labor getting vehicles and equipment traversed over difficult terrain
_Avoid potential injuries to workers incurred while dislodging vehicles and equipment from mud
_Protects vehicles and equipment from excessive wear and damage due to operating on unstable ground conditions
_Easily handled and laid by two men no need for expensive crane wagons
_Lay as two parallel tracks or a single roadway
_Link together with metal connectors.
_Easily cleaned due to less aggressive lug pattern
_Extremely durable to withstand vehicle weights up to 80 tons
_Tested in extremes of hot and cold climates
_Can be used hundreds of times
_Guaranteed for 7 years
_Made in China ship worldwide
Advantages:
-overlapping edges.The seepage control.
- light enough to float.
- the link structure is a latch joint
- strong composite pad, wide range of size.
- fast installation, low labor cost.
- overlapping flanges and interlocking pins provide fast, secure connections.
- long lasting life, resulting in a profitable return on investment.
- stable environment and reusable.
![Custom Molding Make HDPE Plastic Board Mats](https://img3.grofrom.com/boyu/7cd57cd2a2717674a4c60e81c22bd9cb.webp)
FAQ :
Q1: Are you a manufacturer?
A1: Yes, we have been in providing the professional products
Q2: Is customized available ?
A2: Yes, according to your detailed drawings you provide.
Q3: How to pay?
A3: T/T payment,Trade Assurance and other payment. About the payment details please feel free to contact us. Thank you!
Q4:Can you supply sample?
A4:Yes,we can supply you free small samples.
Q5:How many days will the samples be finished?And how about the mass production?
A5: Generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock. Normally within 30days or according to your order.
