Products Description

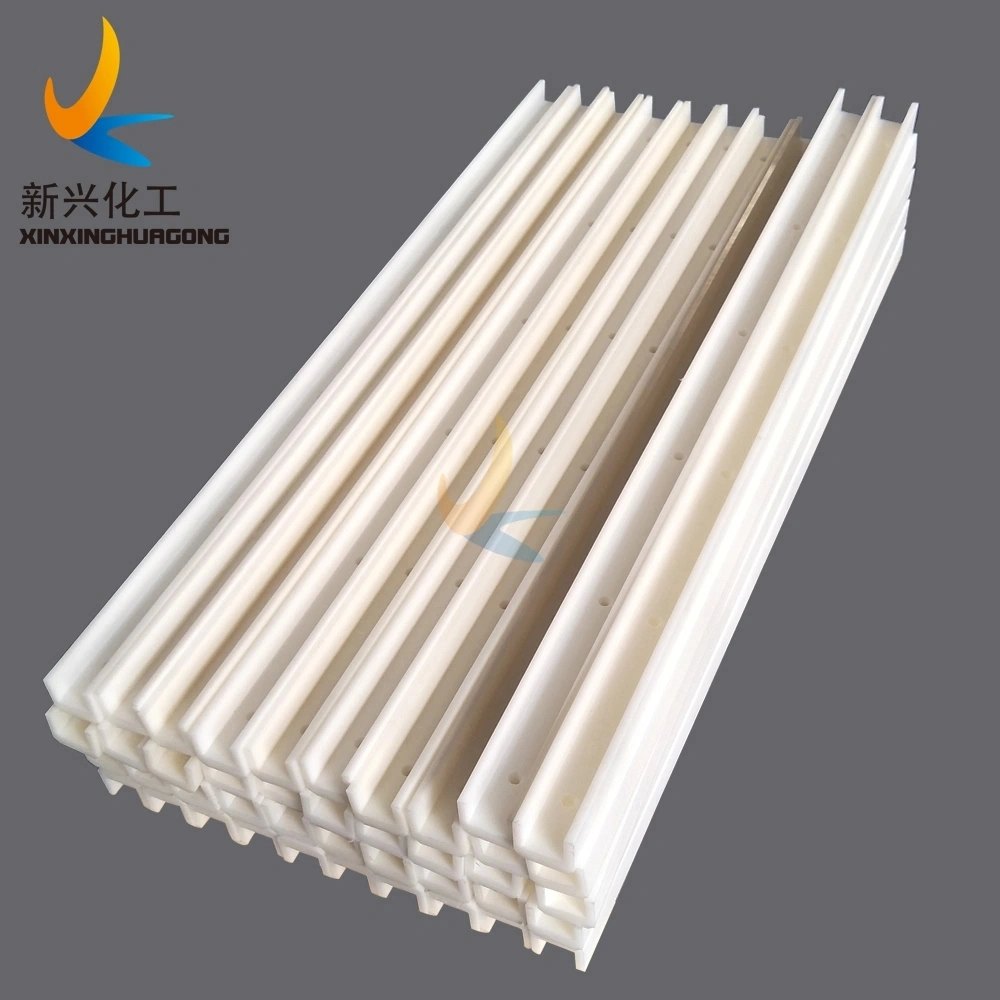

1 High quality chain guide rail in UHMWPE made by ABOSN
Guide rail was designed in response to demands from the packaging and material handling industries that require exceptional frictional and resistant properties. And it provides effective protection for expensive conveyor systems, especially in wet and corrosive environments.
We offer a wide variety of custom designed UHMW chain guide that meet client specifications. Each one of them is made-to-order utilizing WM's top of the line fabrication equipments. Those guide rails provide high abrasion, low coefficient of friction, high impact of resistance, and excellent chemical resistance. Their unique characteristics help conveying systems operate with minimal wear and extended life.
2. Advantage of UHMWPE chain guide rail :
- UHMW exhibits virtually no water absorption
- Non-Toxic
- Low coefficient of friction
- Corrosion resistant
- Abrasion and impact resistant
- Wear Resistant
- Dielectric
- Weatherproof
a. The application of UHMWPE/HDPE wear resistant parts used in some machinery :
Product name | HDPE strips |
Features | Wear resistant Lightweight Durable Corrosion & impact resistant. Great weather resistance Easy to weld but difficult to bond. |
Size | Max length:6000mm Max width:.2500mm Our company have 8 sets CNC machine to meet your any processing need. |
Color | white,black,grey,red,blue,green,yellow,etc. |
|
Application of UHMWPE wear-resisting strips and parts | |
Food machinery |
Guides, conveyor, liner panel, sliding block, bearing, star wheel... |
Mining machinery | |
Conveying machinery | |
Filling machinery | |
Marine machinery | Marine parts, wear-strips block... |
Paper machinery | Suction box cover, scraper, wear-resisting strips... |
Other machinery | Bearing, gear, braking parts... |
b. The application of UHMWPE/HDPE wear resistant parts :
- Textile Industry:
- Chemical Industry:
- Food Processing Industry:
- Paper Industry:
- Material Handling:
- Farm Implement:
- Mining & Metals Processing Industries:
- Transportation:
- Consumer Products:
- Waste Water Treatment:
- uhmwpe pipe support block for decoration
c. Key properties of UHMWPE/HDPE wear resistant parts:
- Extremely high impact strength
- Excellent wear and abrasion resistance
- Optimal sliding properties
- Dimensional stability
- Energy absorption capacity at high loading rates
- Resistance against fatigue
- Water repellent
- Good chemical resistance
- Excellent electrical and dielectric properties
- Physiologically harmless
- uhmwpe cutting spacer set, uhmwpe pipe support block, UHMWPE block/HDPE Pipe support block
3.Property data sheet of UHMWPE Plastic chain guide rail, uhmwpe corner track:
Property | Testing Method | Value |
Molecular Weight 1E6 g/mol | ASTM D6474 | 1-3 |
Density g/cm³ | ISO 1183-1 | 0.94-0.98 |
Abrasion % | ISO15527 | 100 |
Dynamic coefficient of friction | ISO8295 | ≤0.15 |
Shore hardness | ISO868 | ≥63 |
Water absorption % | ASTM D-570 | ≤0.1 |
Temperature resistance 0C |
| -200 to +80 |
Elongation at break at 23 degree % | ISO 527 | ≥200 |
Melt Temperature 0C |
| 130-140 |
4. the usage of UHMW-PE sheet
Packing&Shipping
Packaging Details: | pallet and other ways the customers request |
Delivery Detail: | 15days after received the deposit |
![CNC Milling UHMWPE Guide Rail/UHMWPE Magnetic Corner Tracks/Chain Guide Strip](https://img3.grofrom.com/boyu/9cbf413b056695d3358cc83c02818787.webp)
![CNC Milling UHMWPE Guide Rail/UHMWPE Magnetic Corner Tracks/Chain Guide Strip](https://img3.grofrom.com/boyu/15d022b45a6696aff8e93ce7feda3e67.webp)
We focus on what our customers demand and dedicate to produce satisfying productsand innovate new types
products to our customers:
- In processing of products, we strictly manager our workers to pay attention to every details, asking there is no any error in products.
- We have strict Quality Control(QC) in order to make sure that all details of products meet customers' requirement.
- Before delivery, we will be responsible for package all products perfectly in order to make sure there is no anydamage of products in transportation.
- In transportation, we will track the details of shipment and feedback to our customers timely and make sure our customers will receive the products on time.
- After receiving products, if you have any question, we will try our best to serve you. And welcome to your more orders in the future.
Our Company Information
- Mainly manufacture HDPE and UHMWPE products.
- Have rich experience in the line of engineer plastic products for long time.
- Passed the latest ISO9001:2008 quality system.
- Located in Qingdao, the third-largest port city in China.
- Convenient traffic and developed imports and exports. ce rink railing/dasher board,
- ice rink railing/dasher board, ice rink railing/dasher board, ice rink railing/dasher board
![CNC Milling UHMWPE Guide Rail/UHMWPE Magnetic Corner Tracks/Chain Guide Strip](https://img3.grofrom.com/boyu/8324279247e800bdf7cc6e72ac74a93b.webp)
![CNC Milling UHMWPE Guide Rail/UHMWPE Magnetic Corner Tracks/Chain Guide Strip](https://img3.grofrom.com/boyu/8ce5c13bd300ae3fff704633507a4416.webp)
We focus on what our customers demand and dedicate to produce satisfying productsand innovate new types
products to our customers:
- In processing of products, we strictly manager our workers to pay attention to every details, asking there is no any error in products.
- We have strict Quality Control(QC) in order to make sure that all details of products meet customers' requirement.
- Before delivery, we will be responsible for package all products perfectly in order to make sure there is no anydamage of products in transportation.
- In transportation, we will track the details of shipment and feedback to our customers timely and make sure our customers will receive the products on time.
- After receiving products, if you have any question, we will try our best to serve you. And welcome to your more orders in the future.
RFQ
1. When can I get the price?
We usually quote within 6 hours after we get your inquiry.
If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready fordelivery in 3-5 workingdays.
The samples will be sent to you via express and arrive in 3-5 days.
You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
Generally speaking, production lead time is within 2~4 weeks.
5.What is your terms of delivery?
We accept FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
6.Terms of payment?
Our usual payment is T/T, L/C. You can choose the best one according to your situation:
30% T/T deposit, 70% balance before delivery.
100% TT in advance.
